Каталог запасных частей к технике: Foton TL254 (TL1A254-001K). FT250.44B.001 SEAT ASSEMBLY

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано FL917F (2009) FL935E (2012) FL936F (FL936FH4C1B2X1A105) (2011) FL958G (2015) Foton-FL936F (2007) Foton-FL958G (2007) TB454-Q161Y20K TL254 (TL1A254-001K)

Схема > Не выбрано KM385BT-1F-1 CYLINDER BLOCK KM385BT-1F-10 COOLING SYSTEM ASSY KM385BT-1F-11 INTAKE MANIFOLD ASSY KM385BT-1F-12 EXHAUST MANIFOLD ASSY KM385BT-1F-13 LUBRICATING SYSTEM ASSY KM385BT-1F-14 FUEL SYSTEM ASSY KM385BT-1F-15 FUEL SYSTEM ASSY KM385BT-1F-2 ENGINE BLOCK ASSY (TWO) KM385BT-1F-3 ENGINE BLOCK ASSY (FREE) KM385BT-1F-4 ENGINE BLOCK ASSY (FOUR) KM385BT-1F-5 ENGINE BLOCK ASSY (FIVE) KM385BT-1F-6 CAMSHAFT ASSY KM385BT-1F-7 CYLINDER HEAD ASSY KM385BT-1F-8 PISTON CONNECTING ROD ASSEMBLY KM385BT-1F-9 CRANKSHAFT FLYWHEEL ASSEMBLY TE250.11A AIR CLEANER ASSEMBLY TE250.13B COOLING SYSTEM ASSEMBLY TE254.20-1 ENGINE CONTROL MECHANISM ASSEMLBY TE254.20-2 ENGINE CONTROL MECHANISM ASSEMLBY TE250.211 CLUTCH SUBASSEMBLY TE250.212B CLUTCH CONTROL ASSEMBLY FT250.21B.011 CLUTCH SUBASSEMBLY TE250.22 EXHAUST SYSTEM ASSEMBLY TE254.311J-1 FRONT DRIVING AXLE ASSEMBLY TL01312010000 BRACKET ASSEMBLY TE254.311J-2.1 FRONT DRIVING AXLE ASSEMBLY TE254.311J-2.2 FRONT DRIVING AXLE ASSEMBLY TE254.313G FRONT SUPPORT SEAT ASSEMBLY TE254.311J-3.1 FRONT DRIVING AXLE ASSEMBLY TE254.311J-3.2 FRONT DRIVING AXLE ASSEMBLY TE254.314G REAR SUPPORTING SEAT ASSEMBLY TE254.311J-4.1 FRONT DRIVING AXLE ASSEMBLY TE254.311J-4.2 FRONT DRIVING AXLE ASSEMBLY TE254.311J-5 FRONT DRIVING AXLE ASSEMBLY TE254.311J-6 FRONT DRIVING AXLE ASSEMBLY TE284.32F FRONT DRIVING WHEEL ASSEMBLY FT250.34F.001 REAR DRIVE WHEEL ASSEMBLY TE254.361F-1 SHUTTLE SHIFT ASSEMBLY TE250.362F SHUTTLE SHIFT CONTROL MECHANISM ASSEMBLY TE254.361F-2 SHUTTLE SHIFT ASSEMBLY FT250.37.028 RIGHT HALF SHAFT ASSEMBLY FT250.37.029 LEFT HALF SHAFT ASSEMBLY TE250.371B-1 TRANSMISSION ASSEMBLY TE250.371B-2 TRANSMISSION ASSEMBLY TE250.372B-1 TRANSMISSION REAR CENTER ASSEMBLY TE250.372B-2 TRANSMISSION REAR CENTER ASSEMBLY TE250.373B-1 TRANSMISSION CONTROL MECHANISM ASSEMBLY TE250.373B-2 TRANSMISSION CONTROL MECHANISM ASSEMBLY TE250.373B-3 TRANSMISSION CONTROL MECHANISM ASSEMB TE254.402D-1 STEERING PIPE ASSEMBLY TE254.402D-2 STEERING PIPE ASSEMBLY TE250.403B STEERING PIPE COLUMN ASSEMBLY TE250.411B PTO SHAFT ASSEMBLY TE250.412B PTO GEAR ASSEMBLY TE250.413B PTO CONTROL MECHANISM ASSEMBLY TE254.421B TRANSFER CASE ASSEMBLY TE254.422A TRANSFER CASE TRANSMISSION SHAFT ASSEMBLY TE254.423A TRANSFER CASE CONTROL ASSEMBLY FT250.43.001-2 BRAKE AND CONTROL MECHANISM FT250.43.001-1 BRAKE AND CONTROL MECHANISM FT250.44B.001 SEAT ASSEMBLY TE250.45E FLOOR INSTALLATION ASSEMBLY TE250.471D BONNET INSTALLATION ASSEMBLY TE250.472A DASHBOARD INSTALLATION ASSEMBLY TE250.475A PORTAL FRAME INSTALLATION ASSEMBLY TE250.476 PNEUMATIC SPRING INSTALLATION ASSEMBLY TE250.477 BONNET LOCK INSTALLATION ASSEMBLY TE250.481 ENGINE HARNESS INSTALLATION ASSEMBLY TE250.483 FRONT LAMP HARNESS INSTALLATION ASSEMBLY TE300.485B BATTERY INSTALLATION ASSEMBLY TE250.485C BATTERY INSTALLATION ASSEMBLY FT250.49.001 TOOL BOX INSTALLATION ASSEMBLY TE300.50E 50 FUEL TANK ASSEMBLY TE250.53B 53 TOW EQUIPMENT INSTALLATION ASSEMBLY TE250.55-1 55.1 LIFTER INSTALLATION ASSEMBLY TE250.55-2 55.2 LIFTER INSTALLATION ASSEMBLY FT250.56.001-1 SUSPENSION MECHANISM ASSEMBLY FT250.56.001-2 SUSPENSION MECHANISM ASSEMBLY FT250.57.001 DISTRIBUTOR ASSEMBLY TE250.58A HYDRAULIC OUTPUT PIPE ASSEMBLY TE254.581F 58.1 OIL PUMP PIPE ASSEMBLY TE254.582F 58.2 58.2-OIL FILTER PIPE ASSEMBLY FT250.74.001 FRONT BALLAST ASSEMBLY FT250.91B.001 REAR BALLAST ASSEMBLY TL01482090000K BODY HARNESS INSTALLATION ASSEMBLY

1

2

3

4

4

5

5

6

7

8

9

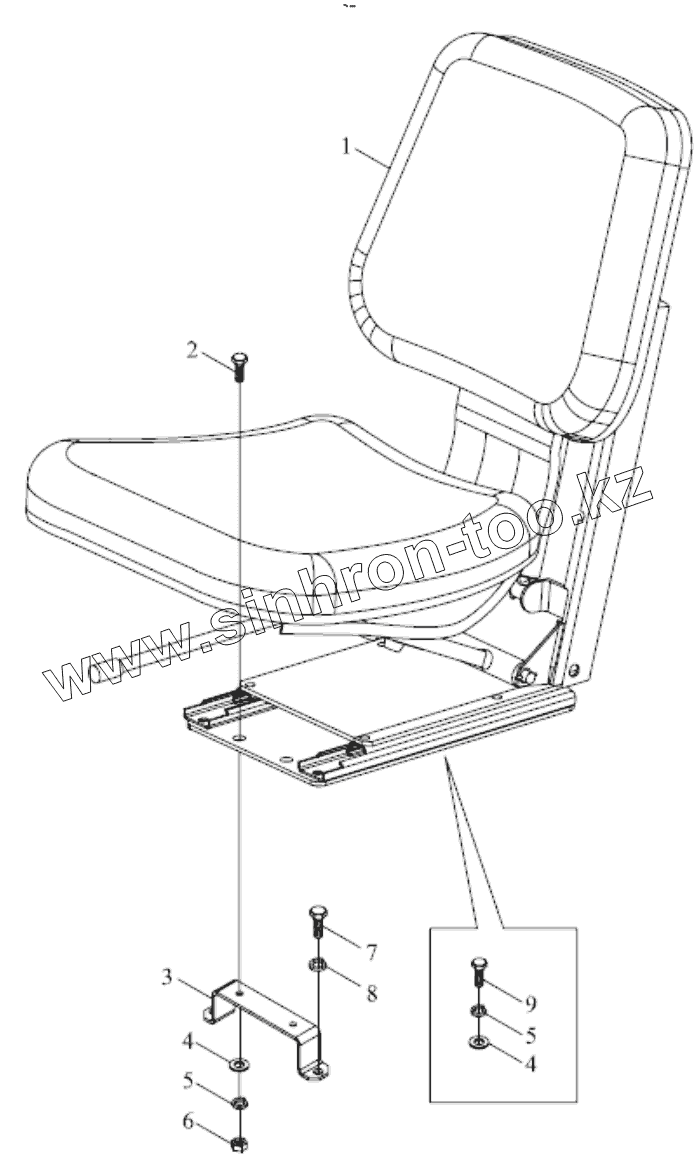

Позиция на иллюстрации	Заводской номер детали		Название детали
1	FT250.44B.010		SEAT
2	GBT5783-M8X25-Zn.D		BOLT
3	FT250.44.144		SEAT FRONT BRACKET
4	GBT97.1-8		Washer
5	GBT93-8-Zn.D		WASHER
6	GBT6170-M8-Zn.D		NUT
7	GBT5783-M10X20-Zn.D		HEXAGON BOLT
8	GBT93-10-Zn.D		WASHER
9	GBT5783-M8X20-Zn.D		Bolt

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
