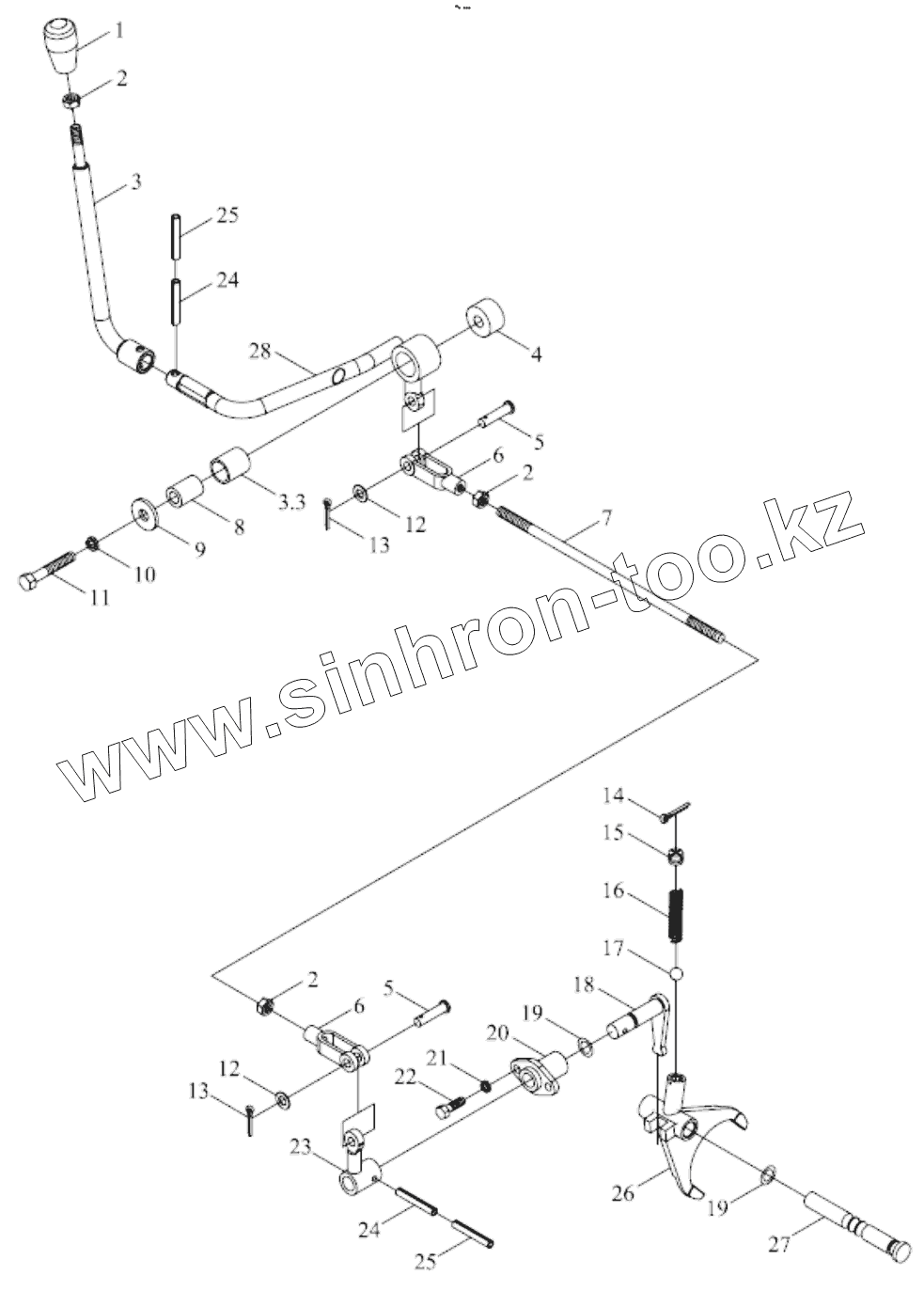

Каталог запасных частей к технике: Foton TB454-Q161Y20K. TB550.413D PTO CONTROL ASSEMBLY
1
2
2
2
3
3
4
5
5
6
6
7
8
9
10
11
12
12
13
13
14
15
16
17
18
18
19
19
19
19
19
19
20
21
22
23
24
24
25
25
26
27
28
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | FT300.41.015 | Control lever assembly, PTO | |
| 2 | GBT6170-M10-A3L | Nut | |
| 3 | TB550.413D.1 | Pto control handle lever weldment | |
| 3 | TB550.413D.1 | Pto control handle lever weldment | |
| 4 | FT300.41.128 | Spacer | |
| 5 | GBT882-B10X30 | Pin | |
| 6 | FT300.43.108 | Front fork for drawbar | |
| 7 | FT300.41E.112 | Control rod | |
| 8 | FT300.41.130 | Sleeve | |
| 9 | FT300.41.129 | Washer | |
| 10 | GBT93-12 | Washer | |
| 11 | TB550.413-02 | Bolt | |
| 12 | GBT97.1-10-A0P | Washer | |
| 13 | GBT91-3.2X16-A0P | Pin | |
| 14 | GBT91-2.5X32-A0P | Pin | |
| 15 | TB550.413-03 | Screw | |
| 16 | FT704.42B.163 | Gear fork shaft of locating spring | |
| 17 | GBT308-9.5-G100-b | Ball | |
| 18 | FT300.41E.011 | Finger lever weldment | |
| 18 | TB550.413-04 | Finger lever weldment | |
| 19 | GBT3452.1-16.0X2.65G | O-seal ring | |
| 19 | GBT3452.1-11.2X2.65G | O-seal ring | |
| 20 | FT300.41E.109 | Lever bush | |
| 21 | GBT93-8-AOP | Spring washer | |
| 22 | GBT5783-M8X20-A2L | Bolt | |
| 23 | FT300.41.012 | Gearshift lever weldment, PTO | |
| 24 | GBT879.1-6X26 | Pin | |
| 25 | GBT879.1-3.5X26 | Pin | |
| 26 | TB550.413-01a | Pto gearshift fork | |
| 27 | FT300.41C.107a | Pto fork shaft | |
| 28 | TB550.413D.2 | Pto control connecting lever assembly |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
