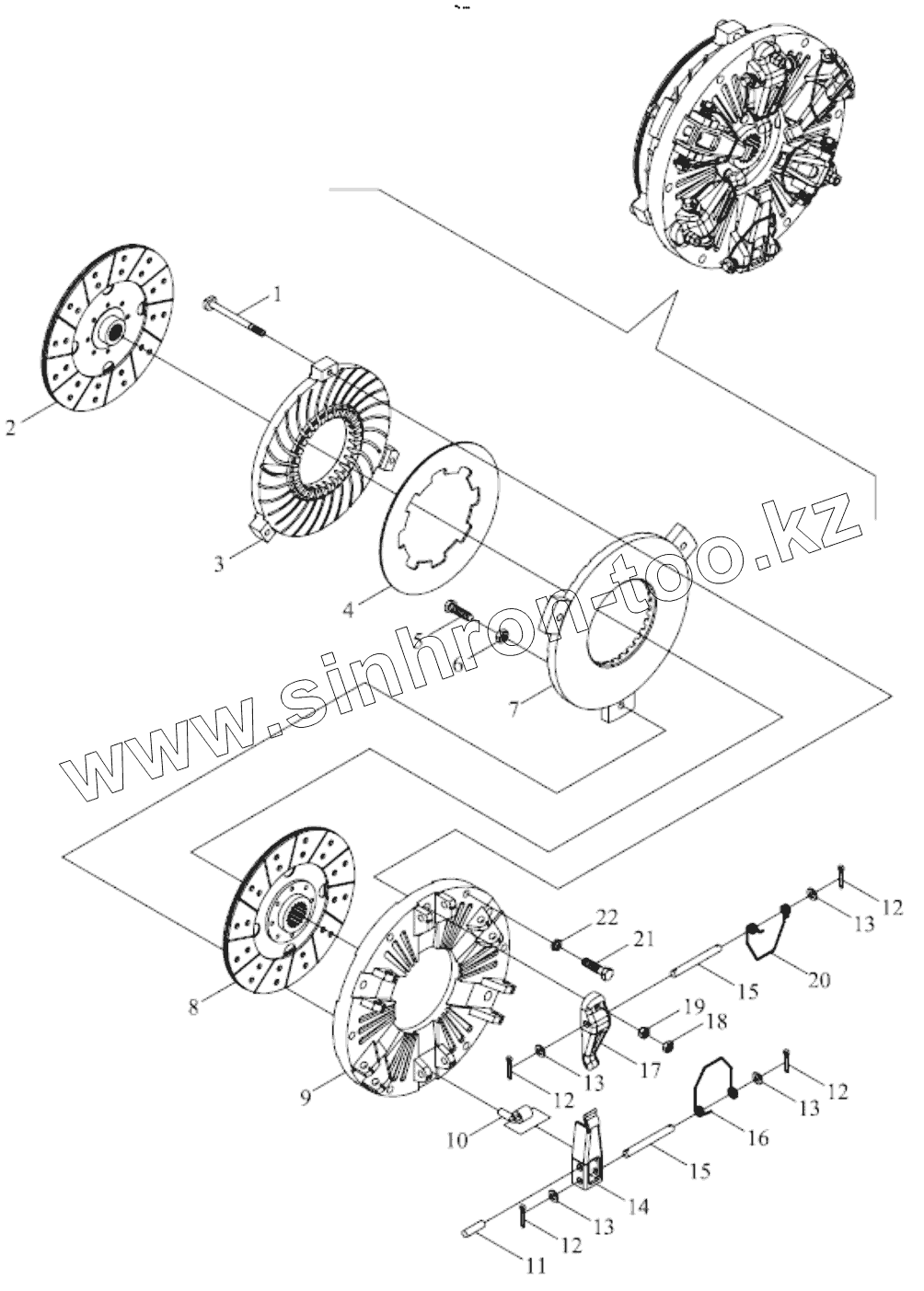

Каталог запасных частей к технике: Foton TB454-Q161Y20K. TB550.211 CLUTCH ASSEMBLY

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
3
4
5
6
7
8
8
9
10
11
12
12
12
12
13
13
13
13
14
15
15
16
17
18
19
19
20
21
22
Позиция на иллюстрации Заводской номер детали Название детали
1 FT400.21B.104 Drawbar,auxiliary clutch
2 FT400.21B.015 Wearing plate assembly,auxiliary clutch
2 FT500A.21B.015 Secondary clutch friction plate assembly
3 FT400.21B.102 Pressure plate,auxiliary clutch
4 TB550.211-01 Disc spring
5 FT300.21B.114 Adjusting screw,main clutch
6 GBT6171 Type 1 hexagon nut
7 FT400.21B.113 Pressure plate,main clutch
8 FT400.21B.014 Wearing plate assembly,main clutch
8 FT500A.21B.014 Main clutch friction plate assembly
9 FT400.21B.112 Clutch cover
10 FT400.21B.110 Spacer sleeve
11 FT300.21B.109 Clevis pin with head
12 GBT91 Split pin
13 GBT848 Small washers
14 FT400.21B.107 Release lever of main clutch
15 FT300.21B.111 Throgh pin
16 FT400.21B.108 Spring of main release lever
17 FT400.21B.106 Release lever of auxiliary clutch
18 GBT6171 Type 1 hexagon nut
19 FT300.21B.105 Ball nut
19 FT300.21B.105 Ball nut
20 FT300.21B.120 Spring of auxiliary release lever
21 GBT5783 Hexagon head bolts
22 GBT93 Standard spring washer
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
