TB454-Q161Y20K

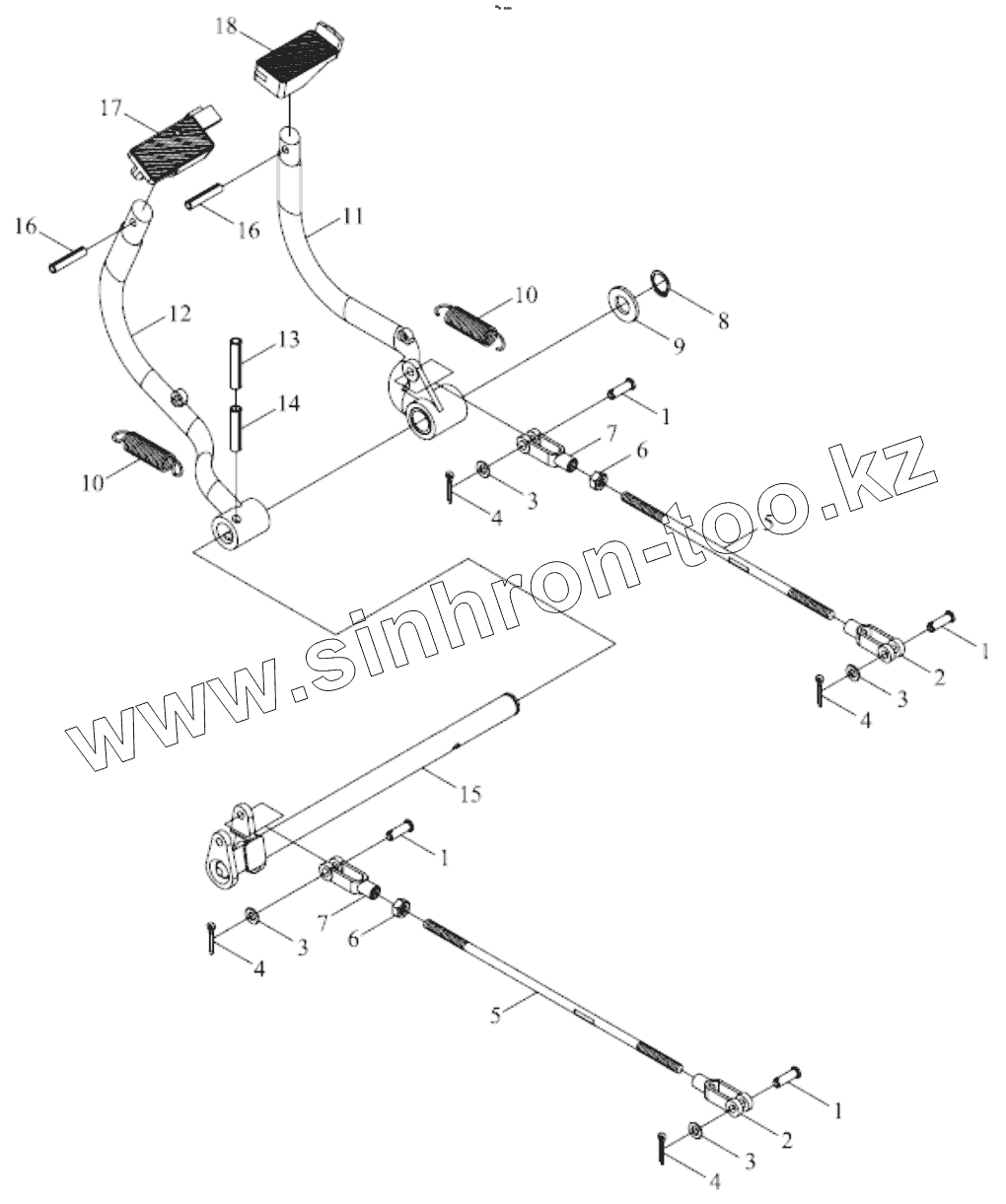

TB504.433 BRAKE CONTROL MECHANISM ASSEMBLY-1
Каталог запасных частей к технике: Foton TB454-Q161Y20K. TB504.433 BRAKE CONTROL MECHANISM ASSEMBLY-1
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
FL917F (2009)
FL935E (2012)
FL936F (FL936FH4C1B2X1A105) (2011)
FL958G (2015)
Foton-FL936F (2007)
Foton-FL958G (2007)
TB454-Q161Y20K
TL254 (TL1A254-001K)
Схема
>
Не выбрано
QC495T45-13-01 10.1 CYLINDER BLOCK
QC495T45-13-10 10.10 CYLINDER HEAD COVER ASSEMBLY
QC495T45-13-11 10.11 TIMING GEAR CASE ASSEMBLY
QC495T45-13-12 10.12 FLYWHEEL COVER ASSEMBLY
QC495T45-13-13 10.13 HIGH PRESSURE OIL PIPE ASSEMBLY
QC495T45-13-14 10.14 OIL PUMP ASSEMBLY
QC495T45-13-15 10.15 BREATH ASSEMBLY
QC495T45-13-16 10.16 OIL CIRCUIT ASSEMBLY
QC495T45-13-17 10.17 WATER PUMP AND FAN ASSEMBLY-17
QC495T45-13-18 10.18 OIL INJECTION PUMP
QC495T45-13-19 10.19 ALTERNATOR ASSY
QC495T45-13-02 10.2 TIMING GEAR ASSEMBLY-2
QC495T45-13-20 10.20 FUEL SUPPLY SYSTEM ASSEMBLY
QC495T45-13-21 10.21 FUEL INJECTOR ASSEMBLY
QC495T45-13-22 10.22 OIL FILTER ASSEMBLY
QC495T45-13-23 10.23 FUEL FILTER ASSEMBLY-23
QC495T45-13-24 10.24 STARTING MOTOR ASSEMBLY
QC495T45-13-03 10.3 CYLINDER HEAD ASSY
QC495T45-13-04 10.4 PISTONS & CONNECTING RODS
QC495T45-13-05 10.5 CRANKSHAFT FLYWHEEL ASSEMBLY
QC495T45-13-06 10.6 CAMSHAFT ASSY
QC495T45-13-07 10.7 OIL SUMP ASSEMBLY
QC495T45-13-08 10.8 EXHAUST PIPE ASSEMBLY-8
QC495T45-13-09 10.9 INTAKE PIPE ASSEMBLY-9
TB400.11 AIR CLEANER ASSEMBLY
TB500.13D COOLING SYSTEM ASSEMBLY
TB400.201F HAND THROTTLE ASSEMBLY
TB400.202B FOOT THRORRLE ASSEMBLY
TB400.203B PULL WIRE ASSEMBLY
TB550.211 CLUTCH ASSEMBLY
TB550.211 CLUTCH ASSEMBLY
TB504.212 CLUTCH CONTROL MECHANISM ASSEMBLY
TB504.311 FRONT DRIVING AXLE ASSEMBLY-1
TB504.311 FRONT DRIVING AXLE ASSEMBLY-2
TB504.311 FRONT DRIVING AXLE ASSEMBLY-3
TB504.311 FRONT DRIVING AXLE ASSEMBLY-4
TB504.311 FRONT DRIVING AXLE ASSEMBLY-5
TB504.311 FRONT DRIVING AXLE ASSEMBLY-6
TB554.312 FRONT BRACKET ASSEMBLY
FT404.32F.001 FRONT DRIVING WHEEL ASSEMBLY
FT400.34F.001 REAR DRIVE WHEEL ASSEMBLY
TB400.371A GEARBOX HOUSING ASSEMBLY
TB450.372B MAIN TRANSMISSION ASSEMBLY-1
TB450.372B MAIN TRANSMISSION ASSEMBLY-2
TB450.374C GEARBOX CONTROL MECHANISM ASSEMBLY-1
TB450.374C GEARBOX CONTROL MECHANISM ASSEMBLY-2
TB404.382B REAR AXLE CENTRAL TRANSMISSION ASSEMBLY-1
TB404.382B REAR AXLE CENTRAL TRANSMISSION ASSEMBLY-2
TB554.383A DIFFERENTIAL LOCK CONTROL MECHANISM ASSEMBLY
FT300.39.001 FINAL TRANSMISSION ASSEMBLY-1
FT300.39.001 FINAL TRANSMISSION ASSEMBLY-2
TB504.402B FULL HYDRAULIC STEERING PIPE ASSEMBLY-1
TB504.401B REDIRECTOR OR STEERING COLUMN ASSEMBLY
TB504.402B FULL HYDRAULIC STEERING PIPE ASSEMBLY-2
TB400.411D PTO GEAR ASSEMBLY
TB550.412A PTO SHAFT ASSEMBLY
TB550.413D PTO CONTROL ASSEMBLY
TB554.421C TRANSFER CASE HOUSING ASSEMBLY
TB454.422 TRANSFER CASE TRANSMISSION ASSEMBLY
TB554.423C TRANSFER CASE CONTROL ASSEMBLY
TB504.431 LEFT BRAKE ASSEMBLY
TB504.432 RIGHT BRAKE ASSEMBLY
TB504.433 BRAKE CONTROL MECHANISM ASSEMBLY-1
TB504.433 BRAKE CONTROL MECHANISM ASSEMBLY-2
TB400.44G SEAT INSTALLATION ASSEMBLY
TB550.452Y FLOOR ASSEMBLY
TB550.452U FLOOR ASSEMBLY-1
TB550.452U FLOOR ASSEMBLY-2
TB550.452U FLOOR ASSEMBLY-3
TB400.457B FRONT CONNECTING ASSEMBLY
TB400.46N SAFETY FRAME INSTALLATION ASSEMBLY
TB400B.471A BONNET ASSEMBLY
TB400B.473 BONNET LOCKING DEVICE ASSEMBLY
TB550.477E BONNET EXTENSION PLATE ASSEMBLY
TB450.481F ENGINE HARNESS INSTALLATION ASSEMBLY
TB450.482H BODY HARNESS INSTALLATION ASSEMBLY
TB450.483B FRONT LAMP HARNESS INSTALLATION ASSEMBLY
TB500.484C REAR LAMP HARNESS INSTALLATION ASSEMBLY
TB450.485A BATTERY INSTALLATION ASSEMBLY
TB400.487 COMBINED INSTRUMENT ASSEMBLY
FT300.49.001 TOOL BOX ASSEMBLY
TB400.50X FUEL TANK INSTAllation assembly
FT300.53.001 TOW EQUIPMENT ASSEMBLY
TB504.551A LIFTER INSTALLATION ASSEMBLY
TB504.551A LIFTER INSTALLATION ASSEMBLY-7-1
TB504.552C LIFTER CONTROL MECHANISM ASSEMBLY
TB504.551A-2 LIFTER INSTALLATION ASSEMBLY-7-2
TB504.551A-3 LIFTER INSTALLATION ASSEMBLY-7-3
TB504.551A-4 LIFTER INSTALLATION ASSEMBLY-4
TB504.551A-5 LIFTER INSTALLATION ASSEMBLY-5
TB504.551A-6 LIFT ASSEMBLY-6
TB504.551A-7 LIFT ASSEMBLY-7
FT500A.56B.001-1 SUSPENSION MECHANISM ASSEMBLY-1
FT500A.56B.001-2 SUSPENSION MECHANISM ASSEMBLY-2
FT454.58J.001 58 oil pump tubing assembly
TB504.582C MULTI-WAY VALVE CONTROL MECHANISM ASSEMBLY
TB504.582C-1 MULTI-WAY VALVE CONTROL MECHANISM ASSEMBLY-1
TB504.582C-2 MULTI-WAY VALVE CONTROL MECHANISM ASSEMBLY-2
TB504.582C-3 MULTI-WAY VALVE CONTROL MECHANISM ASSEMBLY-3
TB300.583A SINGLE-WAY HYDRAULIC OUTPUT ASSEMBLY 2
TA600.62ZC SAFETY BELT
FT404.74A.002 FRONT BALLAST ASSEMBLY
FT300.74B.001 FRONT BALLAST BRACKET ASSEMBLYFRONT BALLAST ASSEMBLYSAFETY BELT
TB400.91 REAR BALLAST ASSEMBLY
1
1
1
1
2
2
3
3
3
3
4
4
4
4
5
5
5
5
6
6
7
7
7
7
8
9
9
10
10
11
12
13
14
15
16
16
17
18
Позиция на иллюстрации
Заводской номер детали
Название детали
1
GBT882-B10X28-A0P
Pin
2
FT300.43.110
Rear fork for drawbar
3
GBT97.1-10-A0P
Washer
4
GBT91-3.2X16-A0P
Pin
5
FT300.43.120
Drawbar
5
TB504.433-07
Pull rod
6
GBT6170-M10-A3L
Nut
7
TA700.431A-01
Dextrorotation long hole connect fork
7
FT300.43.108
Front fork for drawbar
8
GBT894.1-25
Retainer ring
9
GBT97.1-24-A0P
Washer
9
GBT97.1-24-A0P
Washer
10
FT300.43.130
Return spring
11
TB504.433.3
Right brake pedal body unit
12
TB504.433.1
Left brake pedal unit
13
GBT879.1-6X40
Spring column pin
14
GBT879.1-10X40
Pin
15
FT300.43.020a
Pedal shaft unit
16
GBT879.1-8X30
Pin
17
TB504.433.10
Left brake pedal body weldment
18
TB504.433.3.1
Right brake pedal body weldment
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
