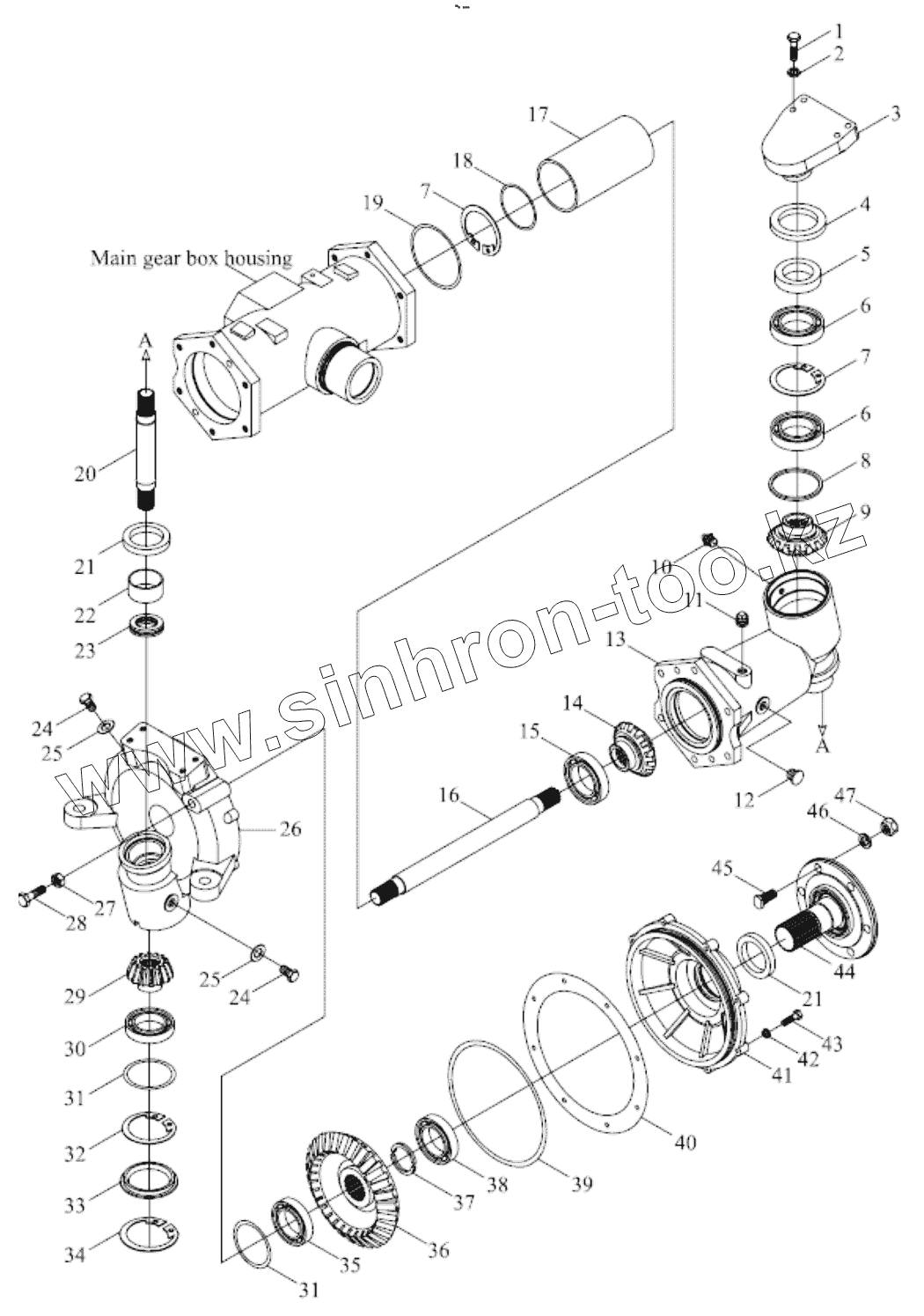

Каталог запасных частей к технике: Foton TB454-Q161Y20K. TB504.311 FRONT DRIVING AXLE ASSEMBLY-4
1
2
3
4
5
6
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
21
22
23
24
24
24
24
25
25
26
27
28
29
30
31
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| FT304.31F.011 | FT304.31F.011 | Front driving axle sub-assembly | |
| 1 | GBT5783-M12X40-10.9-A3L | Bolt | |
| 2 | GBT93-12 | Washer | |
| 3 | FT304.31F.124 | Joint cover | |
| 4 | GBT9877.1-FB80X105X12 | O ring | |
| 5 | FT304.31F.125 | Oil sealing sleeve | |
| 6 | GBT276-6013 | Bearing | |
| 7 | GBT893.1-100 | Snap ring | |
| 8 | FT304.31F.188 | Plain washer | |
| 9 | FT304.31F.122 | Gear | |
| 10 | JBT7940.1-M10X1 | Straight pressure filling oil cup | |
| 11 | GBT70-M8x25 | Screw | |
| 12 | GBT1160.2-A10 | Dipstick | |
| 13 | FT304.31F.121 | Housing of half axle | |
| 14 | FT304.31F.126 | Gear | |
| 15 | GBT276-6309 | Bearing | |
| 16 | FT304.31F.145 | Spline shaft | |
| 17 | FT304.31F.127 | Sleeve | |
| 18 | FT304.31F.123 | Adjusting shim | |
| 19 | FT304.31F.130 | Adjusting shim | |
| 20 | FT304.31F.110 | Terminal spline shaft | |
| 21 | FT304.31F | Floating oil seal | |
| 22 | FT304.31F.111 | Sleeve 55x30 | |
| 23 | GBT301-8107 | Handspike ball bearing | |
| 24 | FT304.31F.105 | Screw | |
| 24 | FT304.31F.105 | Screw | |
| 25 | FT304.31F.106 | Washer | |
| 26 | FT304.31F.146 | Terminal housing, right | |
| 27 | GBT6170-M16 | Nut | |
| 28 | QJ554.31.144B | Adjusting washer | |
| 29 | FT304.31F.112 | Terminal small gear | |
| 30 | GBT276-6308 | Bearing | |
| 31 | FT304.31F.113 | Adjusting shim | |
| 32 | GBT893.1-90 | Circlip for hole | |
| 33 | FT304.31F.022 | Sealing cover | |
| 34 | GBT893.1-102 | Snap ring | |
| 35 | GBT276-6210 | Bearing | |
| 36 | FT304.31F.108 | Terminal large gear | |
| 37 | FT304.31F.114 | Circlip | |
| 38 | GBT276-6310 | Deep groove ball bearing | |
| 39 | GBT3452.1-236X5.3G | O-seal ring | |
| 40 | FT304.31F.190 | Adjusting shim | |
| 41 | FT304.31F.107 | Terminal big cover | |
| 42 | GBT93-8 | Normal type single coil spring lock washer | |
| 43 | GBT5783-M8X35 | Bolt | |
| 44 | FT304.31F.117 | Front driving axle | |
| 45 | FT304.31F.115 | Knurled bolt | |
| 46 | FT304.31F.205 | Washer | |
| 47 | GBT6176-M14X1.5 | Nut |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
