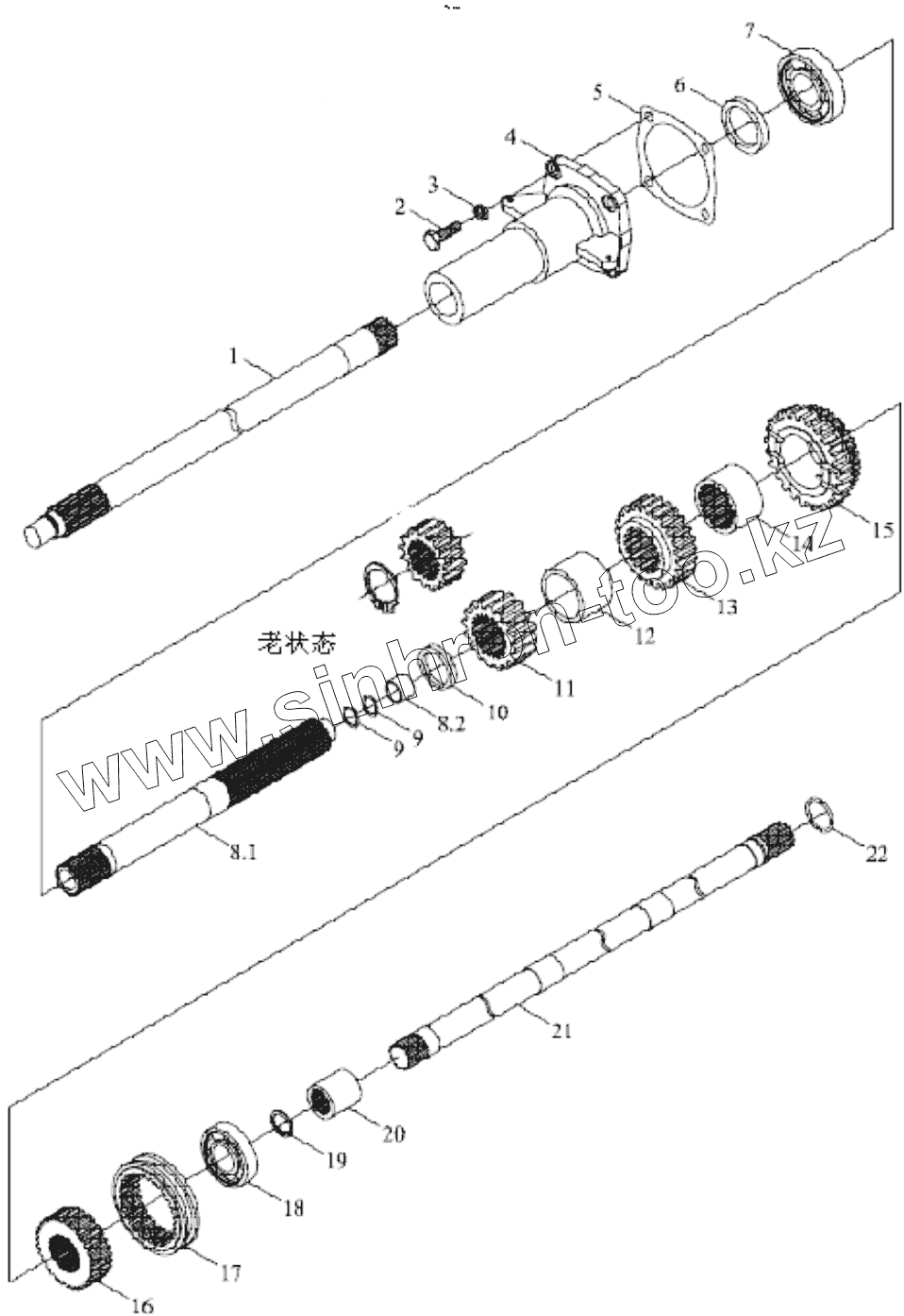

Каталог запасных частей к технике: Foton TB454-Q161Y20K. TB450.372B MAIN TRANSMISSION ASSEMBLY-1

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
10
10
11
11
12
12
12
12
12
12
13
14
15
16
17
18
19
2
20
21
21
22
3
4
5
6
7
8.1
8.1
8.1
8.1
8.2
9
9
Позиция на иллюстрации Заводской номер детали Название детали
1 FT400.37B.201 Shaft of auxiliary clutch
10 GBT894.1-40 Washer 40
10 TB550.372-18 I gear spacer
11 FT300.37B.126 Driving gear
11 FT300.37B.126a I driving gear
12 FT300.37B.127a I-ii gear spacer
12 FT300.37B.127 Space sleeve
12 TB550.372-19 I-ii gear spacer
13 FT300.37.128 Driving gear
14 FT300.37.130 Gear sleeve
15 FT300.37.131a driving gear
16 FT300.37.132 Gear engaging tooth holder
17 FT300.37.134a - shift collar
18 GBT276-6007 Bearing
19 GBT893.1-21 Snap ring
2 GBT5783-M8X25-A2L Bolt
20 FT300.37.136 Joint tube
21 FT300.37E.137 Joint shaft ,PTO
21 FT300.37E.137 Joint shaft ,PTO
22 GBT895.2-24 Snap ring
3 GBT93-8 Normal type single coil spring lock washer
4 FT300.37B.124 Housing of shaft
5 FT300.37B.125 Housing gasket of I shaft
6 GBT9877.1-FB40X62X8D O ring
7 GBT276-6208 Bearing
8 FT300.37B.021 Shaft i unit
8 FT300.37B.021a Shaft i unit
8 FT300.37B.021a Shaft i unit
8.1 FT300.37B.202 Shaft
8.1 FT300.37B.202a Shaft i
8.2 FT300.37.170 Sleeve
9 GBT3452.1-23.6X1.80G O-seal ring
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
