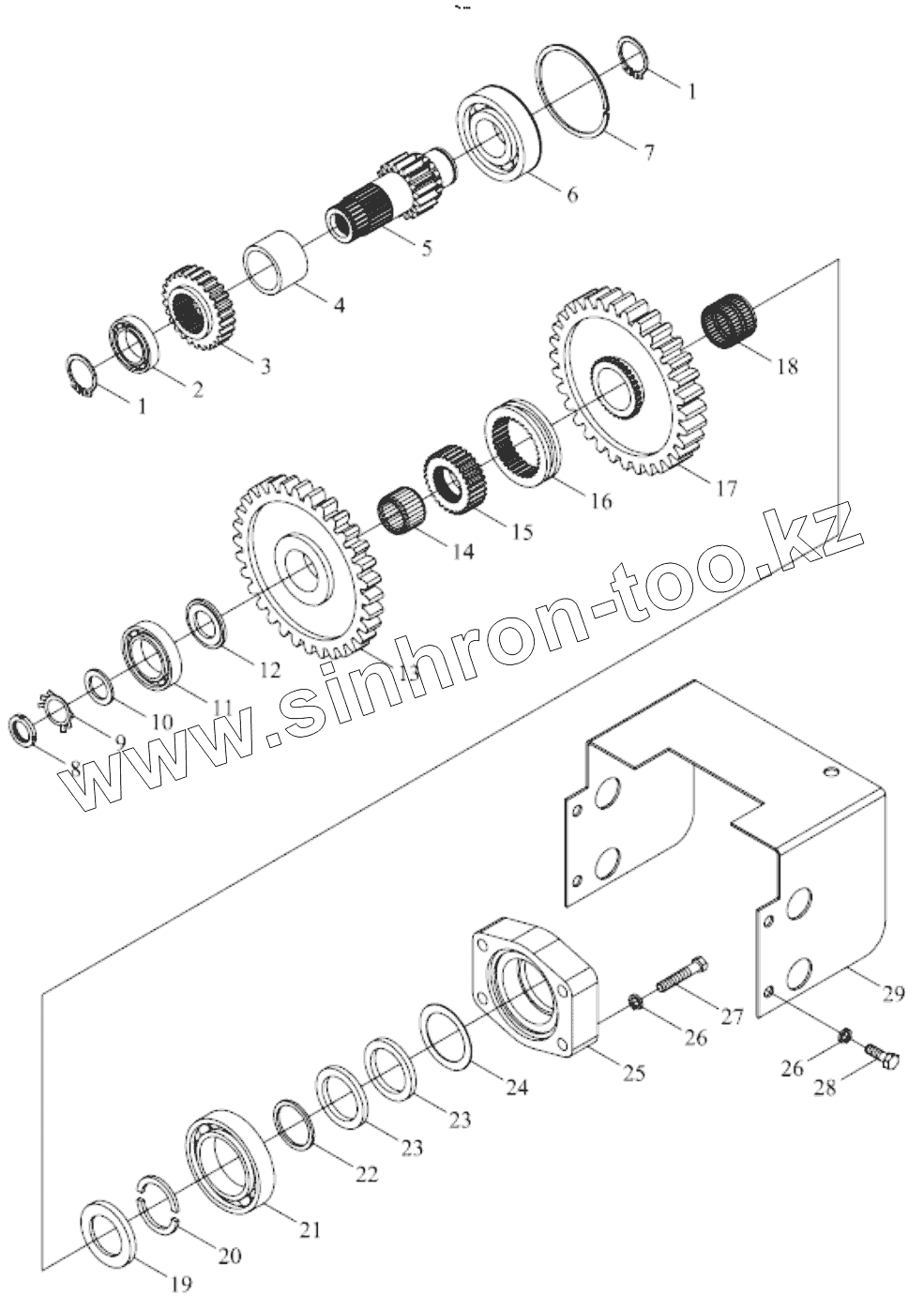

Каталог запасных частей к технике: Foton TB454-Q161Y20K. TB400.411D PTO GEAR ASSEMBLY

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
2
3
3
3
3
4
5
5
6
7
8
9
10
11
12
13
14
15
15
16
17
19
20
21
22
23
23
24
25
26
26
27
28
29
Позиция на иллюстрации Заводской номер детали Название детали
1 GBT894.1-40 Washer 40
2 GBT276-6208 Bearing
3 FT300.41E.120 High-speed gear, PTO driving gear
3 FT300.41E.120 High-speed gear, PTO driving gear
4 FT300.41E.121 Spacer
5 FT300.41E.106 Driving gear, PTO
5 FT300.41E.106 Driving gear, PTO
6 GBT276-6308N Bearing
7 GBT305-90-96.5 Thrust ring
8 GBT812-M25X1.5 Round nut
9 GBT858-25 Washer lock
10 FT300.41.122 Washer
11 GBT276-6306 Bearing
12 FT300.41C.118 Front stop ring, output shaft
13 FT300.41E.105 Driven small gear,PTO
14 JBT7918-K35X40X27 Needle and carrier unit
15 FT300.41C.117 Engaging seat, PTO
15 FT300.41C.117 Engaging seat, PTO
16 FT300.41C.116 Engaging sleeve, PTO
17 FT300.41E.103 Driven big gear,PTO
19 FT300.41E.114 Rear stop ring
20 FT300.41E.119 Semi stop ring, output shaft
21 GBT276-6309 Bearing
22 FT300.41E.113 Output shaft bearing washer
23 GBT9877.1-FB50X72X8D O ring
24 FT300.41E.115 Circlip for oil sealing
25 FT300.41E.101 Rear cover
26 GBT93-12-AOP Washer
27 GBT5782-M12X55 Bolt
28 GBT5781-M12X25-A3L Bolt
29 FT300.41.131a Safty bonnet
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
