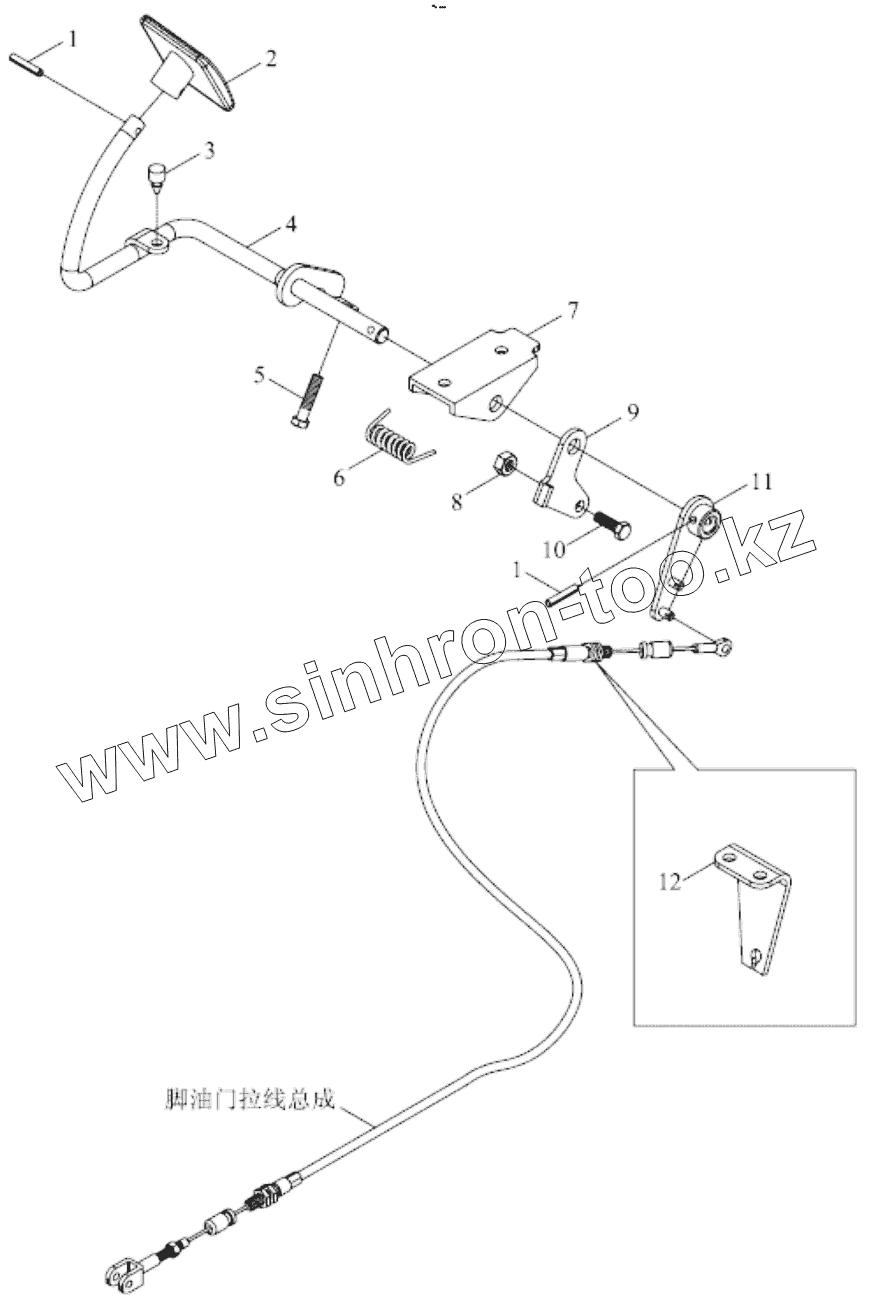

Каталог запасных частей к технике: Foton TB454-Q161Y20K. TB400.202B FOOT THRORRLE ASSEMBLY

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано FL917F (2009) FL935E (2012) FL936F (FL936FH4C1B2X1A105) (2011) FL958G (2015) Foton-FL936F (2007) Foton-FL958G (2007) TB454-Q161Y20K TL254 (TL1A254-001K)

Схема > Не выбрано QC495T45-13-01 10.1 CYLINDER BLOCK QC495T45-13-10 10.10 CYLINDER HEAD COVER ASSEMBLY QC495T45-13-11 10.11 TIMING GEAR CASE ASSEMBLY QC495T45-13-12 10.12 FLYWHEEL COVER ASSEMBLY QC495T45-13-13 10.13 HIGH PRESSURE OIL PIPE ASSEMBLY QC495T45-13-14 10.14 OIL PUMP ASSEMBLY QC495T45-13-15 10.15 BREATH ASSEMBLY QC495T45-13-16 10.16 OIL CIRCUIT ASSEMBLY QC495T45-13-17 10.17 WATER PUMP AND FAN ASSEMBLY-17 QC495T45-13-18 10.18 OIL INJECTION PUMP QC495T45-13-19 10.19 ALTERNATOR ASSY QC495T45-13-02 10.2 TIMING GEAR ASSEMBLY-2 QC495T45-13-20 10.20 FUEL SUPPLY SYSTEM ASSEMBLY QC495T45-13-21 10.21 FUEL INJECTOR ASSEMBLY QC495T45-13-22 10.22 OIL FILTER ASSEMBLY QC495T45-13-23 10.23 FUEL FILTER ASSEMBLY-23 QC495T45-13-24 10.24 STARTING MOTOR ASSEMBLY QC495T45-13-03 10.3 CYLINDER HEAD ASSY QC495T45-13-04 10.4 PISTONS & CONNECTING RODS QC495T45-13-05 10.5 CRANKSHAFT FLYWHEEL ASSEMBLY QC495T45-13-06 10.6 CAMSHAFT ASSY QC495T45-13-07 10.7 OIL SUMP ASSEMBLY QC495T45-13-08 10.8 EXHAUST PIPE ASSEMBLY-8 QC495T45-13-09 10.9 INTAKE PIPE ASSEMBLY-9 TB400.11 AIR CLEANER ASSEMBLY TB500.13D COOLING SYSTEM ASSEMBLY TB400.201F HAND THROTTLE ASSEMBLY TB400.202B FOOT THRORRLE ASSEMBLY TB400.203B PULL WIRE ASSEMBLY TB550.211 CLUTCH ASSEMBLY TB550.211 CLUTCH ASSEMBLY TB504.212 CLUTCH CONTROL MECHANISM ASSEMBLY TB504.311 FRONT DRIVING AXLE ASSEMBLY-1 TB504.311 FRONT DRIVING AXLE ASSEMBLY-2 TB504.311 FRONT DRIVING AXLE ASSEMBLY-3 TB504.311 FRONT DRIVING AXLE ASSEMBLY-4 TB504.311 FRONT DRIVING AXLE ASSEMBLY-5 TB504.311 FRONT DRIVING AXLE ASSEMBLY-6 TB554.312 FRONT BRACKET ASSEMBLY FT404.32F.001 FRONT DRIVING WHEEL ASSEMBLY FT400.34F.001 REAR DRIVE WHEEL ASSEMBLY TB400.371A GEARBOX HOUSING ASSEMBLY TB450.372B MAIN TRANSMISSION ASSEMBLY-1 TB450.372B MAIN TRANSMISSION ASSEMBLY-2 TB450.374C GEARBOX CONTROL MECHANISM ASSEMBLY-1 TB450.374C GEARBOX CONTROL MECHANISM ASSEMBLY-2 TB404.382B REAR AXLE CENTRAL TRANSMISSION ASSEMBLY-1 TB404.382B REAR AXLE CENTRAL TRANSMISSION ASSEMBLY-2 TB554.383A DIFFERENTIAL LOCK CONTROL MECHANISM ASSEMBLY FT300.39.001 FINAL TRANSMISSION ASSEMBLY-1 FT300.39.001 FINAL TRANSMISSION ASSEMBLY-2 TB504.402B FULL HYDRAULIC STEERING PIPE ASSEMBLY-1 TB504.401B REDIRECTOR OR STEERING COLUMN ASSEMBLY TB504.402B FULL HYDRAULIC STEERING PIPE ASSEMBLY-2 TB400.411D PTO GEAR ASSEMBLY TB550.412A PTO SHAFT ASSEMBLY TB550.413D PTO CONTROL ASSEMBLY TB554.421C TRANSFER CASE HOUSING ASSEMBLY TB454.422 TRANSFER CASE TRANSMISSION ASSEMBLY TB554.423C TRANSFER CASE CONTROL ASSEMBLY TB504.431 LEFT BRAKE ASSEMBLY TB504.432 RIGHT BRAKE ASSEMBLY TB504.433 BRAKE CONTROL MECHANISM ASSEMBLY-1 TB504.433 BRAKE CONTROL MECHANISM ASSEMBLY-2 TB400.44G SEAT INSTALLATION ASSEMBLY TB550.452Y FLOOR ASSEMBLY TB550.452U FLOOR ASSEMBLY-1 TB550.452U FLOOR ASSEMBLY-2 TB550.452U FLOOR ASSEMBLY-3 TB400.457B FRONT CONNECTING ASSEMBLY TB400.46N SAFETY FRAME INSTALLATION ASSEMBLY TB400B.471A BONNET ASSEMBLY TB400B.473 BONNET LOCKING DEVICE ASSEMBLY TB550.477E BONNET EXTENSION PLATE ASSEMBLY TB450.481F ENGINE HARNESS INSTALLATION ASSEMBLY TB450.482H BODY HARNESS INSTALLATION ASSEMBLY TB450.483B FRONT LAMP HARNESS INSTALLATION ASSEMBLY TB500.484C REAR LAMP HARNESS INSTALLATION ASSEMBLY TB450.485A BATTERY INSTALLATION ASSEMBLY TB400.487 COMBINED INSTRUMENT ASSEMBLY FT300.49.001 TOOL BOX ASSEMBLY TB400.50X FUEL TANK INSTAllation assembly FT300.53.001 TOW EQUIPMENT ASSEMBLY TB504.551A LIFTER INSTALLATION ASSEMBLY TB504.551A LIFTER INSTALLATION ASSEMBLY-7-1 TB504.552C LIFTER CONTROL MECHANISM ASSEMBLY TB504.551A-2 LIFTER INSTALLATION ASSEMBLY-7-2 TB504.551A-3 LIFTER INSTALLATION ASSEMBLY-7-3 TB504.551A-4 LIFTER INSTALLATION ASSEMBLY-4 TB504.551A-5 LIFTER INSTALLATION ASSEMBLY-5 TB504.551A-6 LIFT ASSEMBLY-6 TB504.551A-7 LIFT ASSEMBLY-7 FT500A.56B.001-1 SUSPENSION MECHANISM ASSEMBLY-1 FT500A.56B.001-2 SUSPENSION MECHANISM ASSEMBLY-2 FT454.58J.001 58 oil pump tubing assembly TB504.582C MULTI-WAY VALVE CONTROL MECHANISM ASSEMBLY TB504.582C-1 MULTI-WAY VALVE CONTROL MECHANISM ASSEMBLY-1 TB504.582C-2 MULTI-WAY VALVE CONTROL MECHANISM ASSEMBLY-2 TB504.582C-3 MULTI-WAY VALVE CONTROL MECHANISM ASSEMBLY-3 TB300.583A SINGLE-WAY HYDRAULIC OUTPUT ASSEMBLY 2 TA600.62ZC SAFETY BELT FT404.74A.002 FRONT BALLAST ASSEMBLY FT300.74B.001 FRONT BALLAST BRACKET ASSEMBLYFRONT BALLAST ASSEMBLYSAFETY BELT TB400.91 REAR BALLAST ASSEMBLY

1

1

2

3

4

5

6

7

8

9

10

11

12

Позиция на иллюстрации	Заводской номер детали		Название детали
1	GBT879.1-5X20		Pin
2	FT650.20.101		Foot pedal
3	FT650.20.107		rubber plug
4	FT300.20.013		Foot pedal rocker weldment
5	GBT5783-M5X12-A2L		Bolt
6	FT650.20.104		Torsion spring
7	FT650.20.108		throttle bracket
8	GBT6170-M8-A2L		Type 1 hexagon nut
9	FT650.20.114		Hand throttle rocker
10	GBT5781-M8X20-4.8-A2L		Bolt
11	FT300.20.011		Foot throttle rocker weldment
12	FT300.20.016		Foot throttle wire bracket weldment

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
