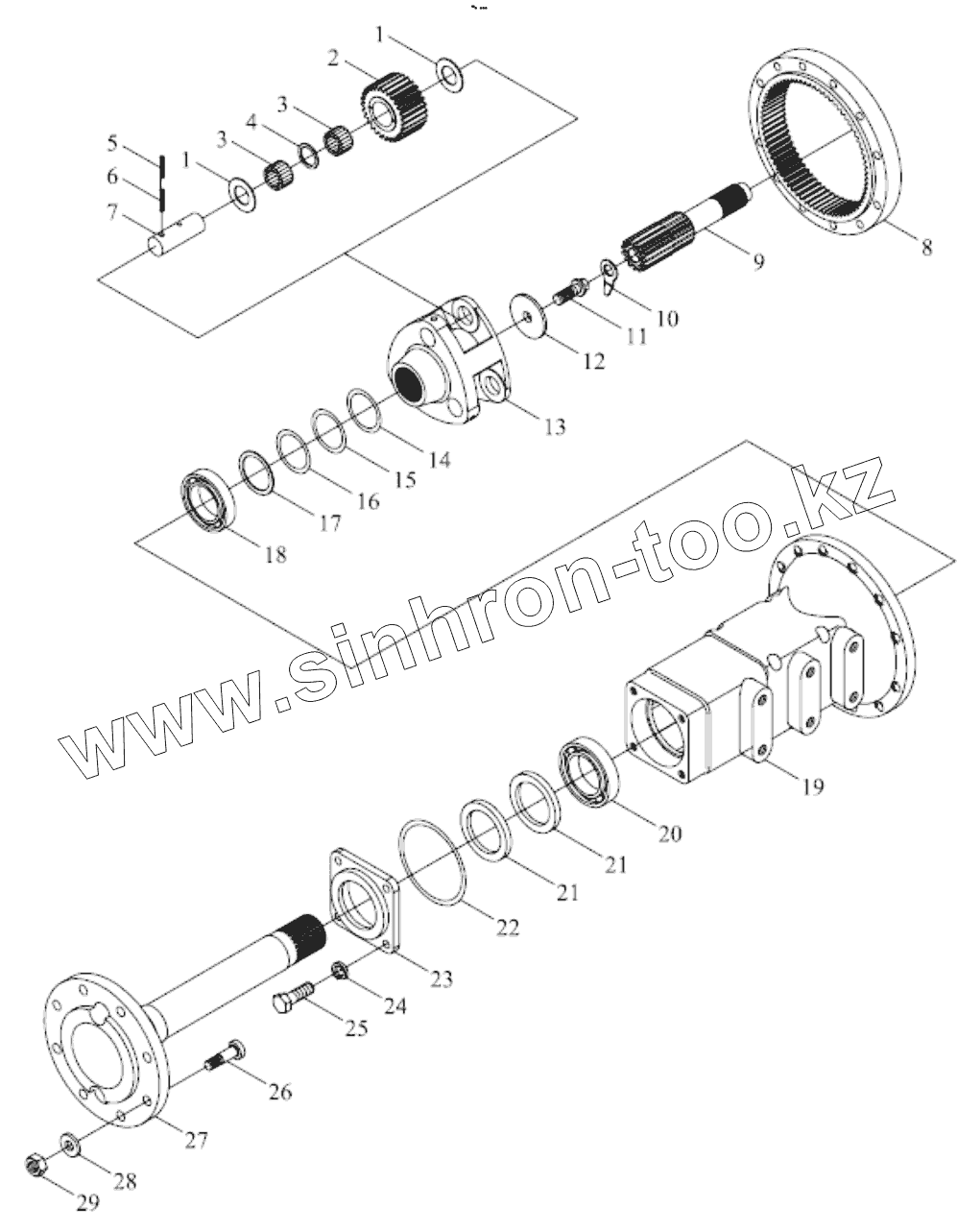

Каталог запасных частей к технике: Foton TB454-Q161Y20K. FT300.39.001 FINAL TRANSMISSION ASSEMBLY-1

Тип техники

Марка

Модель

Схема

1

1

2

3

3

4

5

6

7

8

9

10

11

12

13

14

15

16

16

17

18

19

20

21

21

22

23

24

25

26

27

28

29

Позиция на иллюстрации	Заводской номер детали		Название детали
1	FT300.39.109		Outer spacer sleeve
2	FT300.39.103		Planetary wheel
3	GBT309-P5X23.8-G2		Needle
4	FT300.39.105		Inner spacer sleeve
5	GBT879.1-5X24		Pin
6	GBT879.1-8X24		Pin
7	FT300.39.106		Shaft of planetary wheel
8	FT300.39.107		Ring gear
9	FT300.39.101		Half shaft, left
10	FT300.39.110		Lock plate of driving shaft
11	FT300.39.112		Lock bolt of driving shaft
12	FT300.39.111		Rest
13	FT300.39.104		Planetary frame
14	FT300.39.123		Adjusting shim
15	FT300.39.122		Adjusting shim
16	FT300.39.121		Adjusting shim
16	FT300.39.121		Adjusting shim
17	FT300.39.113		Spacer sleeve
18	GBT276-6211		Bearing
19	FT300.39.115		Case of driving shaft, left
20	GBT276-6212		Ball bearing
21	GBT9877.1-FB70X95X10D		O ring
22	GBT3452.1-115X3.55G		O-seal ring
23	FT300.39.116		Seat for oil sealing
24	GBT93-12-AOP		Washer
25	GBT5783-M12X30-8.8-A3L		Bolt
26	FT300.39.136		Rear hub bolt
27	FT300.39.118		Driving shaft
28	FT300.39.137		Washer
29	GBT6176-M16X1.5-LH-10-A3L		Hexagon nut, type-2

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
