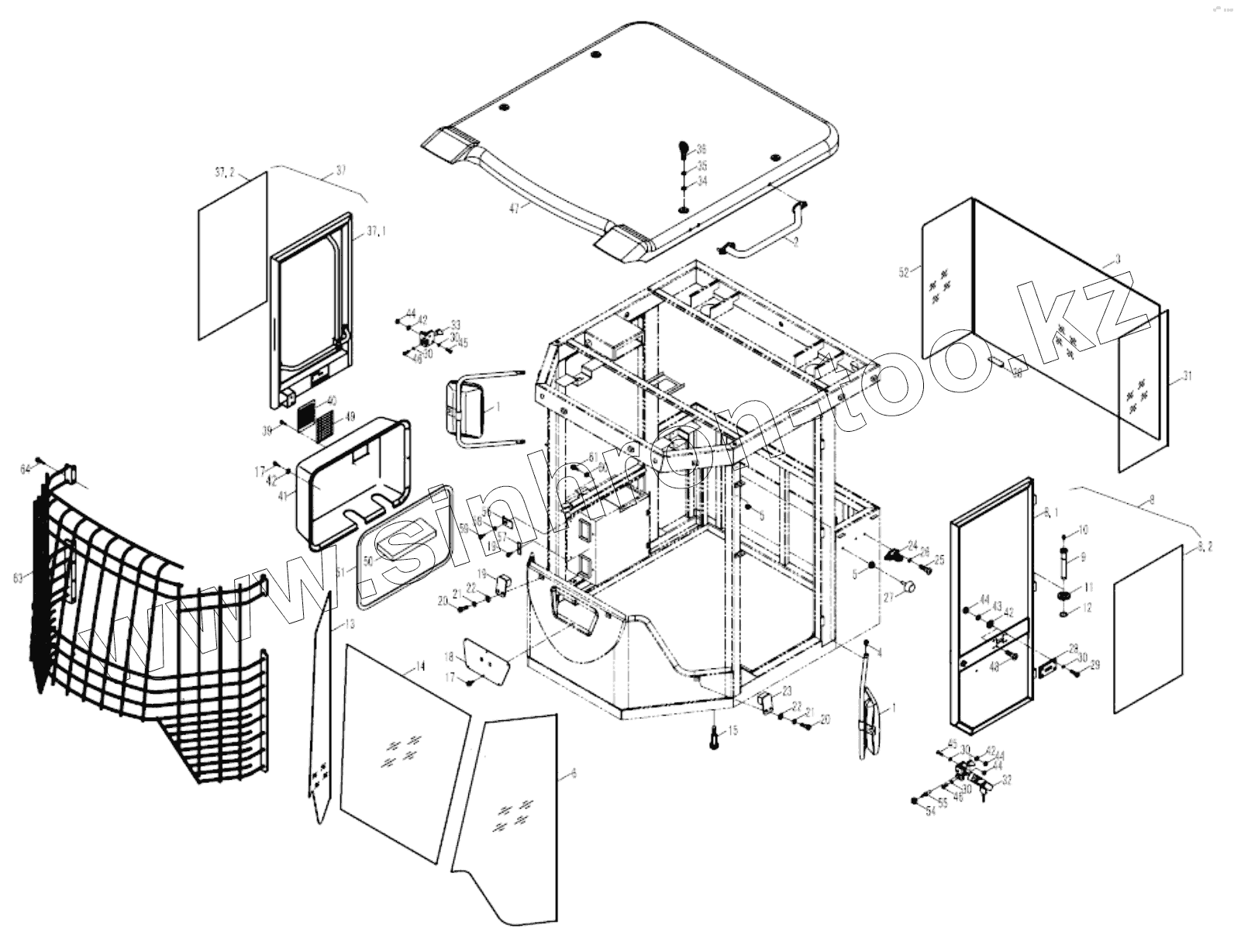

Каталог запасных частей к технике: Foton FL958G. 9G662-45C030000A0 CAB OUTER INSTALL ASSEMBLY
1
1
10
11
12
13
14
15
17
17
18
19
19
2
20
20
21
21
22
22
23
24
25
26
27
28
29
3
30
30
30
30
30
31
32
32
33
34
35
36
37
37.1
37.2
38
39
4
40
41
42
42
42
42
43
44
44
44
44
45
45
46
46
47
48
49
5
5
50
51
52
54
55
56
57
58
59
59
6
60
61
63
64
8
8.1
9
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 9F550-45A030100A0 | Astern mirror assembly | |
| 10 | JBT7940.1-M6 | Straight pressure filling oil cup | |
| 11 | GBT848-12-A3L | Washer | |
| 12 | GBT894.1-12-A3L | Snap ring | |
| 13 | 9F550-45A030003A0 | Right front glass | |
| 14 | 9F550-45A030001A0 | Front glass | |
| 15 | GBT16674.1-M12X50-8.8-A3L | Bolt | |
| 17 | GBT16674.1-M6X20-8.8-A2L | Bolt | |
| 18 | 9F550-45A030007A0 | Front wiper fixed plate | |
| 19 | 9F550-45A030200A0 | Press board complex | |
| 2 | 9F850-45A031100B0 | Handle | |
| 20 | GBT818-M5X10-4.8-A2L | Screw | |
| 21 | GBT93-5-A3L | Washer | |
| 22 | GBT97.1-5-A3L | Washer | |
| 23 | 9F550-45A031000A0 | Press board complex | |
| 24 | 9F550-45A031100A0 | Lock button weldment | |
| 25 | GBT819.1-M8X20-4.8-A2L | Cunersunk flat head screw with cross | |
| 26 | GBT956.1-8 | Recess | |
| 27 | 9F850-45A030006B0 | Taper lock washer | |
| 28 | 9F850-45A031700A0 | Open-door spacing block | |
| 29 | GBT819.1-M6X20-4.8-A2L | Open-door fixing complex | |
| 3 | 9G662-45A030004A0 | Cunersunk flat head screw with cross | |
| 30 | GBT956.1-6 | Recess | |
| 31 | 9G662-45A030005A0 | Rear glass | |
| 32 | 9F850-45A030600A0 | Left door lock | |
| 33 | 9F850-45A030700A0 | Right door lock | |
| 34 | 9F850-45A030005A0 | Top cover washer | |
| 35 | GBT96.1-12-A3L | Washer | |
| 36 | 9D652-45A030008A0 | Screw | |
| 37 | 9F550-45A030400A0 | Right window assembly | |
| 37.1 | 9F550-45A030600A0 | Right window welding | |
| 37.2 | 9F550-45A030301A0 | Left door glass | |
| 38 | 9F653-45B030023A0 | Glass mat block | |
| 39 | GBT845-ST3.5X9.5 | Screw | |
| 4 | GBT16674.1-M10X30-8.8-A3L | Bolt | |
| 40 | 9F550-45A030010A0 | Ventilation window | |
| 41 | 9G662-45A030010A0 | Air condition cover | |
| 42 | GBT97.1-6-A3L | Washer | |
| 43 | GBT93-6-A3L | Washer | |
| 44 | GBT889.1-M6-8 | -hexagon locking nut | |
| 45 | GBT819.1-M6X25-4.8-A2L | Bolt | |
| 46 | GBT819.1-M6X30-4.8-A2L | Cunersunk flat head screw with cross recess | |
| 47 | 9G662-45A030100A0 | Upper cover weldment | |
| 48 | GBT818-M6X20-4.8-A2L | Screw | |
| 49 | 9F550-45A030013A0 | Ventilation window filter | |
| 5 | GBT6177.1-M10-8-A3L | Nut | |
| 5 | GBT6177.1-M10-8-A3L | Nut | |
| 50 | 9F550-45A030012A0 | Sponge block | |
| 51 | 9F550-45A030011A0 | Sealing sponge | |
| 52 | 9G662-45A030006A0 | Right rear glass | |
| 54 | GBT6170-M12-8-A3L | Nut | |
| 55 | 9F653-45B030024A0 | Lock column | |
| 56 | 9G662-45A030007A0 | Plate | |
| 57 | 9G662-45A030008A0 | Plate | |
| 58 | GBT96.1-6-A3L | Washer | |
| 59 | GBT16674.1-M6X16-8.8-A2L | Bolt | |
| 59 | GBT16674.1-M6X16-8.8-A2L | Bolt | |
| 6 | 9F550-45A030002A0 | Left front glass | |
| 60 | GBT97.1-8-A3L | Washer | |
| 61 | GBT16674.1-M8X16-8.8-A2L | Bolt | |
| 63 | 9G662-45C030100A0 | Front wind fence assembly | |
| 64 | GBT16674.1-M8X20-8.8-A2L | Bolt | |
| 8 | 9F550-45A030300A0 | Left door assembly | |
| 8.1 | 9F550-45A030500A0 | Left door weldment | |
| 9 | 9F550-45A030009A0 | Pin |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
