Каталог запасных частей к технике: Foton FL958G. 9F859-59D000000A0 HYDRAULIC CONTROL SYSTEM
1
1
1
1
10
11
11
12
12
12
12
12
13
13
13
13
14
14
14
14
14
14
14
15
16
16
17
17
18
2
2
20
21
22
23
24
25
26
26
26
26
28
3
30
31
31
32
33
33
34
35
36
37
38
39
4
40
41
41
42
43
43
44
45
46
47
48
49
5
50
51
52
52
52.1
52.2
52.3
53
54
55
56
6
7
8
9

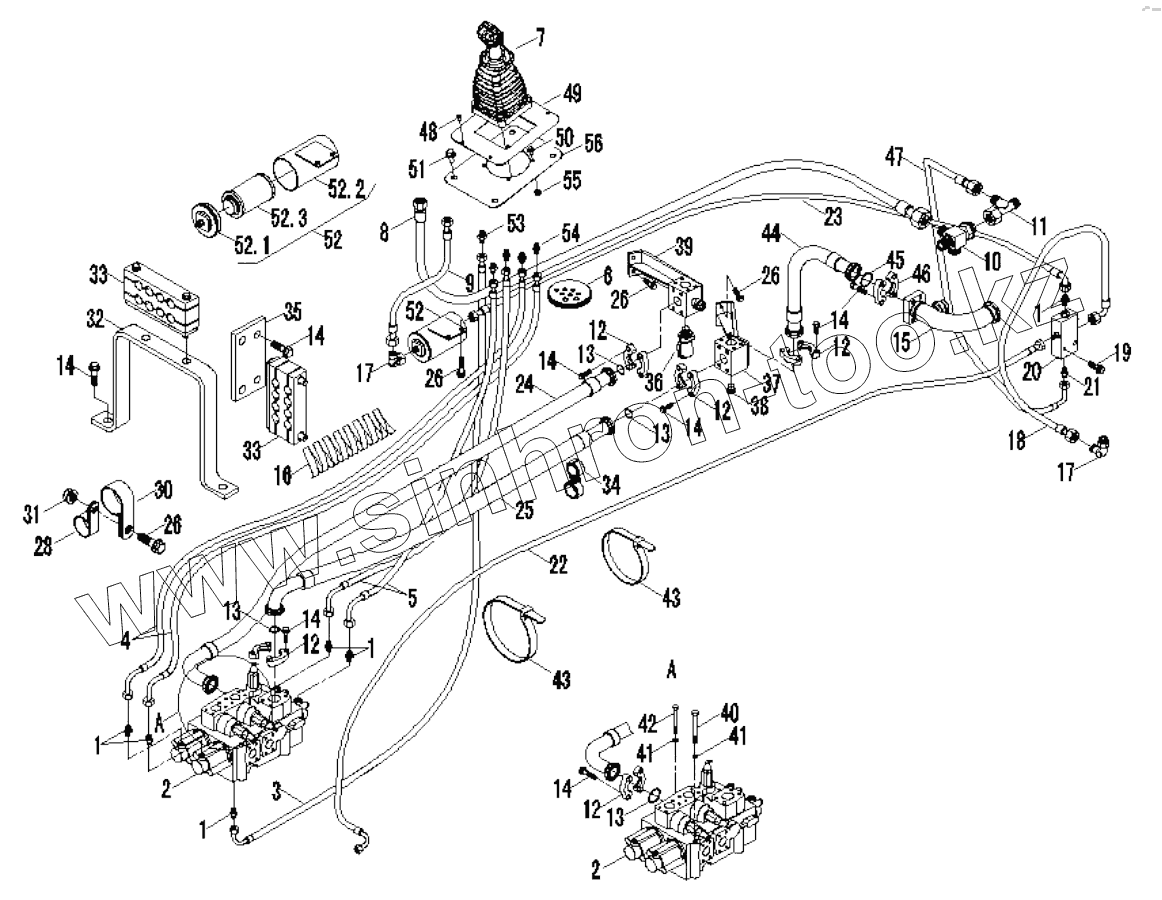

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | QLWZG074-001414 | Straight joint | |
| 10 | 9F650-59C010000A0 | Four-way joint | |
| 11 | QLWZG079-101818 | Tee | |
| 11 | QLWZG079-101818 | Tee | |
| 12 | QLWZG090-024450 | Flange | |
| 13 | ISO3601-47.22X3.53-90 | O-ring | |
| 14 | GBT16674.1-M12X30-8.8-A3L | Bolt | |
| 15 | 9F859-59A020000A0 | Oil return steel pipe | |
| 16 | 9F850-59A000001A0 | Jacket | |
| 16 | 9F850-59A000001A0 | Jacket | |
| 17 | QLWZG078-001616 | Right angle combination joint | |
| 18 | QLWZG056.2-0051200 | 24 taper hose assembly | |
| 2 | 9F850-59A020000A0 | Multi-way diverter valve | |
| 20 | 9F859-59A100000A0 | Pressure selection valve | |
| 21 | QLWZG074-001814 | Straight joint | |
| 22 | 9F859-59A060000A1 | Flameout pull wire | |
| 23 | 9F859-59A070000A0 | Pilot filter oil inlet hose | |
| 24 | 9F859-59A050000A0 | Oil inlet hose of multi-way valve | |
| 25 | 9F859-59A040000A0 | Oil return hose of multi-way valve | |
| 26 | GBT16674.1-M10X20-8.8-A3L | Bolt | |
| 28 | QLWZG102-00426 | Pipe clamp | |
| 3 | QLWZG056.2-0043050 | Taper hose assembly | |
| 30 | QLWZG102-00219 | Pipe clamp | |
| 31 | GBT6177.1-M10-8-A3L | Nut | |
| 31 | GBT6177.1-M10-8-A3L | Nut | |
| 32 | 9F859-59A000001B0 | Suppot bracket | |
| 33 | 9F653-59C020000A0 | Pipe clamp | |
| 34 | 9F653-59A070000B0 | Pipe clamp | |
| 35 | 9F653-59C000004A0 | Fixed plate | |
| 36 | 9F850-59A190000A0 | Plug for measuring pressure m14x1.5ed | |
| 37 | 9F859-59A030000A1 | Low pressure oil dividing block | |
| 38 | QLWZG087-001406 | Plug | |
| 39 | 9F859-59A010000B0 | High pressure oil distributor block | |
| 4 | QLWZG056.2-0043250 | Taper hose assembly | |
| 40 | 9G650-59A000002A0 | Bolt | |
| 41 | GBT93-12-A3L | Washer | |
| 42 | 9F850-59A000006A0 | Bolt | |
| 43 | 9F859-59A000002A0 | Wide self-lock enswathe bel | |
| 44 | QLWZG051.3-0200690 | Flange hose | |
| 45 | ISO3601-37.69X3.53-90 | O-ring | |
| 46 | QLWZG090-020380 | Flange | |
| 47 | QLWZG056.2-0061650 | Taper hose assembly | |
| 48 | GBT818-M5X10-4.8-A2L | Screw | |
| 49 | 9F560-59B000004A0 | Upper cover plate | |
| 5 | QLWZG056.2-0042750 | Taper hose assembly | |
| 50 | GBT16674.1-M6X12-8.8-A2L | Bolt | |
| 51 | GBT16674.1-M10X50-8.8-A3L | Bolt | |
| 52 | 9G661-59A050000A0 | Filter | |
| 52.1 | 9G661-59A050001A0 | End cover | |
| 52.2 | 9G661-59A050002A0 | Cylinder housing | |
| 52.3 | 9G661-59A050003A0 | Filter | |
| 53 | QLWZG075-201404 | Straight joint | |
| 54 | QLWZG075-201604 | Straight joint | |
| 55 | GBT6177.1-M6-8-A2L | Nut | |
| 56 | 9F560-59B000003A0 | Upper cover plate | |
| 6 | 9F653-59B000003A0 | Rubber sheath | |
| 7 | 9F560-59B050000A0 | Priority valve | |
| 8 | 9F859-59A090000A0 | Oil returning pipe of priority valve | |
| 9 | QLWZG056.1-0051450 | Taper hose assembly |
