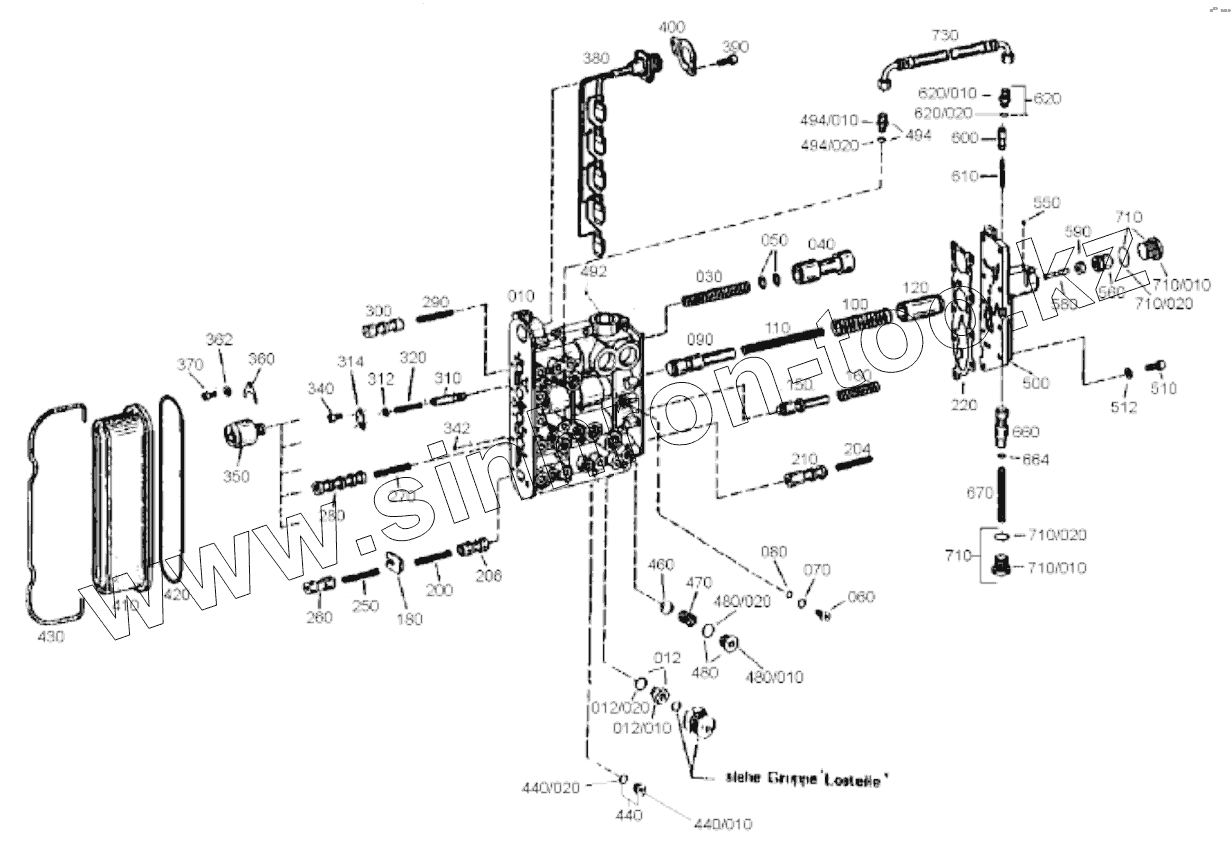

Каталог запасных частей к технике: Foton FL958G. 4644 159 347 00 GEAR SHIFT SYSTEM
10
10
10
10
10
10
10
10
10
10
10
10
10
10
20
20
20
20
20
20
20
20
20
20
30
40
80
90
100
110
120
150
160
180
200
206
210
220
280
300
310
312
314
320
340
342
350
350
360
362
380
390
400
410
420
430
460
470
500
510
512
580
600
610
660
664
670
730
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4644306522 | 4644306522 | Throttle plug | |
| 4644306521 | 4644306521 | Throttle plug | |
| 4644306517 | 4644306517 | Piston | |
| 4644306440 | 4644306440 | Piston | |
| 4644306403 | 4644306403 | Throttle plug | |
| 4644306402 | 4644306402 | Throttle plug | |
| 4644306401 | 4644306401 | Throttle plug | |
| 4644306390 | 4644306390 | Piston | |
| 730006348 | 730006348 | Ring washer | |
| 730006347 | 730006347 | Ring washer | |
| 730006346 | 730006346 | Ring washer | |
| 730006345 | 730006345 | Ring washer | |
| 730006344 | 730006344 | Ring washer | |
| 4644306554 | 4644306554 | Throttle plug | |
| 4644306554 | 4644306554 | Throttle plug | |
| 4644306531 | 4644306531 | Throttle plug | |
| 4644306404 | 4644306404 | Throttle plug | |
| 0630004038H | 0630004038H | Adjusting washer | |
| 0630004037H | 0630004037H | Adjusting washer | |
| 0630000185H | 0630000185H | Adjusting washer | |
| 630000164 | 630000164 | Adjusting washer | |
| 630000148 | 630000148 | Adjusting washer | |
| 730006345 | 730006345 | Ring washer | |
| 10 | 0636302005H | Plug | |
| 10 | 4644306558H | Valve body | |
| 10 | 4644306566 | Screw-insleeve | |
| 10 | 0636302014H | Screw plug | |
| 10 | 0636302053H | Plug | |
| 10 | 4616306109 | Screw-insleeve | |
| 10 | 0637842525H | Socket | |
| 20 | 634303144 | O-ring | |
| 20 | 0634303280H | O-ring | |
| 20 | 634306198 | O-ring | |
| 20 | 634306524 | O-ring | |
| 30 | 732042314 | Compr.spring | |
| 40 | 4644306597 | Piston | |
| 80 | 634306170 | O-ring | |
| 90 | 4644306376H | Piston | |
| 100 | 732042315 | Compr.spring | |
| 110 | 732042316 | Compr.spring | |
| 120 | 4644306377 | Piston | |
| 150 | 4644306509 | Piston | |
| 160 | 732042317 | Compr.spring | |
| 180 | 4644306379 | Retainer plate | |
| 200 | 770060648 | Compr.spring | |
| 206 | 4644306381 | Piston | |
| 210 | 4644306380 | Piston | |
| 220 | 4644306584 | Seal gasket | |
| 280 | 4644306383 | Piston | |
| 300 | 4644306384 | Piston | |
| 310 | 4644306578 | Reduction valve | |
| 312 | 730007565 | Ring washer | |
| 314 | 4644306580 | Fixed plate | |
| 320 | 732042024 | Compr.spring | |
| 340 | 0636101129H | Cap screw | |
| 342 | 635460005 | Ball | |
| 350 | 501313375 | Elec. Valve | |
| 350 | 501313375 | Elec. Valve | |
| 360 | 1043326045 | Fixed plate | |
| 362 | 0730004292H | Washer | |
| 380 | 4644206035 | Wire | |
| 390 | 0636101478H | Cap screw | |
| 400 | 4644306399 | Fixed plate | |
| 410 | 4644206039 | Cover | |
| 420 | 634349606 | O-ring | |
| 430 | 4644306388 | Hoop | |
| 460 | 635460027 | Ball | |
| 470 | 732041226 | Compr.spring | |
| 500 | 4644306511 | Gearshift housing | |
| 510 | 0636101012H | Cap screw | |
| 512 | 0630003004H | Washer | |
| 580 | 635470104 | Ball | |
| 600 | 4644306397 | Piston | |
| 610 | 732042318 | Compr.spring | |
| 660 | 4644306398 | Piston | |
| 664 | 0630004252H | Washer | |
| 670 | 732041764 | Compr.spring | |
| 730 | 0750147228H | Hose |
