5. 4644 108 232 00 LAYSHAFT LAYSHAFT

Каталог запасных частей к технике: Foton FL958G. 4644 108 232 00 LAYSHAFT LAYSHAFT

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано FL917F (2009) FL935E (2012) FL936F (FL936FH4C1B2X1A105) (2011) FL958G (2015) Foton-FL936F (2007) Foton-FL958G (2007) TB454-Q161Y20K TL254 (TL1A254-001K)

Схема > Не выбрано 9F865-01A000000A0 ENGINE MOUNT 9F865-02A000000A0 RADIATOR INSTALLATION 9F850-05A000000A0 THROTTLE CONTROL SYSTEM 9F653-08A000000A0 FUEL TANK INTALLATION 9F850-12A000000A0 JOINT ASSEMBLY 9F865-13A000000B0-ZC REAR FRAME WELD ASSEMBLY 9F653-15F000000A0 COUNTERWEIGHT 9F852-16A000000B0 FRONT FRAME APPENDIX 9F850-17A000000A0 REAR FRAME APPENDIX 9F852-23A000000A0 GEARBOX INSTALLATION 9F852-24A000000A0 GEARBOX ASSEMBLY 9F852-25B000000A0 DRIVE SHAFT INSTALLATION 9F653-26A000000A0 FRONT AXLE INSTALLATION 9F850-27A000000B0 REAR AXLE INSTALLATION 9F859-29B000000A0 PARKING AND AUXILIARY BRAKING SYSTEM 9F865-32A000000A0 TRANSMISSION OIL COOLING OIL-WAY 9F850-34A000000A0 WHEEL ASSEMBLY 9F865-35A000000A0 BRAKING PRESSURE SUPPLY SYSTEM 9F865-36A000000A0 BRAKE CONTROL SYSTEM 9F850-37A000000B0 DRIVE AXLE PIPE SYSTEM 9F850-44B000000A0 SEAT INSTALLATION ASSEMBLY 9G662-45C000000A0 CAB ASSEMBLY 9G662-46A000000B0 FLOOR PLATFORM INSTALLATION ASSEMBLY 9F865-47A000000B0 HOOD ASSEMBLY 9F658-48A000000A0 MUDGUARD ASSEMBLY 9F865-54A000000A0 STEERING HYDRAULIC SYSTEM 9F852-56A000000B0 OIL PUMP SYSTEM 9F657-57A000000A0 HYDRAULIC RADIATOR SYSTEM 9F865-58A000000A0 HYDRAULIC OIL TANK ASSEMBLY 9F859-59D000000A0 HYDRAULIC CONTROL SYSTEM 9F653-62E000000A0 FRONT FRAME WIRING 9G662-63B000000A0 CAB WIRING 9F865-64B000000A0 REAR FRAME WIRING 9F653-65B000000A0 BATTERY WIRING INSTALLATION 9G662-66E000000A0 INSTRUMENT INSTALLATION 9F664-68A000000A0 AIR CONDITIONER SYSTEM 9F853-69A100000D0 PILOT CONTROL MECHANISM 9F853-69A030000A0 RADIOGRAM ASSEMBLY 9F853-69A080000A0 ELECTRIC FAN ASSEMBLY 9F858-72A000000B0 LINK MECHANISM 9F858-73L000000B0 STANDARD BUCKET ASSEMBLY 9F850-76A000000B0 WORKING IMPLEMENT ACCESSORY 4644 108 232 00 LAYSHAFT LAYSHAFT 82902500 MAIN REDUCER SHELL ASSEMBLY 4644 109 040 01 PARKING BRAKE 4644 109 438 00 PARKING BRAKE 4644 109 040 02 PARKING BRAKE M2W6779+C LINES GP-WATER 09AZ601+A CAMSHFT ASS'Y 58000032 BRAKES HOE ASSEMBLY 82395500 FRONT MAIN REDUCER ASSEMBLY M8N0107+A TRUNNION GP 9F653-26A010000A0 FRONT DRIVING AXLE ASSEMBLY M1W3792+A COVER GP (FRONT HOUSING) M8N0872+A FASTENER GP (FRONT HOUSING) 82AZ601+A HOUSING GP-FRONT 4644 154 080 00 POWER TAKE-OFF 4644 155 031 00 POWER TAKE-OFF 4644 155 420 00 POWER TAKE-OFF 84785300 BRAKE ASSEMBLY 33BZ002+A SUPPORT GP-ENGINE M33AZ101+A SUPPORT GP-ENGINE 4644 130 263 00 ENGINE CONNECTING ASSEMBLY 4644 154 476 00 POWER TAKE-OFF S00005213+04 APPLICATION GP 4166 034 070 00 TORQUE CONVERTER 4644 159 347 00 GEAR SHIFT SYSTEM 4644 101 249 00 GEARBOX BODY 4644 101 491 00 GEARBOX BODY 9F855-63A080000A0 REAR SCRAPER ASSEMBLY 80396001 REAR SWING FRAME ASSEMBLY 9F853-69A010000E0 REAR MONITOR SYSTEM 9F850-27A010000A0 REAR DRIVING AXLE ASSEMBLY 9D650-08A020000B0 BREATHER SYSTEM P61Z651+A-ZC PUMP GP-FUEL 26AZ605+A LINES GP-FUEL INJECTION 19BZ606+A LINES GP-TURBOCHARGER OIL 38AZ606+A TURBOCHARGER GP 82030502 DIFFERENTIAL ASSEMBLY 82197517 DIFFERENTIAL ASSEMBLY 4644 137 022 00 EMERGENCY STEERING PUMP 4644 125 016 10 SENSOR 4644 125 479 00 SENSOR 4644 106 325 00 GEARSHIFT SYSYTEM 08BZ101+C EXHAUST EJECTION GROUP 13AZ601+A MANIFOLD GP-EXHAUST 13BZ601+C FASTENER GP 9D651-62A000001A0 APPROACH SWITCH INDUCE BOARD M7N1342+B COVER GP (BLOCK-MISE) 02AZ601+A ENGINE BLOCK M2W6953+B COOLER&FILTER GP-OIL M2P1784+C PUMP GP-ENGINE OIL M19AZ001+A LINES GP-ENGINE OIL 4642 199 076 00 RELAX PART 9F865-01A010000A0 DIESEL ENGINE AND ATTACHMENT 81770100 HOUSING ASSEMBLY 79900440 HOUSING ASSEMBLY S00010283+01 COVER GP M8N4745+A COVER GP-VALVE MECHANISM 84AZ601+B MECHANISM GP-VALVE 20AZ601+A PUMP GP-WATER M03CZ004+A GAGE GP-OIL LEVEL M8N2181+C FASTENER GP (OIL PAN) M03AZ002+C OIL SUMP PARTS 4644 121 023 00 PIPE 4644 131 419 00 INJECTING OIL JOINT 4644 131 077 00 INJECTING OIL JOINT 08AZ301+C MUFFLER GP S00010282+01 EJECTOR GP-DUST 85AZ301+B FUEL FILTER S00006412+02 LINES GP-DRAIN 9F653-66A040000A0 ELECTRICIAL SOURCE SOCKET 59AZ202+B SHUT-OFF GP-ELECTRICAL 4644 153 030 01 COUPLING 4644 152 037 02 COUPLING 4644 152 037 01 COUPLING 4644 151 034 02 COUPLING 4644 151 034 01 COUPLING 4644 153 509 00 COUPLING M47BZ005+A LINES GP-AIR COMPRESSOR M47AZ002+A COMPRESSOR GP-AIR 9F650-29A020000A0 PIPE CLAMP 4644 120 213 00 REGUATER GP-HOUSING M22AZ002+A REGULATOR & GP-HOUSING M7S3622+B MOTOR GP 83785300 WHEEL-END REDUCTION ASSEMBLY 83640300 WHEEL-END REDUCTION ASSEMBLY 4644 102 134 00 INPUT DEVICE 4644 103 107 00 OUTPUT DEVICE 4644 103 467 00 OUTPUT DEVICE 4644 138 015 00 FILTER 12BZ601+C LINES GP-AIR 12AZ302+C LINES GP-AIR M84DZ001+A DISPOSAL GP-FUMES M1P4244+A BREATHER GP M49AZ202+A TOOL KIT 16DZ301+A FAN & GUARD GP M16AZ001+A DRIVE GP-FAN M92AZ003+B HOUSING GP-FLYWHEEL M06CZ005+A FLYWHEEL GP 9G662-45A020000A0 SAFE CAB DECORATIONS ASSEMBLY 9G662-45C030000A0 CAB OUTER INSTALL ASSEMBLY

10

20

50

90

100

110

170

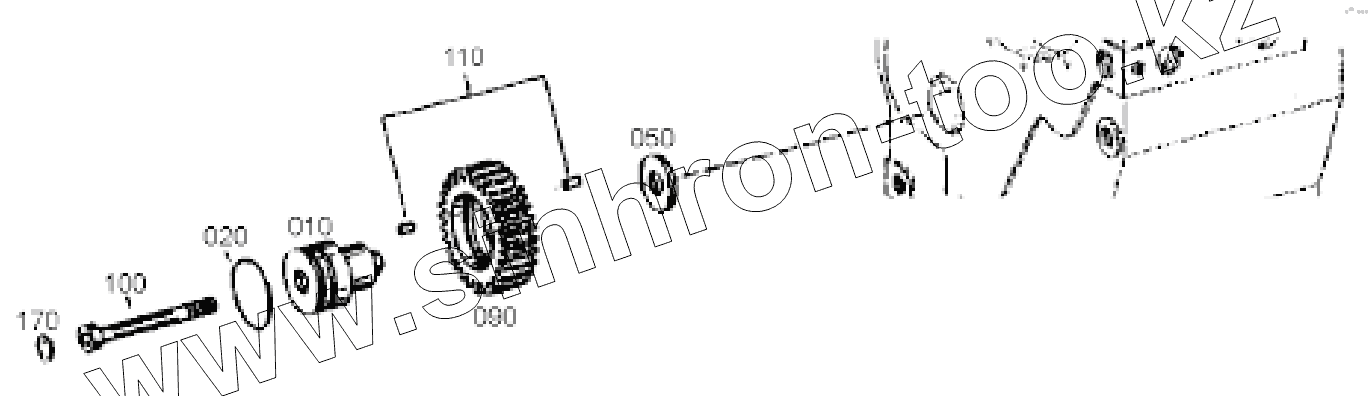

Позиция на иллюстрации	Заводской номер детали		Название детали
10	4644308611H		Shaft
20	0634313529H		O-ring
50	4644308610H		Thrust washer
90	4644308614H		Middle gear
100	636104146		Cap screw
110	0750119101H		Roller kit
170	630362024		Seal ring
