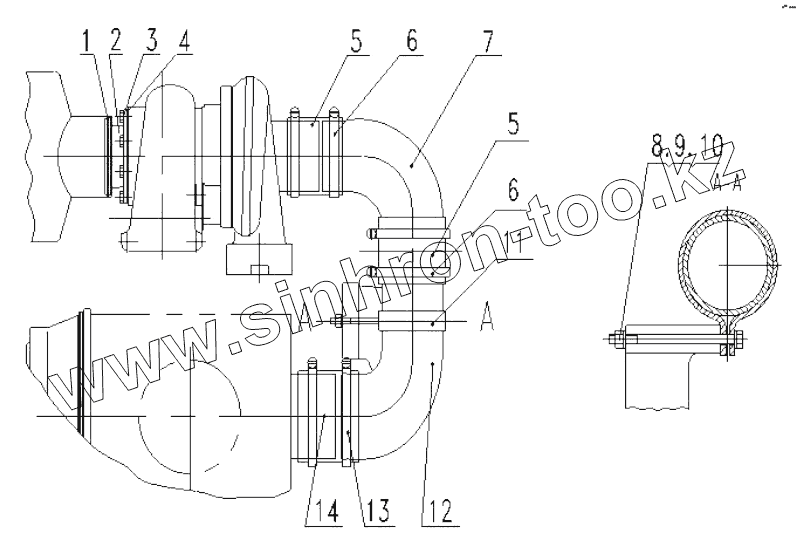

Каталог запасных частей к технике: Foton FL958G. 12BZ601+C LINES GP-AIR
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
FL917F (2009)
FL935E (2012)
FL936F (FL936FH4C1B2X1A105) (2011)
FL958G (2015)
Foton-FL936F (2007)
Foton-FL958G (2007)
TB454-Q161Y20K
TL254 (TL1A254-001K)
Схема
>
Не выбрано
9F865-01A000000A0 ENGINE MOUNT
9F865-02A000000A0 RADIATOR INSTALLATION
9F850-05A000000A0 THROTTLE CONTROL SYSTEM
9F653-08A000000A0 FUEL TANK INTALLATION
9F850-12A000000A0 JOINT ASSEMBLY
9F865-13A000000B0-ZC REAR FRAME WELD ASSEMBLY
9F653-15F000000A0 COUNTERWEIGHT
9F852-16A000000B0 FRONT FRAME APPENDIX
9F850-17A000000A0 REAR FRAME APPENDIX
9F852-23A000000A0 GEARBOX INSTALLATION
9F852-24A000000A0 GEARBOX ASSEMBLY
9F852-25B000000A0 DRIVE SHAFT INSTALLATION
9F653-26A000000A0 FRONT AXLE INSTALLATION
9F850-27A000000B0 REAR AXLE INSTALLATION
9F859-29B000000A0 PARKING AND AUXILIARY BRAKING SYSTEM
9F865-32A000000A0 TRANSMISSION OIL COOLING OIL-WAY
9F850-34A000000A0 WHEEL ASSEMBLY
9F865-35A000000A0 BRAKING PRESSURE SUPPLY SYSTEM
9F865-36A000000A0 BRAKE CONTROL SYSTEM
9F850-37A000000B0 DRIVE AXLE PIPE SYSTEM
9F850-44B000000A0 SEAT INSTALLATION ASSEMBLY
9G662-45C000000A0 CAB ASSEMBLY
9G662-46A000000B0 FLOOR PLATFORM INSTALLATION ASSEMBLY
9F865-47A000000B0 HOOD ASSEMBLY
9F658-48A000000A0 MUDGUARD ASSEMBLY
9F865-54A000000A0 STEERING HYDRAULIC SYSTEM
9F852-56A000000B0 OIL PUMP SYSTEM
9F657-57A000000A0 HYDRAULIC RADIATOR SYSTEM
9F865-58A000000A0 HYDRAULIC OIL TANK ASSEMBLY
9F859-59D000000A0 HYDRAULIC CONTROL SYSTEM
9F653-62E000000A0 FRONT FRAME WIRING
9G662-63B000000A0 CAB WIRING
9F865-64B000000A0 REAR FRAME WIRING
9F653-65B000000A0 BATTERY WIRING INSTALLATION
9G662-66E000000A0 INSTRUMENT INSTALLATION
9F664-68A000000A0 AIR CONDITIONER SYSTEM
9F853-69A100000D0 PILOT CONTROL MECHANISM
9F853-69A030000A0 RADIOGRAM ASSEMBLY
9F853-69A080000A0 ELECTRIC FAN ASSEMBLY
9F858-72A000000B0 LINK MECHANISM
9F858-73L000000B0 STANDARD BUCKET ASSEMBLY
9F850-76A000000B0 WORKING IMPLEMENT ACCESSORY
4644 108 232 00 LAYSHAFT LAYSHAFT
82902500 MAIN REDUCER SHELL ASSEMBLY
4644 109 040 01 PARKING BRAKE
4644 109 438 00 PARKING BRAKE
4644 109 040 02 PARKING BRAKE
M2W6779+C LINES GP-WATER
09AZ601+A CAMSHFT ASS'Y
58000032 BRAKES HOE ASSEMBLY
82395500 FRONT MAIN REDUCER ASSEMBLY
M8N0107+A TRUNNION GP
9F653-26A010000A0 FRONT DRIVING AXLE ASSEMBLY
M1W3792+A COVER GP (FRONT HOUSING)
M8N0872+A FASTENER GP (FRONT HOUSING)
82AZ601+A HOUSING GP-FRONT
4644 154 080 00 POWER TAKE-OFF
4644 155 031 00 POWER TAKE-OFF
4644 155 420 00 POWER TAKE-OFF
84785300 BRAKE ASSEMBLY
33BZ002+A SUPPORT GP-ENGINE
M33AZ101+A SUPPORT GP-ENGINE
4644 130 263 00 ENGINE CONNECTING ASSEMBLY
4644 154 476 00 POWER TAKE-OFF
S00005213+04 APPLICATION GP
4166 034 070 00 TORQUE CONVERTER
4644 159 347 00 GEAR SHIFT SYSTEM
4644 101 249 00 GEARBOX BODY
4644 101 491 00 GEARBOX BODY
9F855-63A080000A0 REAR SCRAPER ASSEMBLY
80396001 REAR SWING FRAME ASSEMBLY
9F853-69A010000E0 REAR MONITOR SYSTEM
9F850-27A010000A0 REAR DRIVING AXLE ASSEMBLY
9D650-08A020000B0 BREATHER SYSTEM
P61Z651+A-ZC PUMP GP-FUEL
26AZ605+A LINES GP-FUEL INJECTION
19BZ606+A LINES GP-TURBOCHARGER OIL
38AZ606+A TURBOCHARGER GP
82030502 DIFFERENTIAL ASSEMBLY
82197517 DIFFERENTIAL ASSEMBLY
4644 137 022 00 EMERGENCY STEERING PUMP
4644 125 016 10 SENSOR
4644 125 479 00 SENSOR
4644 106 325 00 GEARSHIFT SYSYTEM
08BZ101+C EXHAUST EJECTION GROUP
13AZ601+A MANIFOLD GP-EXHAUST
13BZ601+C FASTENER GP
9D651-62A000001A0 APPROACH SWITCH INDUCE BOARD
M7N1342+B COVER GP (BLOCK-MISE)
02AZ601+A ENGINE BLOCK
M2W6953+B COOLER&FILTER GP-OIL
M2P1784+C PUMP GP-ENGINE OIL
M19AZ001+A LINES GP-ENGINE OIL
4642 199 076 00 RELAX PART
9F865-01A010000A0 DIESEL ENGINE AND ATTACHMENT
81770100 HOUSING ASSEMBLY
79900440 HOUSING ASSEMBLY
S00010283+01 COVER GP
M8N4745+A COVER GP-VALVE MECHANISM
84AZ601+B MECHANISM GP-VALVE
20AZ601+A PUMP GP-WATER
M03CZ004+A GAGE GP-OIL LEVEL
M8N2181+C FASTENER GP (OIL PAN)
M03AZ002+C OIL SUMP PARTS
4644 121 023 00 PIPE
4644 131 419 00 INJECTING OIL JOINT
4644 131 077 00 INJECTING OIL JOINT
08AZ301+C MUFFLER GP
S00010282+01 EJECTOR GP-DUST
85AZ301+B FUEL FILTER
S00006412+02 LINES GP-DRAIN
9F653-66A040000A0 ELECTRICIAL SOURCE SOCKET
59AZ202+B SHUT-OFF GP-ELECTRICAL
4644 153 030 01 COUPLING
4644 152 037 02 COUPLING
4644 152 037 01 COUPLING
4644 151 034 02 COUPLING
4644 151 034 01 COUPLING
4644 153 509 00 COUPLING
M47BZ005+A LINES GP-AIR COMPRESSOR
M47AZ002+A COMPRESSOR GP-AIR
9F650-29A020000A0 PIPE CLAMP
4644 120 213 00 REGUATER GP-HOUSING
M22AZ002+A REGULATOR & GP-HOUSING
M7S3622+B MOTOR GP
83785300 WHEEL-END REDUCTION ASSEMBLY
83640300 WHEEL-END REDUCTION ASSEMBLY
4644 102 134 00 INPUT DEVICE
4644 103 107 00 OUTPUT DEVICE
4644 103 467 00 OUTPUT DEVICE
4644 138 015 00 FILTER
12BZ601+C LINES GP-AIR
12AZ302+C LINES GP-AIR
M84DZ001+A DISPOSAL GP-FUMES
M1P4244+A BREATHER GP
M49AZ202+A TOOL KIT
16DZ301+A FAN & GUARD GP
M16AZ001+A DRIVE GP-FAN
M92AZ003+B HOUSING GP-FLYWHEEL
M06CZ005+A FLYWHEEL GP
9G662-45A020000A0 SAFE CAB DECORATIONS ASSEMBLY
9G662-45C030000A0 CAB OUTER INSTALL ASSEMBLY
1
2
3
4
5
5
6
6
7
8
9
10
11
12
13
14
Позиция на иллюстрации
Заводской номер детали
Название детали
1
5L8854+A
Seal ring-metal
2
12BL610+B
Coupling-turbocharger exhaust
3
13BL612+A
Heatproof hexagon bolt
4
12BL605+A
Washer
5
B00002282
Water pipe
6
B00001532
Spring clamp
7
12BL601+B
Elbow-turbo. Compr. Inlet
8
B00000377
Bolt
9
B00000766
Hexagon nut
10
B00001275
Washer-hard
11
12BL010A+A
Lock-hoop
12
12BL044+C
Pipe as.-air transfer
13
B00001533
Spring clamp
14
B00002290
Rubber hose
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
