Каталог запасных частей к технике: Foton FL936F (FL936FH4C1B2X1A105). B00745+ZL30.12-00 Breather assembly

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано FL917F (2009) FL935E (2012) FL936F (FL936FH4C1B2X1A105) (2011) FL958G (2015) Foton-FL936F (2007) Foton-FL958G (2007) TB454-Q161Y20K TL254 (TL1A254-001K)

Схема > Не выбрано 9D651-01А000000А0 Enging assembling 9D650-08A000000A0 Fuel tank assembling 9D651-02A000000A0 Radiator assembly 9D651-03A000000A0 Preheating system 9D651-05A000000A0 Throttle control system 9D651-06B000000A0 Flameout device 9D650-11B000000B0 Front frame weldment assembly 9D650-12A000000A0 Joint assembly 9D650-13A000000B0 Rear frame weldment assembly 9D650-14A000000B0 Auxiliary frame assembly 9D650-15A000000A1 Ballast 9D650-16A000000B0 Front frame accessories 9D650-17A000000A0 Rear frame accessories 9D650-21A000000A0 Converter assembling 9D650-23A000000A0 Gearbox assembling 9D652-24A000000A0 Gearbox assembly B00508+9D652-24A000000A0 ZL20AX32 Hangchi gearboxy assembly ZL20AX32 B00508+ZL20-037000X17A Gearbox oil filling pipe assembly B00508+ZL20-030001-71 Gearbox body components B00508+ZL20-030100A Ventilator Assembly B00508+ZL20-036000X1 Reverse Gear Shaft Assembly B00508+ZL20-033000X1 Intermediate Shaft Assembly B00508+ZL20-032100 Clutch Assembly B00508+ZL20-030072-77 Output shaft assembly B00508+ZL20-032000X1 Input Shaft Assembly B00508+ZL20-030044-55 High-low gear shift fork mechanism B00508+ZL20-038000J Hand Brake Assembly b00745+9d652-24a000000a0 Zl30-IV Jingyi gearboxy assembly ZL30-IV B00508+ZL20-037000X17A Gearbox oil filling pipe assembly B00745+ZL30.01-00 Gearbox body components B00745+ZL30.12-00 Breather assembly B00745+ZL30.10-00 Reverse Gear Shaft Assembly B00745+ZL30.04-00 Intermediate Shaft Assembly B00745+ZL30.02-00 Output shaft assembly B00745+ZL30.03-00 Input Shaft Assembly B00745+ZL30.10-00.01 Clutch Assembly B00745+ZL30.08-00 High-low gear shift fork mechanism B00745+ZL30.13-00 Hand brake assembly B00745+ZL428-00 Gearbox control valve assembly 9D650-25A000000A0 Transmission shaft assembling B02313+9D650-25A010000A0 Weifang Yuandong front transmission shaft assembly B02313+9D650-25A030000A0 Weifang Yuandong middle transmission shaft assembly B02313+9D650-25A040000A0 Weifang Yuandong rear transmission shaft assembly B02313+9D650-25A050000A0 Weifang Yuandong main transmission shaft assembly 9D650-26C000000B0 Front drive axle assembly B00256+9D650-26C010000B0 XPRC1132D027 Xuzhou Meichi frontaxle assembly XPRC1132D027 B00256+83351200 Hub Reducer Assembly В00256+84688301 Brake caliper assembly В00256+81350100 Axle housing assembly В00256+82350200 Main reductor assembly B00256+82214207 Differential assembly 9D650-27C000000B0 Rear drive axle assembly B00256+9D650-27C010000B0 XPRC1132D028-1 Xuzhou Meichi rear axle assembly B00256+9D650-27C010000B0 XPRC1132D028-1 Xuzhou Meichi rear axle assembly B00256+83351200 Hub Reducer Assembly В00256+84688301 Brake caliper assembly В00256+81350100 Axle housing assembly В00256+82351100 Main reductor assembly B00256+82214207 Differential assembly 9D650-29B000000B0 Parking and auxiliary brake system 9D651-31A000000A0 Oil pipeline of converter gearbox 9D651-32A000000B0 Transmission oil radiator connecting pipeline 9D650-33A000000A0 Transmission system oil return pipeline 9D650-34A000000B0 Wheel assembly 9D651-35A000000A0 Brake pressure system 9D650-36A000000B0 Brake control system B00951+9D650-36A020000A0 Wuhu Shengli air compressor B00190+9D650-36A020000A0 Chongqing Huipu air compressor 9D650-37C000000B0 Drive axle pipeline system 9D650-38B000000A0 Power cutoff system 9D650-44B000000A0 Seat assembly B00516+9D650-44B010000A0 Zhejiang Tiancheng seat assembly B01413+9D650-44B010000A0 Somet seat assembly 9D650-45A000000B0 Cab assembley 9D650-45A020000A0 Cab upholstery assembly 9D650-45A030000B0 Cab exterior mountings assembly 9D650-46D000000B0 Floor assembly 9D651-47D000000A0 Bonnet assembly 9D650-48B000000A0 Mudguard and cover plate assembly 9D650-54A000000B0 Steering hydraulic system 9D650-54A000000B0 Steering hydraulic system 9D650-54A000000B0 Steering hydraulic system 9D651-55A000000B0 Working cylinder system 9D651-55A000000B0 Working cylinder system 9D651-55A000000B0 Working cylinder system 9D651-55A000000B0 Working cylinder system 9D651-56A000000B0 Working oil pump system 9D650-58B000000A0 Hydraulic oil tank 9D651-59A000000B0 Hydraulic control system 9D651-62A000000A0 Front frame wiring 9D651-63E000000B0 Cab wiring 9D651-64D000000B0 Rear frame wiring 9D650-65B000000A0 Battery wiring and assembling 9D651-66F000000B0 Instrument assembly 9D651-66F000000B0 Instrument assembly 9D651-66F000000B0 Instrument assembly 9D651-68B000000A0 Air conditioner system B01231+9F850-68A020000A0 Xinxiang Zhenhua evaporator ZHZ-6 B00378+9F850-68A020000A0 GQZ-84 Xinxiang Yuxin evaporator 9F853-69A030000A0 Radio and player assembly 9D650-72A000000A0 Link mechanism 9D650-73A000000A0 Bucket assembly 9D650-76A000000B0 Work implement attachments 9D650-83A000000A0 Transmission control system 9D651-84A000000A0 High-low gear control system

1

2

3

4

5

6

7

8

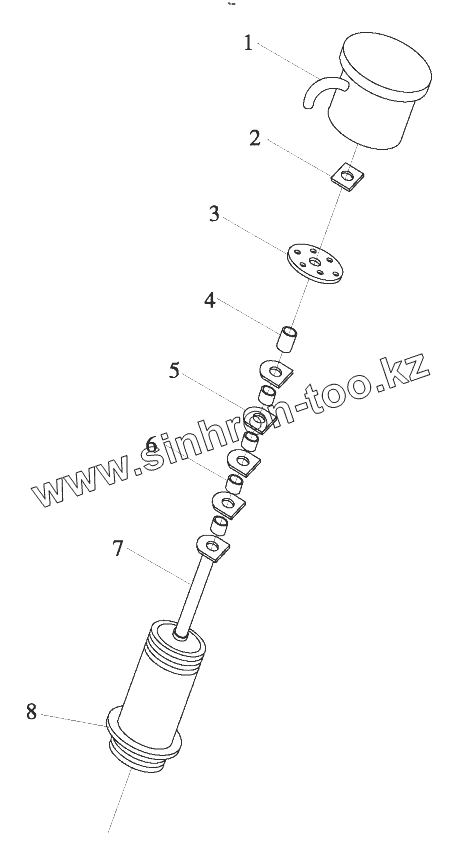

Позиция на иллюстрации	Заводской номер детали		Название детали
1	B00745+ZL30.12-01		Ventilator cover assembly
2	GBT6170-M6-5-A3L		Square nut
3	B00745+ZL30.12-08		Ventilating fan
4	B00745+ZL30.12-06		Long spacing sleeve
5	B00745+ZL30.12-07		Ventilating piece
6	B00745+ZL30.12-05		Short spacing sleeve
7	B00745+ZL30.12-04		Long bolt
8	B00745+ZL30.12-02		Breather housing

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
