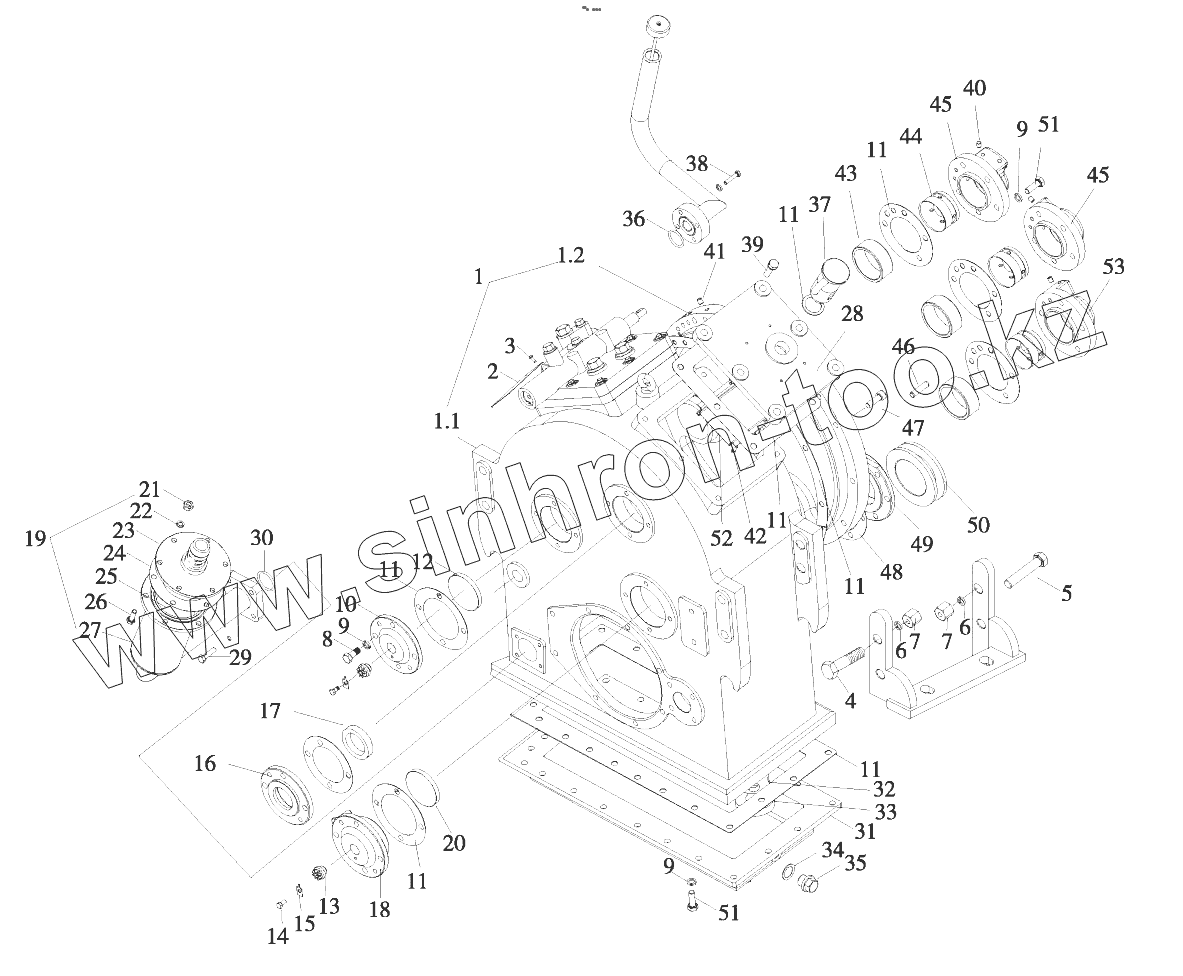

Каталог запасных частей к технике: Foton FL936F (FL936FH4C1B2X1A105). B00508+ZL20-030001-71 Gearbox body components
1
1.1
1.2
2
3
4
5
6
6
7
7
8
9
9
9
10
11
11
11
11
11
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
45
46
47
48
49
50
51
51
52
53
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | B00508+ZL20-030001A/1000B | Gearbox body and big end cover assembly | |
| 1.1 | B00508+ZL20-030001A | Gearbox body | |
| 1.2 | B00508+ZL20-031000B | Gearbox big end cover | |
| 2 | B00508+403091 | Name plate | |
| 3 | JB4005-1985-3.2X7 | Name plate rivet | |
| 4 | GBT5783-M16X80-8.8-A3L | Hex bolt | |
| 5 | GBT5783-M16X75-8.8-A3L | Hex bolt | |
| 6 | GBT93-16-A0P | Spring washer | |
| 7 | 6BT6170-M16-8-A3L | Typ1 hex nut | |
| 8 | GBT5783-M16X75-8.8-A3L | Hex bolt | |
| 9 | 6BT93-10-A0P | Standard spring washer | |
| 10 | B00508+ZL20-30003 | End cap | |
| 11 | B00508+ZL20-030040-63 | Gasket | |
| 12 | B00508+ZL20-030005 | Adjusting ring | |
| 13 | B00508+ZL20-030006 | Adjusting screw | |
| 14 | GBT5783-M6X6-8.8-A3L | Hex bolt | |
| 15 | B00508+ZL20-030004 | Thrust piece | |
| 16 | B00508+ZL20-030008 | Input shaft end cover | |
| 17 | GBT9877.1-FB45X62X12F | Lip-shape seal ring | |
| 18 | B00508+ZL20-030058 | Intermediate shaft end cover | |
| 19 | B00508+ZL20-030062W1 | Oil filter assembly | |
| 20 | B00508+ZL20-030059 | Adjusting gasket of intermediate shaft | |
| 21 | 6BT6170-M8-8-A3L | Type 1 hex nut | |
| 22 | 6BT93-8-A0P | Standard spring washer | |
| 23 | B00508+ZL20-030062-3W1 | Flange joint | |
| 24 | B00508+ZL20-030062-4 | Paper spacer | |
| 25 | B00508+WU-100X100-J | Filter cartridge | |
| 26 | GBT5783-M8X25-8.8-A3L | Hex bolt | |
| 27 | B00508+ZL20-030062-1W1/2W1 | Tube assembly | |
| 28 | B00508+ZL20-030039B | Gearbox cover | |
| 29 | GBT5783-M8X30-8.8-A3L | Hex bolt | |
| 30 | B00508+Q26-01-50X4 | O-ring | |
| 31 | B00508+ZL20-034001 | Oil sump assembly | |
| 32 | B00508+ZL20-030007 | Oil suction pipe | |
| 33 | B00508+ZL20-030043 | permanent magnet | |
| 34 | B00508+ZL20-034004 | Washer | |
| 35 | B00508+ZL20-034005 | Screw plug | |
| 36 | GB1235-1976-40X3.1 | O-ring | |
| 37 | B00508+ZL20-030100A | Ventilator assembly | |
| 38 | GBT5783-M8X30-8.8-A3L | Hex bolt | |
| 39 | GBT5783-M10X35-8.8-A3L | Hex bolt | |
| 40 | B00508+Q21-34-7 | Plug | |
| 41 | B00508+ZL20-031005 | Plug | |
| 42 | GBT867-4X18-A2L | Round head rivet | |
| 43 | B00508+ZL20-030032 | Bushing | |
| 44 | B00508+ZL20-035002 | Outer oil seal sleeve | |
| 45 | B00508+ZL20-035001/A | Oil inlet end cover | |
| 46 | GBT119.1-10m6X40-A1 | Column pin | |
| 47 | GBT70.1-M10X30-8.8-A3L | Screw | |
| 48 | B00508+ZL20-030022 | Adjusting gasket of output shaft | |
| 49 | B00508+ZL20-030026 | Front output shaft oil seal cover | |
| 50 | GBT9877.1-FB65X90X10F | Lip-shape seal ring | |
| 51 | GBT5783-M10X30-8.8-A3L | Hex bolt | |
| 52 | B00508+ZL20-030060 | Oil cover | |
| 53 | B00508+ZL20-035001/C | Oil inlet end cover |
