Каталог запасных частей к технике: Foton FL936F (FL936FH4C1B2X1A105). 9D651-66F000000B0 Instrument assembly
1
2
3
4
5
6
7
8
8.1
8.2
8.3
8.4
8.5
8.6
8.7
8.8
8.9
8.10
10
10
10
11
12
13
14
15
16

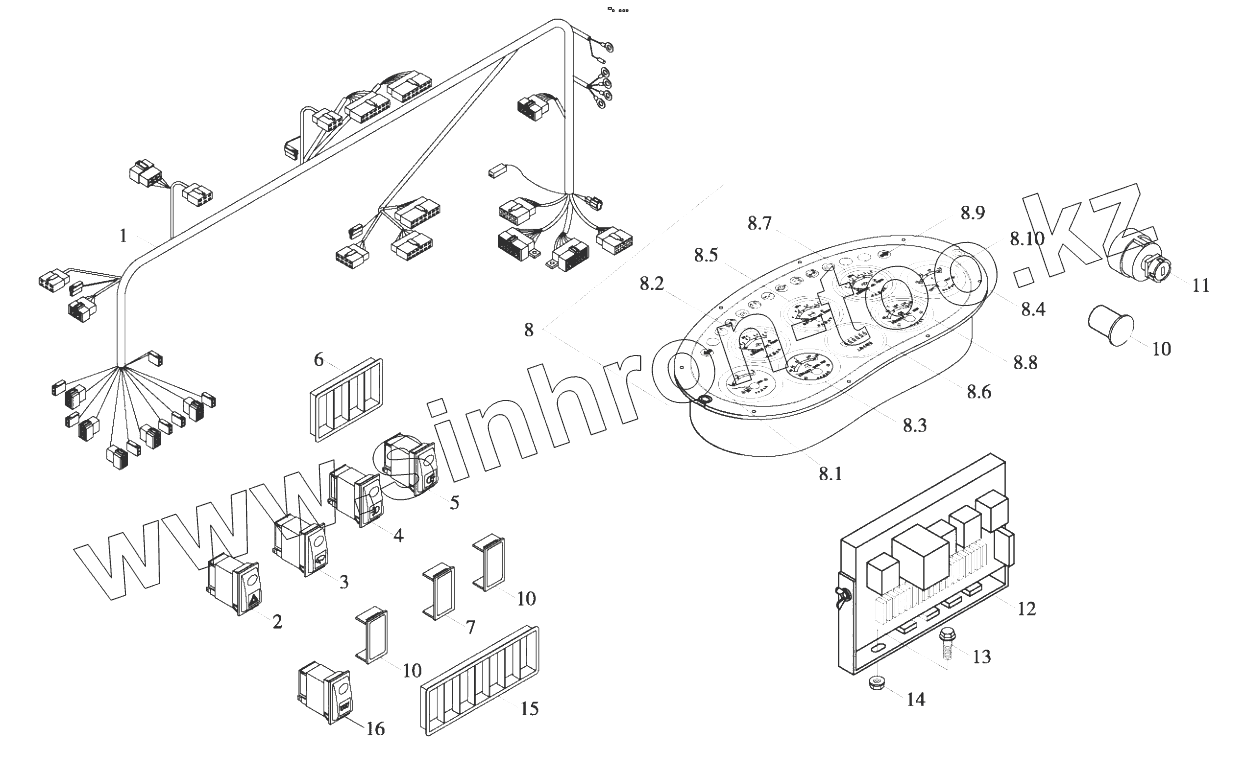

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 9D651-66A010000B0 | Instrument harness | |
| 2 | 9F850-66A100000A0 | Hazard warning switch | |
| 3 | 9F850-66A080000A0 | Switch of frt. Working lamp | |
| 4 | 9F850-66A090000A0 | Frame | |
| 5 | 9F850-66A120000A0 | Rear work lamp switch | |
| 6 | 9F850-66A000002A0 | Four-function rocker switch frame | |
| 7 | 9F850-66A000001A0 | Cover plate of rocker switch | |
| 8 | 9F850-66A020000A0 | Instrument | |
| 8.1 | 9F850-66A020700A0 | Fuel meter | |
| 8.2 | 9F850-66A020400A0 | Engine oil pressure meter | |
| 8.3 | 9F850-66A020200A0 | Engine water pressure meter | |
| 8.4 | 9F850-66A020100A0 | Housing | |
| 8.5 | 9F850-66A020600A0 | Brake pressure gauge | |
| 8.6 | 9F850-66A020900A0 | Hours meter | |
| 8.7 | 9F850-66A020500A0 | Oil pressure meter | |
| 8.8 | 9F850-66A020300A0 | Oil temperature meter of transmission | |
| 8.9 | 9F850-66A020010A0 | Indicator lamp bulb | |
| 8.10 | 9F850-66A020800A0 | Voltage meter | |
| 9 | 9D650-66A030000A0 | Steering column assembly | |
| 9.1 | 9F653-66A030300A0 | Steering wheel | |
| 9.2 | 9F850-66A030100A0 | Compound switch | |
| 9.3 | 9F850-66A030400A0 | Housing | |
| 9.4 | 9D650-66A030200A0 | Steering column | |
| 9.4.1 | 9F350-66A030201A0 | Gearshift lever | |
| 9.4.2 | 9D550-66A030202A0 | Shift fork | |
| 9.4.3 | 9D650-66A030210A0 | Steering lever | |
| 10 | 9F653-66A040000A0 | Electricial source socket | |
| 11 | 9F850-66A050000A0 | Key switch | |
| 12 | 9F855-66A060000A0 | Central control box | |
| 12.1 | 9F850-66A060100A0 | Electric box housing | |
| 12.2 | 9F850-66A060400A0 | Flasher | |
| 12.3 | 9F850-66A060300A0 | 40A relay | |
| 12.4 | 9F855-66A060004A0 | 30A fuse | |
| 12.5 | 9F850-66A060003A0 | Fuse | |
| 12.6 | 9F850-66A060002A0 | Fuse | |
| 12.7 | 9F850-66A060200A0 | Bracket | |
| 12.8 | 9F850-66A060001A0 | 40A fuse | |
| 13 | GBT5789-M8x16-8.8-A3L | Hex flange bolt | |
| 14 | GBT6177.1-M8-8-A2L | Nut | |
| 15 | 9F850-66A000003A0 | Seven piece combined rocker switch | |
| 16 | 9F850-66A110000A0 | Preheating switch | |
| 17 | GBT5789-M12x40-8.8-A3L | Hex flange bolt | |
| 18 | GBT97.1-12-A0P | Washer | |
| 19 | GBT6177.1-M12-8-A2L | Hex flange nut |
