Каталог запасных частей к технике: Foton FL936F (FL936FH4C1B2X1A105). 9D651-59A000000B0 Hydraulic control system
1
5
6
7
8
9
10
11
12
13
14
16
18
22
22
22
30
39
39
40
40
42
42
43
43
43
44
47

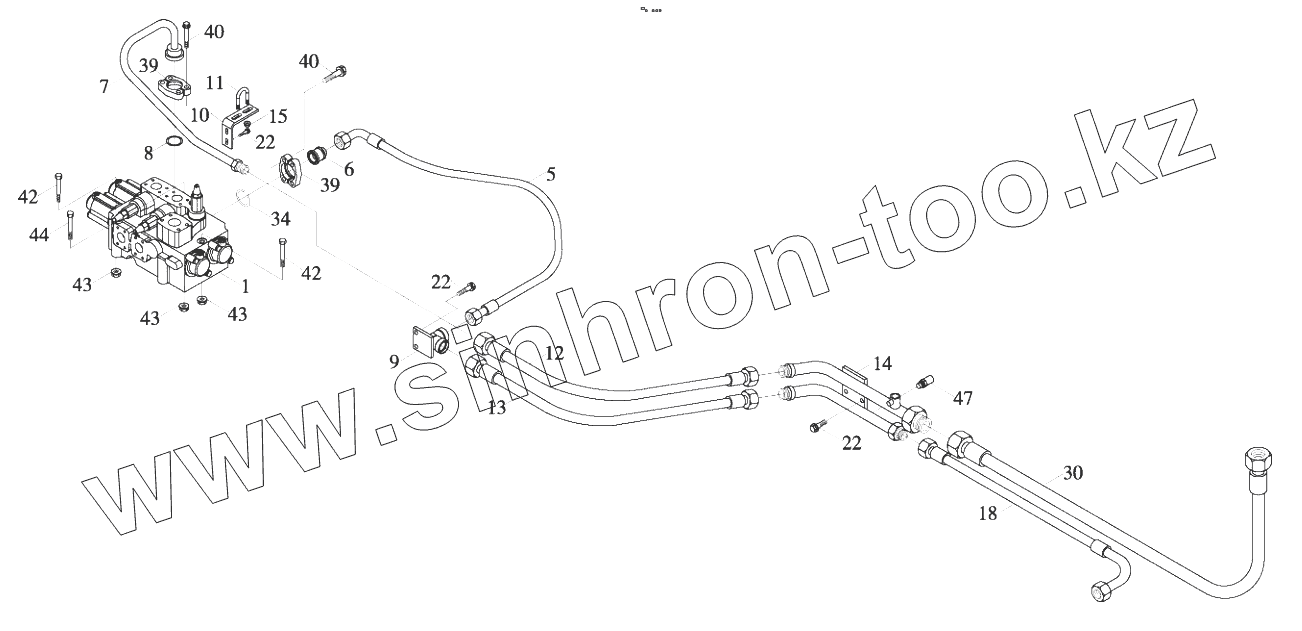

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 9D651-59A010000A0 | Multi-way valve | |
| 2 | QLWZG056.2-0042750 | Taper hose assembly | |
| 3 | QLWZG074-001414 | Straight joint | |
| 4 | 9D651-59A030000B0 | Lifting arm big cavity oil pipe | |
| 5 | 9D651-59A040000B0 | Oil pipe into valve | |
| 6 | IS03601-47.22X3.53-90 | O-ring | |
| 7 | 9D651-59A050000B0 | Valve oil return pipe | |
| 8 | IS03601-47.22X3.53-70 | O-ring | |
| 9 | 9D650-59A000002A0 | Clip | |
| 10 | GBT5782-M10X50-8.8-A3L | Bolt | |
| 11 | GBT93-10-A0P | Washer | |
| 12 | QLWZG056.3-0160870 | 246taper hose assembly | |
| 13 | QLWZG059.3-0160870 | 246taper hose assembly | |
| 14 | 9D652-59A050000A0 | Compound tube | |
| 16 | 2BT93-12-A0P | Standard spring washer | |
| 17 | 9D651-59A060000A0 | Four-way joint | |
| 18 | 9D652-59A070000A0 | Pump oil outlet pipe | |
| 19 | 9D651-59A070000B0 | 0il return pipe | |
| 20 | 92650-59A060000A0 | Tee joint | |
| 21 | 9D651-59A090000A0 | Bending plate assembly | |
| 22 | GBT5783-M10X25-8.8-A3L | Hex bolt | |
| 23 | QLWZG074-001814D | Straight joint | |
| 24 | QLWZG074-001614D | Straight joint | |
| 25 | GBT5782-M10X55-8.8-A2L | Hex bolt | |
| 26 | 9F850-59A120000A0 | Pressure selection valve | |
| 27 | 9D651-59A110000А0 | Oil return pipe of pilot valve | |
| 28 | QLWZG077-001414 | Right angle adjustable joint | |
| 29 | QLWZG056.2-0040560 | 246taper hose assembly | |
| 30 | QLWZG056.3-0201300 | 24°taper hose assembly | |
| 31 | 9F850-59A060000A0 | Pilot valve | |
| 32 | GBT70.1-M10X25-8.8 | Hexagon socket cap head screw | |
| 33 | QLWZG074-002218 | Straight joint | |
| 35 | QLWZG074-003027D | Straight joint | |
| 36 | QLWZG056.2-0120820 | 246taper hose assembly | |
| 37 | 9D651-59A140000B0 | Pilot pump overflow pipe | |
| 38 | 9D651-59A150000B0 | Pump oil outlet pipe | |
| 39 | QLWZG090-024451 | Separated flange | |
| 40 | GBT5783-M12X35-8.8-A3L | Bolt | |
| 41 | QLWZG056.2-0042700 | 246taper hose assembly | |
| 42 | 9D651-59A000001A0 | Bolt M12X170 | |
| 43 | 5BT6170-M12-8-A3L | Type 1 hex nut | |
| 44 | 9F850-59A000005A0 | Bolt M12X150 | |
| 45 | QLWZG056.2-0042950 | 246taper hose assembly | |
| 46 | QLWZG078-002222 | Rectangular compound joint | |
| 47 | 9F850-59A190000A0 | Plug for measuring pressure m14x1.5ed |
