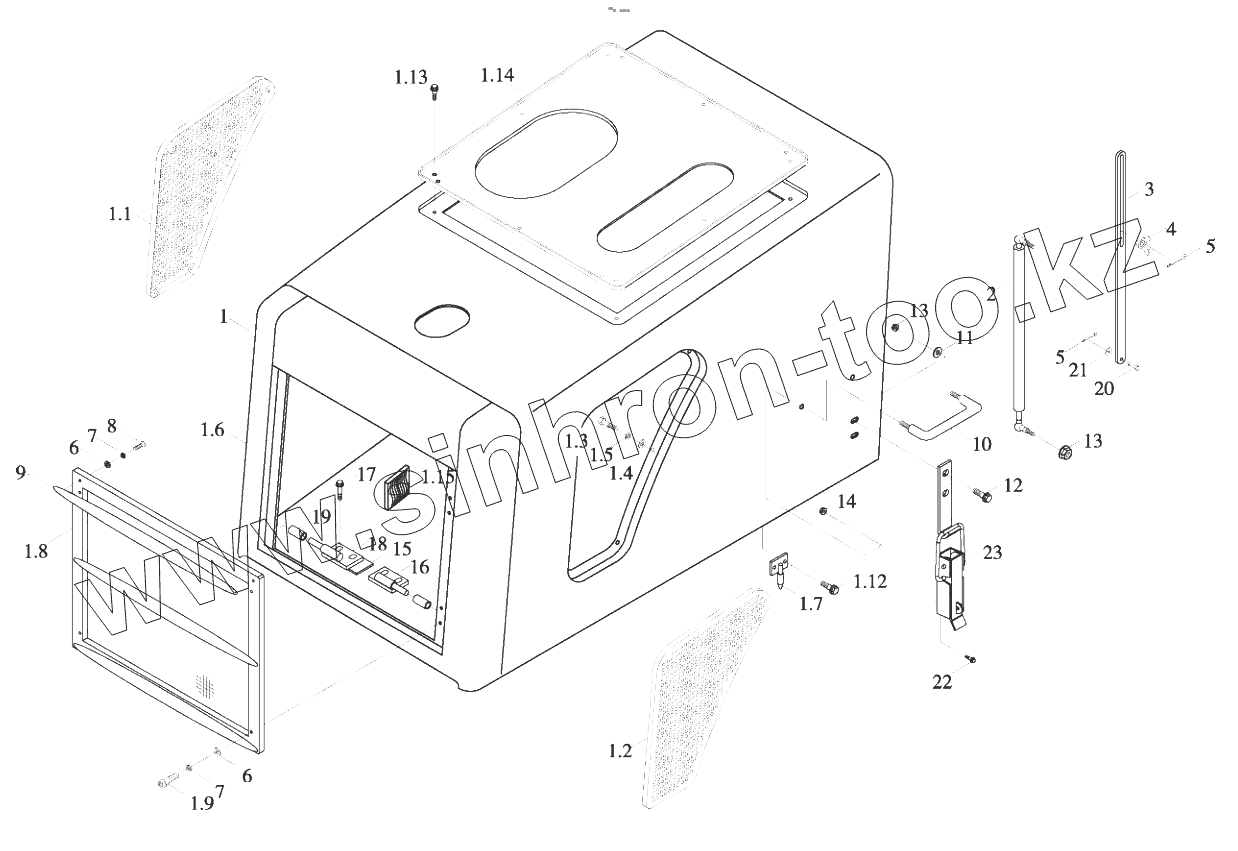

Каталог запасных частей к технике: Foton FL936F (FL936FH4C1B2X1A105). 9D651-47D000000A0 Bonnet assembly
1
1.1
1.2
1.3
1.4
1.5
1.6
1.7
1.8
1.9
1.12
1.13
1.14
1.15
2
3
4
5
5
6
6
7
7
8
9
10
11
12
13
13
14
15
16
17
18
19
20
21
22
23
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 9D651-47D030000A0 | Bonnet assembly | |
| 1.1 | 9D650-47A030300A0 | Left side window weldment | |
| 1.2 | 9D650-47A030400A0 | Right side window weldment | |
| 1.3 | GBT5783-M5xi0-8.8-A2L | Hex bolt | |
| 1.4 | GBT97.1-5-A0P | Plain washer | |
| 1.5 | GBT93-5-A0P | Normal type single coil spring lock washer | |
| 1.6 | 9D651-47A030A00B0 | Bonnet welding assembly | |
| 1.7 | 9D650-47A030300B0 | Stop pin components | |
| 1.8 | 9D650-47A030200A0 | Rear windscreen assembly | |
| 1.9 | GBT70.2-M6x30-8.8-A2L | Hexagon socket button head screw | |
| 1.12 | GBT16674.1-M10x20-8.8-A2L | Hex flange bolt | |
| 1.13 | GBT16674.1-M6x12-8.8-A2L | Hex flange bolt | |
| 1.14 | 9D651-47A030001B0 | Bonnet upper plate | |
| 1.15 | 9F850-47B030001A0 | Insulation material | |
| 2 | 9D650-47A040000B0 | Air spring | |
| 3 | 9D650-47A000002A0 | Guide plate | |
| 4 | DBT62-M10-A3L | Wing nut | |
| 5 | GBT91-3.2x20-A0P | Split pin | |
| 6 | GBT97.1-6-A0P | Plain washer | |
| 7 | DBT93-6-A0P | Standard spring washer | |
| 8 | GBT818-M6x25-4.8-A2L | Cross recessed pan head screw | |
| 9 | 9F850-47A000001A0 | Rear windscreen seal strip | |
| 10 | 9F850-47A050000A0 | Front handle | |
| 11 | GBT96.1-10-A0P | Big washer | |
| 12 | GBT5789-M10x25-8.8-A2L | Hex flange bolt | |
| 13 | GBT6177.1-M10-8-A3L | Nut | |
| 14 | GBT6177.1-M12-8-A3L | Nut | |
| 15 | 9F850-47A000005A0 | Adjusting gasket | |
| 16 | 9D650-47A030500A0 | Right rotation shaft components | |
| 17 | GBT16671.1-M16x35-8.8-A2L | Hex flange bolt | |
| 18 | 9D650-47A030600A0 | Left rotation shaft components | |
| 19 | 9F850-47A000004A0 | Shaft bush | |
| 20 | GBT882-B8x40 | Shaft pin | |
| 21 | GBT96.1-8-A0P | Big washer | |
| 22 | GBT5789-M8x16-8.8-A2L | Hex flange bolt | |
| 23 | 9D650-47A070000B0 | Bonnet lock |
