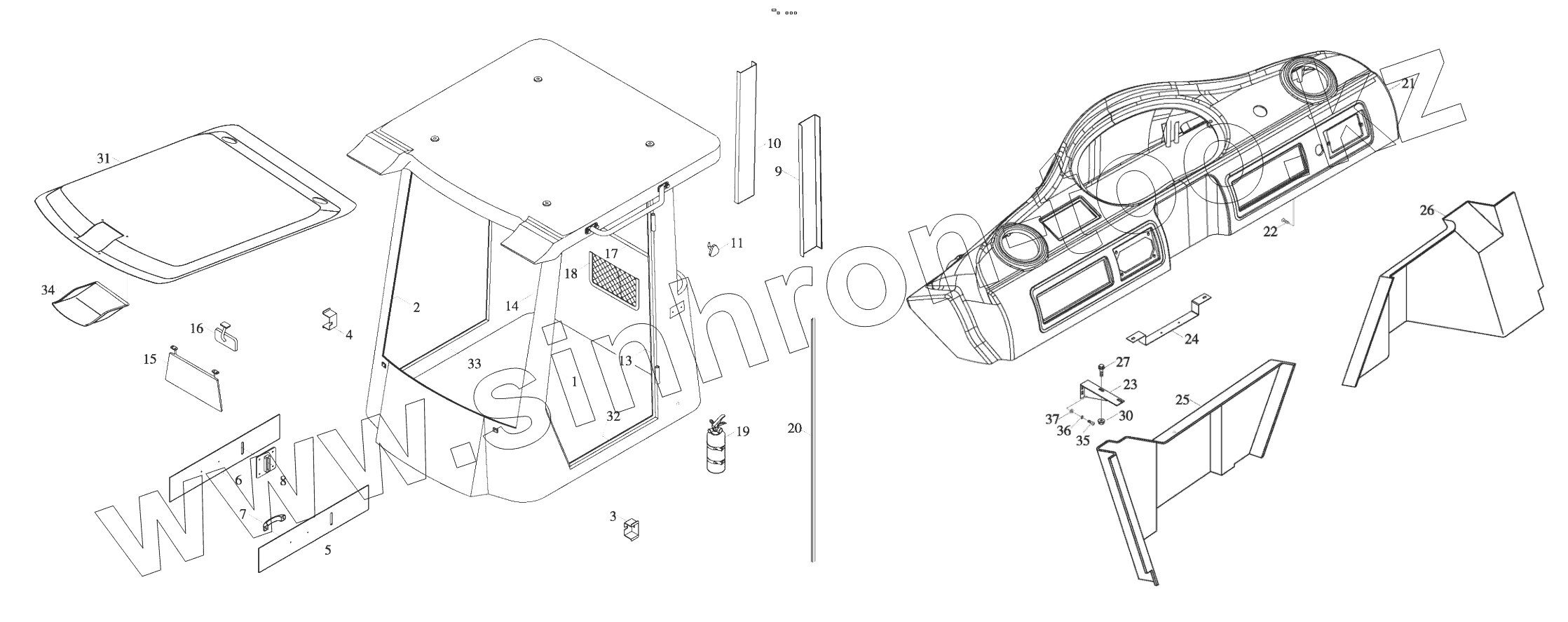

Каталог запасных частей к технике: Foton FL936F (FL936FH4C1B2X1A105). 9D650-45A020000A0 Cab upholstery assembly
1
2
3
4
5
6
7
8
9
10
11
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
30
31
32
33
34
35
36
37
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 9D650-45A020010A0 | Left front pillar interior trimming plate | |
| 2 | 9D650-45A020011A0 | Right front pillar interior trimming plate | |
| 3 | 9F850-45A020019A0 | Left door lock cover | |
| 4 | 9F850-45A020020A0 | Right door lock shield | |
| 5 | 9F850-45A020005A0 | Left door trimming board | |
| 6 | 9F850-45A020006A0 | Right door trimming board | |
| 7 | 9F850-45A020018A0 | Knob | |
| 8 | 9F850-45A020021A0 | Door fixing lock cover | |
| 9 | 9D650-45A020001A0 | Left rear pillar interior trimming plate | |
| 10 | 9D650-45A020002A0 | Right rear pillar interior trimming board | |
| 11 | 9F850-45A020022A0 | Fire extinguisher assembly | |
| 13 | 9D650-45A020003A0 | Left rear wall trimming board | |
| 14 | 9D650-45A020004A0 | Right rear wall trimming board | |
| 15 | 9D650-45A020200A0 | Sun visor assembly | |
| 16 | 9F850-45A020100A0 | Indoor rear-view mirror | |
| 17 | 9D650-45A020005A0 | Rear wall trimming board | |
| 18 | 9F850-45A020023A0 | Document bag | |
| 19 | 9F850-45A020500A0 | Surrounding | |
| 20 | 9F850-45A020017A0 | Door seal strip | |
| 21 | 9D650-45A020100A0 | Instrument panel assembly | |
| 22 | GBT847-ST4.2x25 | Cross recessed countersunk head tapping screw | |
| 23 | 9F850-45A020300A0 | Bracket weldment | |
| 24 | 9D650-45A020006A | Fixing plate | |
| 25 | 9D650-45A020007A0 | Instrument panel lower left trimming board | |
| 26 | 9D650-45A020008A0 | Instrument panel lower right trimming board | |
| 27 | GBT16674.1-M8x20-8.8-A2L | Hex bolt with flange | |
| 30 | GBT6177.1-M8-8-A2L | Nut | |
| 31 | 9D650-45A020009A0 | Doom trimming | |
| 32 | 9F850-45A020007A0 | Left door lower trimming board | |
| 33 | 9F850-45A020008A0 | Right door lower trimming board | |
| 34 | 9F850-45A020002A0 | Front rain wiper cover | |
| 35 | GBT1818-M6x20-4.8-A2L | Cross recessed pan head screw | |
| 36 | GBT93-6-A0P | Spring washer | |
| 37 | GBT96.1-6-A0P | Big washer |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
