B00745+ZL428-00 Transmission valve assembly

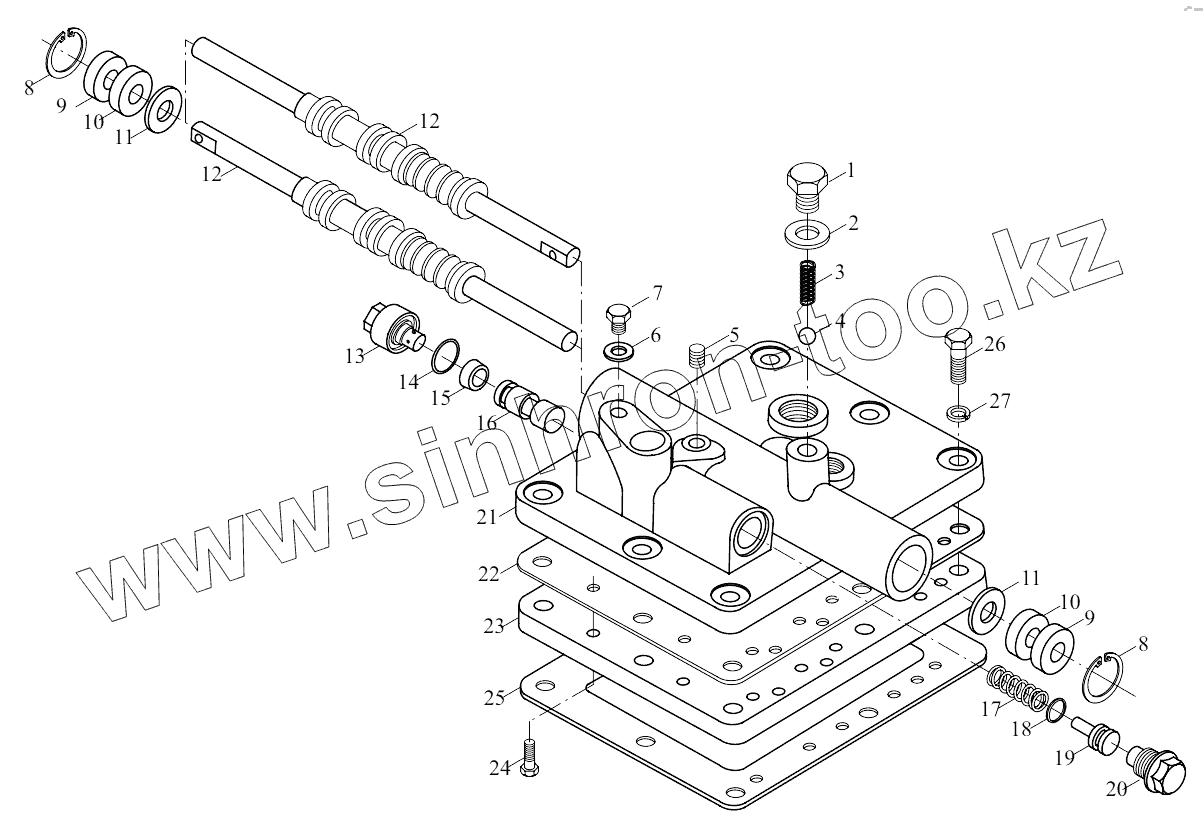

Каталог запасных частей к технике: Foton FL935E. B00745+ZL428-00 Transmission valve assembly
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
FL917F (2009)
FL935E (2012)
FL936F (FL936FH4C1B2X1A105) (2011)
FL958G (2015)
Foton-FL936F (2007)
Foton-FL958G (2007)
TB454-Q161Y20K
TL254 (TL1A254-001K)
Схема
>
Не выбрано
9D650-01A000000A0 Engine assembling
9D550-02B000000A0 Radiator assembly
9D550-03A000000A0 Preheating system
9D650-05A000000A0 Throttle control system
9D652-06A000000A0 Flameout device
9D650-08A000000A0 Fuel tank assembling
9D550-11C000000A0 Front frame welding assembly
9D550-12A000000A0 Jiont assembly
9D550-13G000000A0 Rear frame weldment assembly
9D650-14A000000B0 Auxiliary frame assembly
9D550-15A000000A0 Ballast
9D550-16C000000A0 Front frame accessories
9D550-17C000000A0 Rear frame accessories
9D550-21A000000A0 Converter assembling
9D650-23A000000A0 Gearbox assembling
9D550-24B000000A0 Gearbox assembling
B00508+9D550-24B000000A0 Hangchi Gearbox Assembly ZL20X2
B00508+ZL20-037000X2A Gearbox oil filling pipe assembly
B00508+ZL20-030001-71 Gearbox Body Parts
B00508+ZL20-030100A Ventilator assembly
B00508+ZL20-036000X1 Reverse gear shaft assembly
B00508+ZL20-032000X1 Input shaft assembly
B00508+ZL20-033000X1 Intermediate shaft assembly
B00508+ZL20-032100 Clutch assembly
B00508+ZL20-030072-77 Output shaft assembly
B00508+ZL20-030044-55 High-low gear shift fork mechanism
B00508+ZL20-038000J Hand brake assembly
B00745+9D550-24B000000A0 Qingzhou Jingyi Gearbox assembling ZL30-в…ў
B00745+ZL30.07-00 Gearbox oil filling pipe assembly
B00745+ZL30.01-00 Gearbox Body Parts
B00745+ZL30.12-00 Breather assembly
B00745+ZL30.10-00 Reverse gear shaft assembly
B00745+ZL30.04-00 Intermediate shaft assembly
B00745+ZL30.02-00 Output shaft assembly
B00745+ZL30.03-00 Input shaft assembly
B00745+ZL30.10-00.01 Big overrun clutch
B00745+ZL30.08-00 High and low gear shifting fork mechanism
B00745+ZL30.13-00 Hand brake assembly
B00745+ZL428-00 Transmission valve assembly
9D550-25A000000A0 Transmission shaft assembling
9D650-26A000000B0 Front drive axle assembling
B00718+9D650-26A010000B0 Shandong Yunyu front axle assembly ZL30
B00718+ZL30.2.2E Hub Reducer Assembly
B00718+ZL30.2.3D Axle housing assembly
B00718+408100D Brake assembly
B00718+ZL30.2.1A Front Main Reducer Assembly
B00718+ZL30.2.4 Differential Assembly
9D650-27A000000B0 Rear drive axle assembly
B00718+9D650-27A010000B0 Shandong Yunyu rear axle assembly ZL30
B00718+ZL30.2.2E Hub Reducer Assembly
B00718+ZL30.2.3D Axle housing assembly
B00718+408100D Brake assembly
B00718+ZL30.2.1B Front Main Reducer Assembly
B00718+ZL30.2.4 Differential Assembly
9D550-29B000000A0 Parking and auxiliary brake system
9D550-31B000000A0 Converter gearbox oil circuit
9D550-32B000000A0 Transmission oil radiator connecting pipeline
9D550-33A000000A0 Transmission system oil return pipeline
9D650-34A000000B0 Wheel assembly
9D550-35B000000A0 Brake pressure system
9D550-36C000000A0 Brake control system
9D650-37A000000B0 Drive axle pipeline system
9D650-44B000000A0 Seat assembly
9D650-45A000000B0 Cab Installation Assembly
9D650-45A020000A0 Cab upholstery assembly
9D650-45A030000B0 Cab exterior mountings assembly
9D550-46E000000B0 Floor platform assembly system
9D650-47A000000B0 Bonnet assembly
9D550-48B000000A0 Mudguard and cover plate assembly
9D550-54C000000A0 Steering hydraulic system
9D550-55D000000A0 Working cylinder system
9D550-56A000000B0 Working oil pump system
9D550-58D000000A0 Hydraulic oil tank
9D550-59C000000A0 Hydraulic control system
9D550-62A000000A0 Front frame wiring
9D650-63C000000A0 Cab circuit
9D550-64C000000A0 Rear frame wiring
9D550-65A000000A0 Battery wiring and assembling
9D550-66C000000A0 Instrument assembly
9D550-67A000000A0 Air conditioner system
9F853-69A080000A0 Electric fan assembly
9D650-72G000000A0 Link mechanism
9D653-73A000000A0 Bucket assembly (1.8m3)
9D650-76E000000A0 Work implement attachments
9D550-83A000000A0 Transmission control system
9D550-84D000000A0 High-low shift control system
1
2
3
4
5
6
7
8
8
9
9
10
10
11
11
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
Позиция на иллюстрации
Заводской номер детали
Название детали
1
B00745+Z320471200
Bolt
2
JB1002-1977-12
Compound washer
3
B00745+Z320471190
Spring
4
GBT308-9.5-G200-b
Steel ball
5
B00745+siduZ1/8
Pipe plug
6
JB1002-1977-10
Compound washer
7
B00745+ZL428-09
Screw plug
8
GBT893.1-30
Circlip for hole
9
B00745+HG4-692-67-PD14X30X10
Oil seal
10
B00745+HG4-692-67-PD14X30X8
Oil seal
11
B00745+Z320471180
Washer
12
B00745+Z320471300
Control valve rod
13
B00745+Z428-10
Air inlet joint
14
GBT3452.1-22X2.4G
O-ring
15
B00745+ZL428-11
Rubber cup
16
B00745+ZL428-12
Brake sliding valve
17
B00745+ZL428-13
Spring
18
GBT3452.1-16X2.4G
O-ring
19
B00745+ZL428-14
Spring seat
20
B00745+ZL428-15
Screw plug
21
B00745+ZL428-02
Valve body
22
B00745+ZL428-03
Gasket
23
B00745+ZL428-01
Underplate
24
GBT70.1-M6X16-8.8-A2L
Hexagon socket cap head screw
25
B00745+ZL30-030034
Paper spacer
26
GBT5782-M10X50-8.8-A3L
Bolt
27
GBT93-10-A0P
Washer
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
