Каталог запасных частей к технике: Foton FL935E. B00745+ZL30.01-00 Gearbox Body Parts
1
1.1
1.2
2
3
4
5
5
6
6
7
7
8
8
8
8
9
9
9
9
9
9
9
9
9
9
10
11
12
12
13
13
14
14
15
16
17
18
19
19.1
19.2
19.3
19.4
19.5
19.6
20
20
20
21
22
23
24
25
26
27
27
28
29
30
31
32
32
32
33
33
33
34
34
35
36
37
38
38
39
39
39
39
40
41
42
43
44
44
44
44

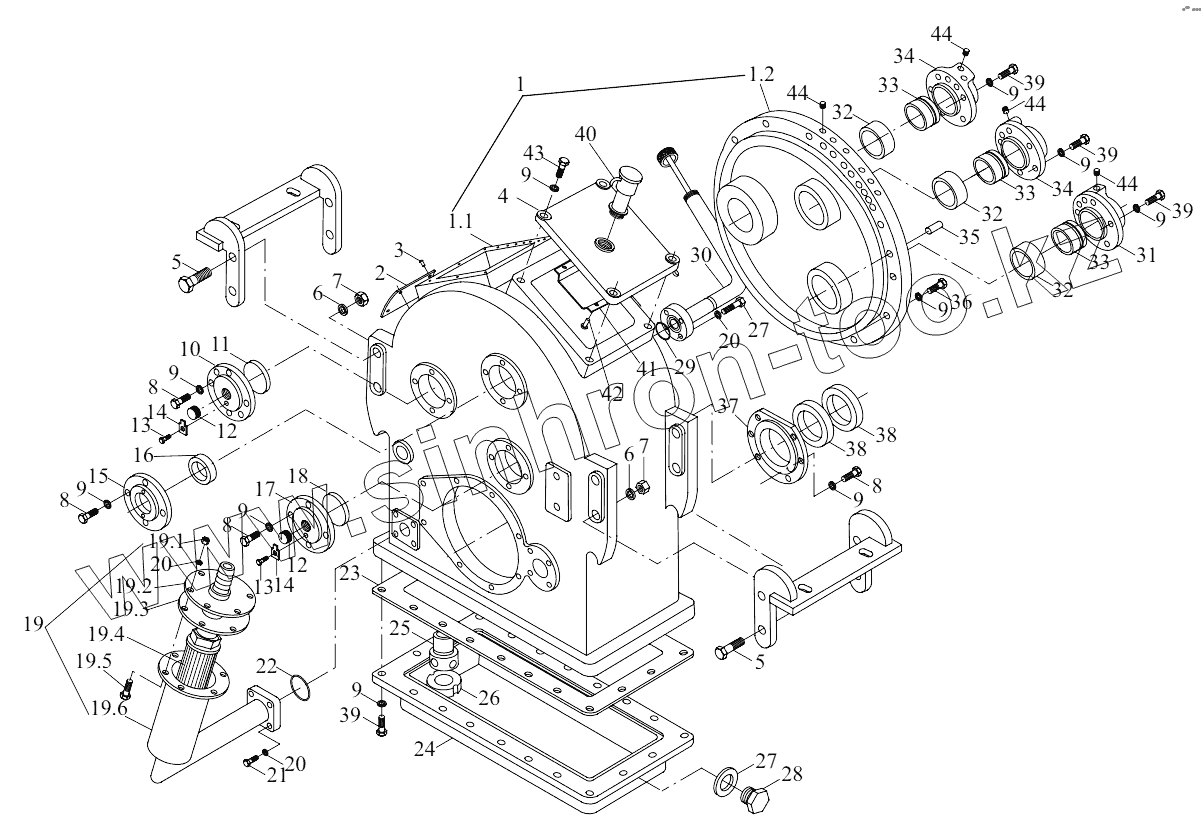

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | B00745+ZL30.01-01/02 | Gearbox body and big end cover assembly | |
| 1.1 | B00745+ZL30.01-01 | Tank body | |
| 1.2 | B00745+ZL30.01-02 | Big end cover | |
| 2 | B00745+ZL30- I | Name plate | |
| 3 | GBT827-2X6 | Name plate rivet | |
| 4 | B00745+ZL30.01-21 | Box cover | |
| 5 | GBT5783-M16X75-8.8-A3L | Hex bolt | |
| 6 | GBT93-16-A0P | Spring washer | |
| 7 | GBT6170-М 16-8-A2L | Type 1 hexagon nut | |
| 8 | GBT5783-M10X25-8.8-A3L | Hex bolt | |
| 9 | GBT93-10-A0P | Washer | |
| 10 | B00745+ZL30.01-03 | Reverse gear shaft end cover | |
| 11 | B00745+ZL30.01-05 | Reverse gear shaft adjusting gasket | |
| 12 | B00745+ZL30.01-06 | Adjusting screw | |
| 13 | GBT5783-M6X6-8.8-A3L | Hex bolt | |
| 14 | B00745+ZL30.01-07 | Thrust piece | |
| 15 | B00745+ZL30.01-08 | Input shaft end cover | |
| 16 | B00745+HG4-692-67-PD45X62X12 | Oil seal | |
| 17 | B00745+ZL30.01-09 | Intermediate shaft end cover | |
| 18 | B00745+ZL30.01-14 | Adjusting gasket | |
| 19 | B00745+ZL30.06-00 | Oil filter assembly | |
| 19.1 | GBT6170-M8-8-A2L | I-type hexagon nut | |
| 19.2 | B00745+ZL30.06-09 | Oil outlet flange assembly | |
| 19.3 | B00745+ZL30.06-08 | Gasket | |
| 19.4 | B00745+ZL30.06-06 | Filter cartridge | |
| 19.5 | GBT5783-M8X25-8.8-A3L | Hex bolt | |
| 19.6 | B00745+ZL30.06-01 | Oil filter weldment | |
| 20 | GBT93-8-A0P | Washer | |
| 21 | GBT5783-M8X30-8.8-A3L | Hex bolt | |
| 22 | GBT3452.1-50X4G | O-ring | |
| 23 | В00745+ZL30.01-22 | Paper spacer of oil sump assembly | |
| 24 | B00745+ZL30.01-16 | Oil sump assembly | |
| 25 | B00745+ZL30.01-17 | Oil suction pipe | |
| 26 | B00745+ZL30.01-18 | Permanent magnet | |
| 27 | GBT3452.1-22.4X2.65G | O-ring | |
| 28 | В00745+ZL30.01-24 | Oil drainage screw plug | |
| 29 | GBT3452.1-40X3.1G | O-ring | |
| 30 | B00745+ZL30.07-00 | Gearbox oil filling pipe assembly | |
| 31 | B00745+ZL30.01-12 | Intermediate oil inlet end cover | |
| 32 | B00745+ZL30-01-25 | Shaft Bush | |
| 33 | В00745+ZL30.01-27 | Outer oil seal sleeve | |
| 34 | B00745+ZL30.01-10 | Input reverse gear shaft oil inlet end cover | |
| 35 | В00745+ZL30.01-29 | Dowel pin | |
| 36 | GBT70.1-M10X30 | Hexagon socket cap head screw | |
| 37 | В00745+ZL30.1-11 | Output shaft front end cover | |
| 38 | В00745+HG4-692-67-SG65X90X12 | Oil seal | |
| 39 | GBT5783-M10X30-8.8-A3L | Hex bolt | |
| 40 | В00745+ZL30.12-00 | Breather assembly | |
| 41 | B00745+ZL30.01-21.2 | Oil baffle | |
| 42 | GBT109-M4X20 | Tack rivet | |
| 43 | GBT5783-M10X35-8.8-A3L | Hex bolt | |
| 44 | В00745+luosaiZ1/8 | Screw plug |
