Каталог запасных частей к технике: Foton FL935E. B00718+ZL30.2.1B Front Main Reducer Assembly
1
2
3
4
5
6
6.1
6.2
7
8
9
10
11
12
13
13
14
15
16
17
18
19
19
20
20
21
22
23
24
25
26
27
27.1
27.2
28
28.1
28.2
29
30
31
32

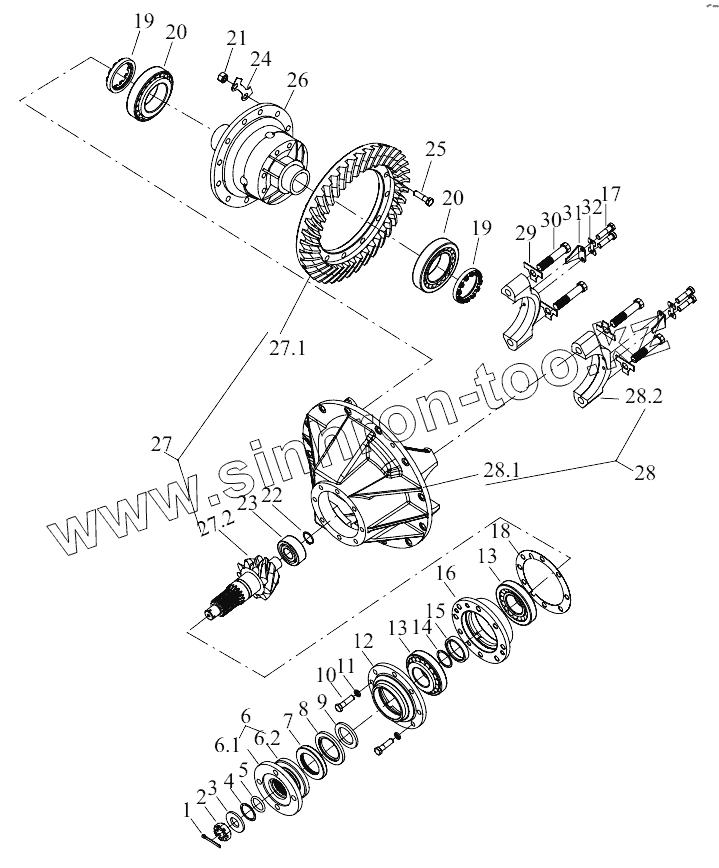

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | GBT91-5X45-A0P | Cotter pin | |
| 2 | B00718+Q38727 | Bolt | |
| 3 | B00718+ZL30.2.1-2 | Washer | |
| 4 | B00718+ZL30.2.1-4 | O-type barrier | |
| 5 | GBT3452.1-40X5.3 | O-ring | |
| 6 | B00718+ZL30.2.1.1 | Input flange components | |
| 6.1 | B00718+ZL30.2.1.1-1 | Input flange | |
| 6.2 | B00718+ZL30.2.1.1-2 | Dust cover | |
| 7 | GBT9877.1-FB62X93X7D | Lip-shape seal ring | |
| 8 | GBT9877.1-FB62X93X13D | Lip-shape seal ring | |
| 9 | B00718+ZL30.2.1-6 | Thrust washer | |
| 10 | GBT5782-M12X45-10.9-A2L | Hex bolt | |
| 11 | GBT93-12-A0P | Spring washer | |
| 12 | B00718+ZL30.2.1-31 | Oil seal seat | |
| 13 | GBT297-31311 | Tapered roller bearing | |
| 14 | B00718+ZL30.2.1-7 | Adjusting gasket | |
| 15 | B00718+ZL30.2.1-28 | Spacing sleeve | |
| 16 | B00718+ZL30.2.1-8 | Bearing support | |
| 17 | GBT5781-M8X12-4.8-A2L | Hex bolt | |
| 18 | B00718+ZL30.2.1-29 | Adjusting gasket | |
| 19 | B00718+ZL30.2.1-13 | Adjusting nut | |
| 20 | GBT297-32216 | Tapered roller bearing | |
| 21 | GBT6171-M14X1.5-8-A3L | Type 1 hexagon nut | |
| 22 | GBT894.1-30 | Circlip for shaft | |
| 23 | GBT283-NUP2306E | Cylindrical roller bearing | |
| 24 | B00718+ZL30.2.1-23 | Lock piece | |
| 25 | B00718+ZL30.2.1-22 | Bolt | |
| 26 | B00718+ZL30.2.4 | Differential gear assembly | |
| 27 | B00718+ZL30.2.1-34B | Main driving and driven gear pair | |
| 27.1 | B00718+ZL30.2.1-24B | Driven spiral bevel gear | |
| 27.2 | B00718+ZL30.2.1-5B | Running gear | |
| 28 | B00718+ZL30.2.1-35 | Main reducer housing components | |
| 28.1 | B00718+ZL30.2.1-9 | Main reducer housing | |
| 28.2 | B00718+ZL30.2.1-16 | Differential gear bearing cap | |
| 29 | B00718+ZL10.6.1-30 | Lock piece | |
| 30 | B00718+ZL30.2.1-25 | Bolt | |
| 31 | B00718+ZL30.2.1-17 | Lock piece | |
| 32 | B00718+ZL30.2.1-18 | Lock piece |
