Каталог запасных частей к технике: Foton FL935E. 9D550-67A000000A0 Air conditioner system
1
1.1
1.2
1.3
1.4
1.5
1.6
2
3
4
4
5
6
6.1
6.2
6.3
6.4
6.5
6.6
6.7
7
8
8
8
8
8
8
8
8
9
9
10
11
12
13
14
15
15
16
17
17
18

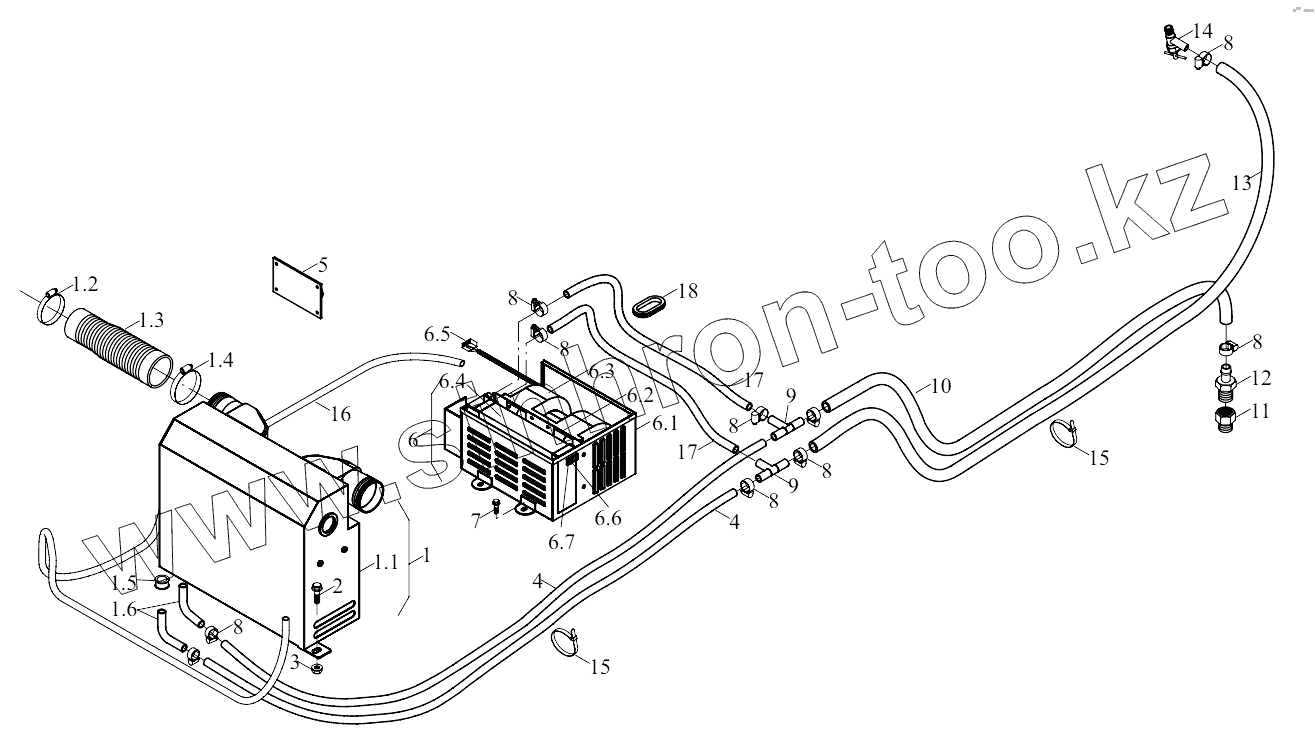

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 9D650-67A010000A0 | Heater unit assembly | |
| 1.1 | 9D650-67A010100A0 | Heater unit box body | |
| 1.2 | 9F850-68A020001A0 | Hoop | |
| 1.3 | 9F850-68A020002A0 | Air pipe | |
| 1.4 | 9F850-68A020003A0 | Hoop | |
| 1.5 | 9F850-68A020004A0 | Gromment | |
| 1.6 | 9F850-68A020200A0 | Hot water pipe joiont components | |
| 2 | GBT16674.1-M10X25-8.8-A3L | Bolt | |
| 3 | GBT6177.1-M10-8-A3L | Nut | |
| 4 | 9F657-68A000004A0 | Water tube | |
| 5 | 9D650-67A020000A0 | Heater control panel | |
| 6 | 9D550-67A010000A0 | Heater unit assembly | |
| 6.1 | 9D550-67A010100A0 | Heater unit shell | |
| 6.2 | 9F351-67А010200А0 | Fan fixing plate | |
| 6.3 | 9F351-67А010300А0 | Wind machine | |
| 6.4 | 9F351-67А010400А0 | Heating device | |
| 6.5 | 9В650-67А010500В0 | Heater unit wire harness | |
| 6.6 | 9F351-66А020500А0 | Heater switch | |
| 6.7 | 9F653-66A000001A0 | Independent rocker switch box | |
| 7 | GBT16674.1-M6X20-8.8-A2L | Bolt | |
| 8 | 9F850-68A000005A0 | Hoop | |
| 9 | 9D550-67A000004A0 | Three joints | |
| 10 | 9D550-67A000001A0 | Water pipe | |
| 11 | 9D650-67A000002A0 | Transition joint | |
| 12 | 9D650-67A000001A0 | Heater water return joint | |
| 13 | 9В650-67А000002А0 | Water pipe | |
| 14 | 9F850-68A110000А0 | Heater water inlet valve | |
| 15 | 9F850-62A000001A0 | Lock cable ties | |
| 16 | 9D550-67A000005A0 | Heating transition wiring harness | |
| 17 | 9D550-67A000003A0 | Water pipe | |
| 18 | 9D550-67A000006A0 | Gromment |
