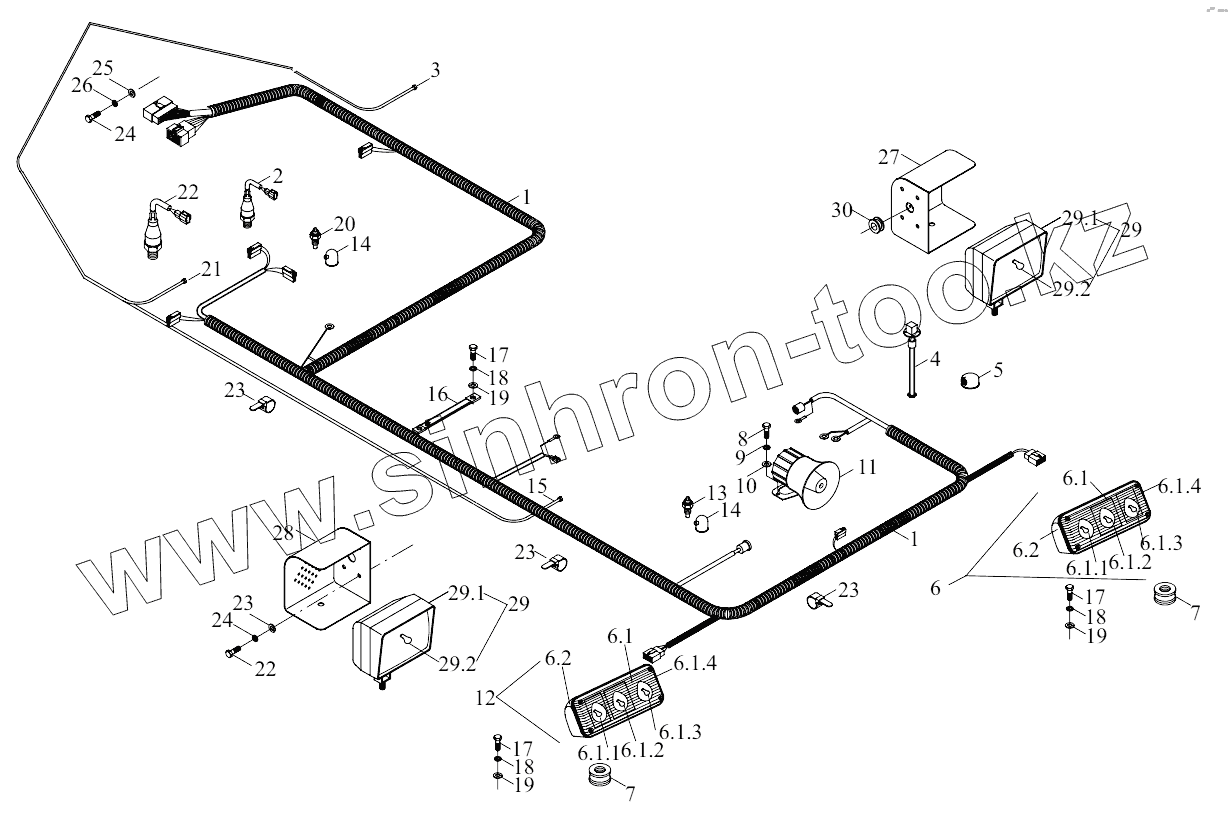

Каталог запасных частей к технике: Foton FL935E. 9D550-64C000000A0 Rear frame wiring
1
1
2
3
4
5
6
6.1
6.1
6.1.1
6.1.1
6.1.2
6.1.2
6.1.3
6.1.3
6.1.4
6.1.4
6.2
6.2
7
7
8
9
10
11
12
6.1
6.1
6.1.1
6.1.1
6.1.2
6.1.2
6.1.3
6.1.3
6.1.4
6.1.4
6.2
6.2
13
14
14
15
16
17
17
17
18
18
18
19
19
19
20
21
22
22
23
23
23
23
24
24
25
26
27
28
29
29
29.1
29.1
29.2
29.2
30
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 9D550-64C010000A0 | Rear frame harness | |
| 2 | 9F850-64A070000A0 | Brake lamp switch (YK207K) | |
| 3 | 9D650-64A060000A0 | Air pressure hose | |
| 4 | 9D650-64A130000А0 | Liquid level sensor | |
| 5 | 9F850-64A000001A0 | Sleeve | |
| 6 | 9F850-64A040000A0 | Right rear compound lamp | |
| 6.1 | 9F850-64А041000А0 | Rear compound lamp | |
| 6.1.1 | 9F850-62А021020А0 | Steering lamp bulb | |
| 6.1.2 | 9F850-64А041020А0 | Astern lamp bulb | |
| 6.1.3 | 9F850-64A041010A0 | Rear small lamp/brake lamp bulb | |
| 6.1.4 | 9F850-64А041030А0 | Back compound lamp housing | |
| 6.2 | 9F850-64A042000A0 | Rear small lamphouse | |
| 7 | 9F850-64A000003A0 | Grommet | |
| 8 | GBT5783-M6X12-8.8-A2L | Hex bolt | |
| 9 | GBT93-6 | Normal type single coil spring lock washer | |
| 10 | GBT97.1-6-А0Р | Plain washer | |
| 11 | 9F850-64A120000A0 | Astern alarm | |
| 12 | 9F850-64A050000A0 | Left rear compound lamp | |
| 6.1 | 9F850-64А041000А0 | Rear compound lamp | |
| 6.1.1 | 9F850-62 А021020А0 | Steering lamp bulb | |
| 6.1.2 | 9F850-64А041020А0 | Astern lamp bulb | |
| 6.1.3 | 9F850-64A041010A0 | Rear small lamp/brake lamp bulb | |
| 6.1.4 | 9F850-64А041030А0 | Back compound lamp housing | |
| 6.2 | 9F850-64A042000A0 | Rear small lamphouse | |
| 13 | 9F850-64A110000А0 | Engine water temperature sensor | |
| 14 | 9F850-64A000002A0 | Sleeve | |
| 15 | 9D650-64 А100000А0 | Engine oil pressure hose | |
| 16 | 9D650-64A030000A0 | Engine bonding | |
| 17 | GBT5783-M10X20-8.8-A3L | Hex bolt | |
| 18 | GBT93-10 | Normal type single coil spring lock washer | |
| 19 | GBT97.1-10-А0Р | Plain washer | |
| 20 | 9F850-64A090000A0 | Converter oil temperature sensor | |
| 21 | 9D650-64A080000A0 | Gearbox oil pressure hose | |
| 22 | 9F850-64A020000A0 | Brake lamp switch | |
| 23 | 9F850-62A000001A0 | Lock cable ties | |
| 24 | GBT5783-M8X16-8.8-A2L | Hex bolt | |
| 25 | GBT97.1-8-A0P | Washer | |
| 26 | GBT93-8 | Normal type single coil spring lock washer | |
| 27 | 9F550-64A310000А0 | Right rear work lamp installation trestle | |
| 28 | 9F550-64A300000A0 | Left rear work lamp installation trestle | |
| 29 | 9F550-64A270000A0 | Rear work lamp | |
| 29.1 | 9F550-64A270010A0 | Rear work lamp shell | |
| 29.2 | 9F550-64A270001A0 | Rear work lamp light bulb | |
| 30 | 9F853-63A000001A0 | Gromment |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
