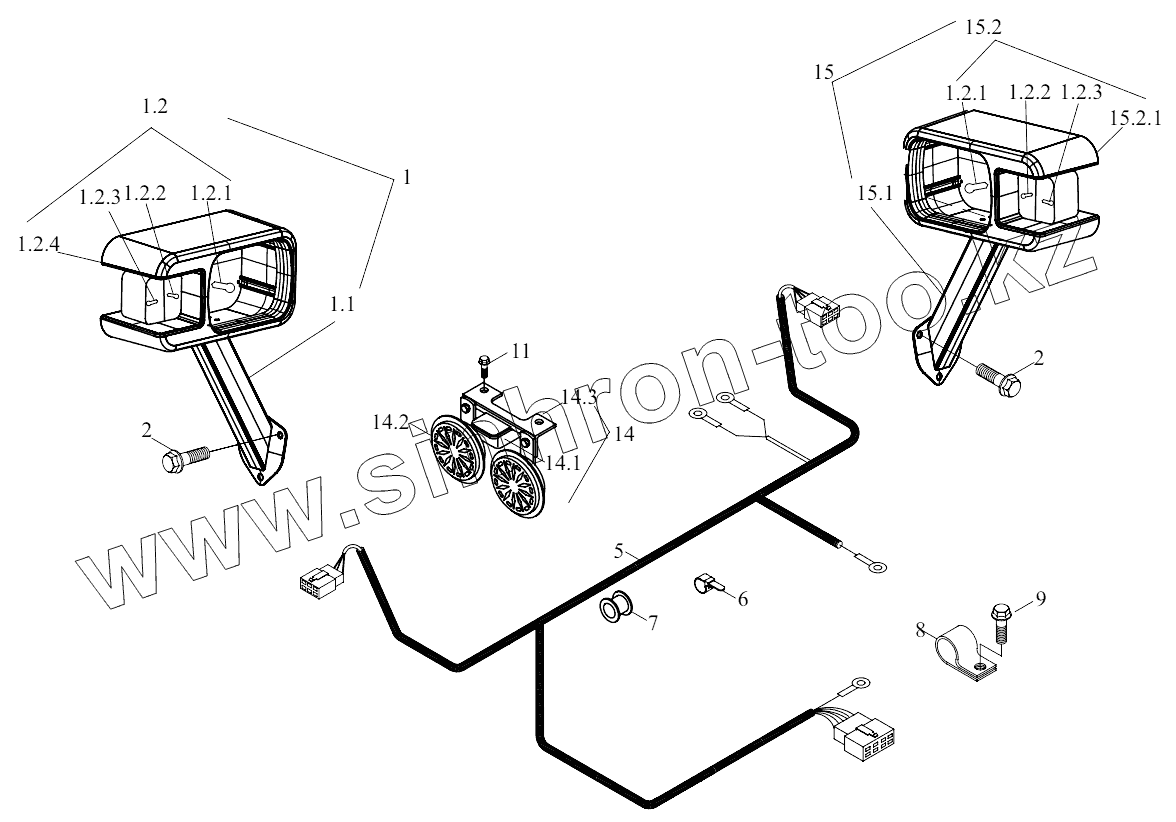

Каталог запасных частей к технике: Foton FL935E. 9D550-62A000000A0 Front frame wiring

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1.1
1.2
1.2.1
1.2.1
1.2.2
1.2.2
1.2.3
1.2.3
1.2.3
1.2.4
2
2
5
6
7
8
9
11
14
14.1
14.2
14.3
15
15.1
15.2
1.2.1
1.2.1
1.2.2
1.2.2
1.2.3
1.2.3
1.2.3
15.2.1
Позиция на иллюстрации Заводской номер детали Название детали
1 9F850-62A020000A1 Left front compound lamp assembly
1.1 9F850-62A022000A1 Left front compound lamp bracket
1.2 9F850-62А021000А1 Left front compound lamp
1.2.1 9F850-62A021010A0 Front shine lamp bulb
1.2.2 9F850-62А021030А0 Parking lamp bulb
1.2.3 9F850-62А021020А0 Steering lamp bulb
1.2.4 9F850-62А021040А1 Left front compound lamp housing
2 GBT5783-M10X30-A3L Hex bolt
3 GBT97.1-10-А0Р Plain washer
4 GBT93-10 Normal type single coil spring lock washer
5 9D550-62A010000A0 Front frame harness
6 9F850-62A000001А0 Lock cable ties
7 9F850-62A000002A0 Gromment
8 9F850-62A000004A0 Clip
9 GBT818-M6X12-A2L Cross recessed pan head screw
10 GBT93-6 Normal type single coil spring lock washer
11 GBT5783-M8X20-8.8-A2L Hex bolt
12 GBT93-8 Normal type single coil spring lock washer
13 GBT6170-M8-A2L Type 1 hexagon nut
14 9F850-62A050000A0 Electric horn
14.1 9F850-62A050100A0 Horn relay
14.2 9F850-62A050200A0 Horn
14.3 9F850-62A050300A0 Horn bracket
15 9F850-62A030000A1 Right front compound lamp assembly
15.1 9F850-62A032000A1 Right front compound lamp bracket
15.2 9F850-62А031000А1 Right front compound lamp
1.2.1 9F850-62A021010A0 Front shine lamp bulb
1.2.2 9F850-62А021030А0 Parking lamp bulb
1.2.3 9F850-62А021020А0 Steering lamp bulb
15.2.1 9F850-62А031040А1 Right front compound lamp housing
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
