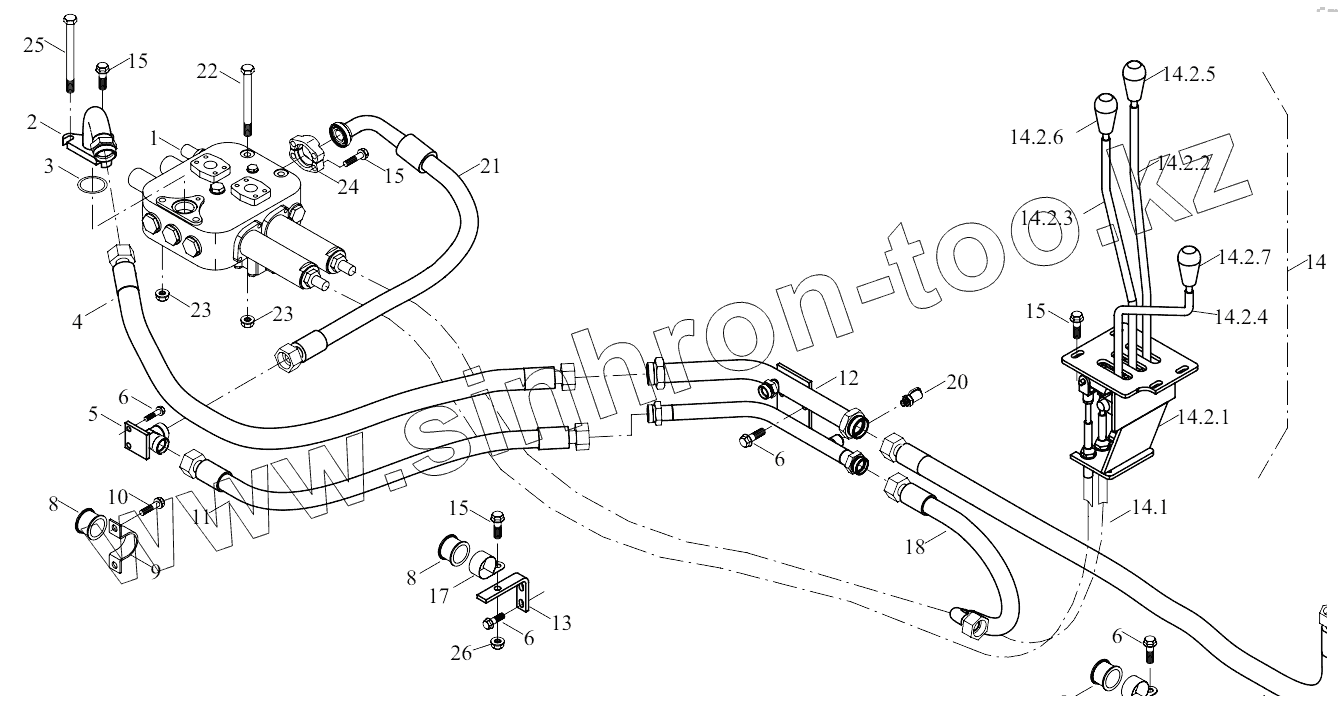

Каталог запасных частей к технике: Foton FL935E. 9D550-59C000000A0 Hydraulic control system
1
2
3
4
5
6
6
6
6
8
8
9
10
11
12
13
14
14.1
14.2.1
14.2.2
14.2.3
14.2.4
14.2.5
14.2.6
14.2.7
15
15
15
15
17
18
20
21
22
23
23
24
25
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 9D652-59A010000A1 | Multi-way valve | |
| 2 | 9D550-59C030000A0 | Oil return hose into vavle | |
| 3 | FB-GB1235-76-50X3.1-70 | О-ring | |
| 4 | QLWZG056.3-0201300 | 24°taper hose assembly | |
| 5 | 9D550-59C010000A0 | Compound joint | |
| 6 | GBT16674.1-M10X20-8.8-A3L | Bolt | |
| 8 | QLWZG101-00740 | Buffer sleeve | |
| 9 | QLWZG103-02850 | Clip | |
| 10 | GBT16674.1-M12X25-8.8-A3L | Bolt | |
| 11 | QLWZG059.3-0160900 | 24°taper hose assembly | |
| 12 | 9D550-59C020000A0 | Compound tube | |
| 13 | 9D550-59C000001A0 | Bending plate | |
| 14 | 9D550-59C040000B0 | Control mechanism assembly | |
| 14.1 | 9D550-59C040200A0 | Control flexible shaft | |
| 14.2 | 9D650-59A060100C0 | Control mechanism | |
| 14.2.1 | 9D650-59A061300B0 | Bracket assembly | |
| 14.2.2 | 9D650-59A061000A0 | Lifting arm control rod assembly | |
| 14.2.3 | 9D650-59A061100A0 | Rotating bucket control rod assembly | |
| 14.2.4 | 9D650-59A061200A0 | High-low speed control rod assembly | |
| 14.2.5 | 9D652-59A060300A0 | Lifting arm handle ball | |
| 14.2.6 | 9D652-59A060400A0 | Rotating bucket handle ball | |
| 14.2.7 | 9D652-59A060500A0 | High-low speed handle ball | |
| 15 | GBT16674.1-M10X25-8.8-A3L | Bolt | |
| 16 | QLWZG056.3-0201580 | 24°taper hose assembly | |
| 17 | QLWZG102-00740 | Clip | |
| 18 | QLWZG059.2-0160900 | 24°taper hose assembly | |
| 20 | 9F850-59A190000A0 | Plug for measuring pressure m14x1.5ed | |
| 21 | 9D550-59C050000A0 | Valve oil inlet hose | |
| 22 | 9D550-59A000003A0 | Bolt | |
| 23 | GBT6177.1-M12-8-A3L | Nut | |
| 24 | QLWZG090-020380 | Flange | |
| 25 | 9F850-59A000006A0 | Bolt |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
