  5. 9D550-55D000000A0 Working cylinder system

Каталог запасных частей к технике: Foton FL935E. 9D550-55D000000A0 Working cylinder system

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
1.1
1.2
1.2
1.3
1.3
1.4
1.4
1.5
1.6
1.6
1.7
1.8
1.9
1.10
1.11
1.11
1.12
1.12
1.13
1.13
1.14
1.15
1.16
1.17
1.18
1.19
1.20
1.20
1.20
1.20
1.21
1.21
1.22
1.23
1.23
1.23
1.23
1.24
1.24
1.24
1.24
2
2
2
2.1
2.2
2.2
2.3
2.4
2.5
2.6
2.7
2.8
2.8
2.9
2.10
2.11
2.12
2.13
2.14
2.15
2.16
2.16
2.17
2.17
2.18
2.19
2.20
2.21
2.21
2.22
2.22
2.23
2.24
2.24
2.25
2.25
2.26
2.26
2.26
2.26
2.27
2.27
3
4
4
4
4
4
4
5
5
6
7
7
8
8
10
10
11
11
11
11
12
12
13
13
13
13
14
14
14
14
15
15
15
15
15
15
15
16
17
18
18
18
18
19
22
22
22
23
23
23
24
24
25
25
26
26
27
27
28
28
29
29
30
30
31
31
31
32
33
34
34.1
34.2
34.3
34.4
34.5
34.6
35
35
36
37
38
39
40
41
42
43
43

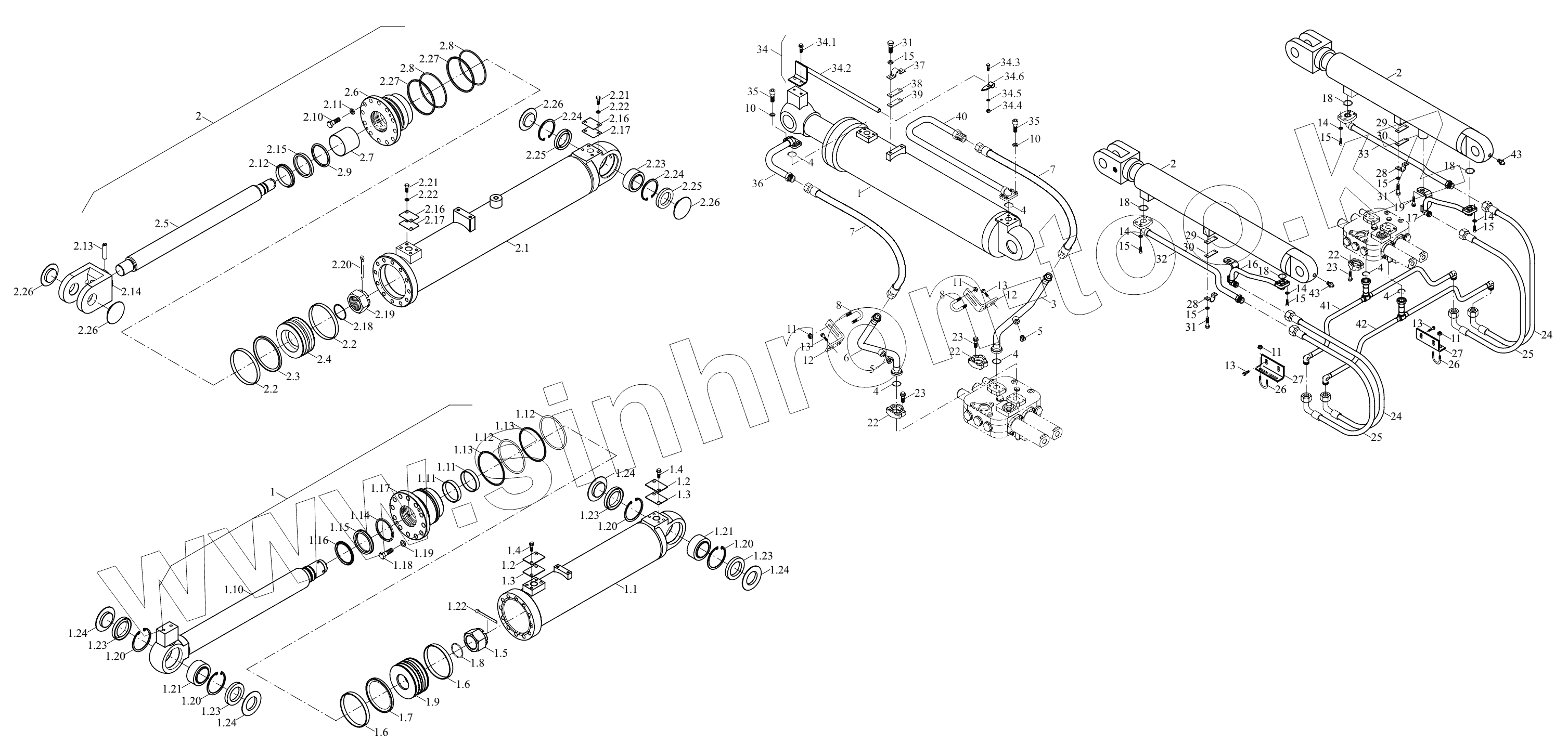

Позиция на иллюстрации Заводской номер детали Название детали
1 9D550-55D010000A1 Bucket cylinder
1.1 9D550-55D010100A0 Cylinder body
1.2 9D650-55А010003А0 Protection cover
1.3 9D650-55А010004А0 Protection rubber gasket
1.4 GBT16674.1-М 10X20-8.8-A3L Hex bolt with flange
1.5 9D550-55D010003А0 Slotted nut
1.6 9D550-55D010004А0 Supporting ring
1.7 9D550-55D010005А0 Supporting ring
1.8 FB-GB1235-76-60X3.1-90 О-ring
1.9 9D550-55D010001А0 Piston
1.10 9D550-55D010200А0 Piston rod
1.11 9F850-55A010010А0 Supporting ring
1.12 FB-GB1235-76-140X5.7-90 О-ring
1.13 9D550-55D010006А0 Circlip
1.14 9F850-55A050500A0 Step ring
1.15 9F850-55A050010A0 Seal ring
1.16 9F850-55A050011А0 Dustproof ring
1.17 9D550-55D010002A0 Guide sleeve
1.18 GBT5782-M16X45-10.9 Hex bolt
1.19 GBT93-16-A3L Washer
1.20 GBT893.1-90 Circlip for hole
1.21 GBT9163-GE60ES Radial spherical plain bearing
1.22 GBT91-8X90-A3L Cotter pin
1.23 9D650-55А010013А0 Oil seal FB
1.24 9D650-55А010006А0 Dustproof cover
2 9D650-55A020000A0 Boom cylinder
2.1 9D650-55A020200A0 Cylinder body
2.2 9D650-55A020009A0 Supporting ring
2.3 9D650-55A020010A0 Supporting ring
2.4 9D650-55A020001A0 Piston
2.5 9D650-55A020002A0 Piston rod
2.6 9D650-55A020003A0 Guide sleeve
2.7 9D650-55A020011А0 Compound bearing
2.8 FB-GB1235-76-110X5.7-70 O-ring
2.9 9D650-55A020012A0 Step ring
2.10 GBT5783-M12X35-12.9-A3L Hex bolt
2.11 GBT93-12-A0P Spring washer
2.12 9D650-55А020013А0 Dustproof ring
2.13 GBT73-M8X25 Slotted set screws chamfered end
2.14 9D650-55A020004A0 Double Earring
2.15 9D650-55A020014A0 Seal ring
2.16 9D650-55A020005A0 Protection cover
2.17 9D650-55A020006A0 Protection rubber gasket
2.18 FB-GB1235-76-45X3.1-90 O-ring
2.19 9D650-55A020007A0 Slotted nut
2.20 GBT91-8X80-А0Р Cotter pin
2.21 GBT5781-M8X16-4.8-A2L Hex bolt
2.22 GBT93-12-A0P Spring washer
2.23 GBT9163-GE50ES Radial spherical plain bearing
2.24 GBT893.1-75 Circlip for hole
2.25 9D650-55A020015A0 Skeleton oil seal
2.26 9D650-55A020008A0 Dustproof cover
2.27 9D650-55A020016A0 Circlip
3 9D550-55D030000A0 Bucket rotation link big cavity steel pipe
4 ISO3601-32.92X3.53-90 O-ring
5 QLWZG087-101406 Plug
6 9D550-55D020000A0 Bucket rotation link small cavity steel pipe
7 QLWZG057.3-0120930 24°taper hose assembly
8 FB-JBZQ4321-97-25 U-bolt
10 GBT93-10-A3L Washer
11 GBT6177.1-M10-8-A3L Nut
12 9D550-55D000001A0 Plate bending
13 GBT16674.1-M10X20-8.8-A3L Bolt
14 GBT70.1-M8X25-8.8-A2L Hexagon socket cap head screw
15 GBT93-8-A3L Washer
16 9D652-55A020000A0 Left lifting arm cylinder small cavity pipe
17 9D652-55A030000A0 Right lifting arm cylinder small cavity pipe
18 ISO3601-24.99X3.53-90 Steel pipe of right steering cylinder big chamber
19 GBT16674.1-M12X20-8.8-A3L Hex bolt with flange
22 QLWZG090-016300 Flange
23 GBT16674.1-M10X25-8.8-A3L Bolt
24 QLWZG057.2-0100960B 24°taper hose assembly
25 QLWZG057.2-0101030B 24°taper hose assembly
26 9D650-55B000001B0 U-bolt20
27 9D550-55D000002A0 Oil pipe fixing plate
28 QLWZG103-01020 Clip
29 9D650-55A000002A0 Adjusting gasket 1
30 9D650-55A000004A0 Adjusting gasket 2
31 GBT5783-M8X16-8.8-A2L Hex bolt
32 9D652-55A080000A0 Left lifting arm cylinder small cavity pipe
33 9D652-55A090000A0 Right lifting arm cylinder small cavity pipe
34 9D650-55A120000A0 Bucket leveling device
34.1 GBT16674.1-M10X20-8.8-A2L Bolt
34.2 9D650-55A120100A0 Indicator rod
34.3 GBT5783-M8X16-A2L Hex bolt
34.4 GBT6170-M8-A2L Type 1 hexagon nut
34.5 GBT93-8-A0P Washer
34.6 9D650-55A120001A0 Indicator rod
35 GBT70.1-M10X30-8.8-A3L Screw
36 9D652-55A100000A0 Bucket rotation cylinder small cavity steel pipe
37 9D650-55A000003A0 Clip2
38 9D650-55A000005A0 Adjusting gasket 3
39 9D650-55A000006A0 Adjusting gasket 4
40 9D652-55A110000А0 Bucket rotation cylinder big cavity steel pipe
41 9D550-55D050000A0 Lifting arm link big cavity steel pipe
42 9D550-55D040000A0 Lifting arm link small cavity steel pipe
43 JBT7940.1-M10X1 Straight pressure filling oil cup
