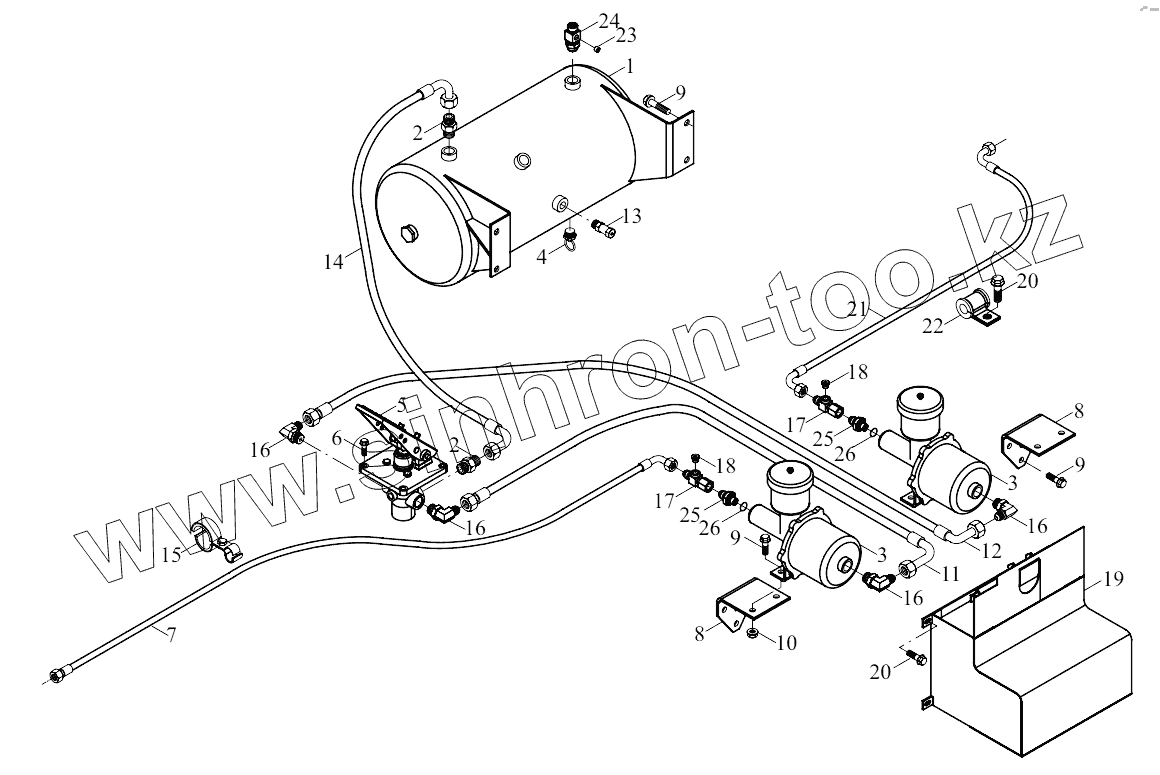

Каталог запасных частей к технике: Foton FL935E. 9D550-36C000000A0 Brake control system
1
2
2
3
3
4
5
6
7
8
8
9
9
9
10
11
12
13
14
15
16
16
16
16
17
17
18
18
19
20
20
21
22
23
24
25
25
26
26
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 9D550-36A010000A0 | Gas holder | |
| 2 | 9F550-36A000001A0 | Transition joint | |
| 3 | 9D650-36A020000A0 | Air compressor | |
| 4 | 9F850-36A040000A0 | Drain valve | |
| 5 | 9D550-36B010000A0 | Foot brake valve | |
| 6 | GBT16674.1-M8X25-8.8-A2L | Bolt | |
| 7 | QLWZG073.2-0041700 | Hose assembly | |
| 8 | 9D650-36A030000A0 | Compressor bracket | |
| 9 | GBT16674.1-M12X25-8.8-A3L | Bolt | |
| 10 | GBT6177.1-M12-8-A3L | Nut | |
| 11 | QLWZG072.3-0050790 | Hose assembly | |
| 12 | QLWZG072.3-0050950 | Hose assembly | |
| 13 | 9F850-36A030000A0 | Safety valve | |
| 14 | 9D550-36B040000A0 | Air outlet pipe of gas holder | |
| 15 | 9D550-36A060000A0 | Clip assembly | |
| 16 | 9F550-36A060000A0 | Adjustable joint | |
| 17 | 9F653-36A040000B0 | Adjustable joint | |
| 18 | 9F560-36A050000A0 | Plug | |
| 19 | 9D650-36D010000A0 | Booster pump cover | |
| 20 | GBT16674.1-M8X16-8.8-A2L | Bolt | |
| 21 | 9D652-36A070000B0 | Rear compressor brake pipe | |
| 22 | 9D650-37A030000A0 | Clip | |
| 23 | 9D650-36A000001A0 | Plug | |
| 24 | 9D550-36B050000A0 | Adjustable tee | |
| 25 | 9F653-36A000003A0 | Transition joint | |
| 26 | 9F550-37A000008A0 | O-ring |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
