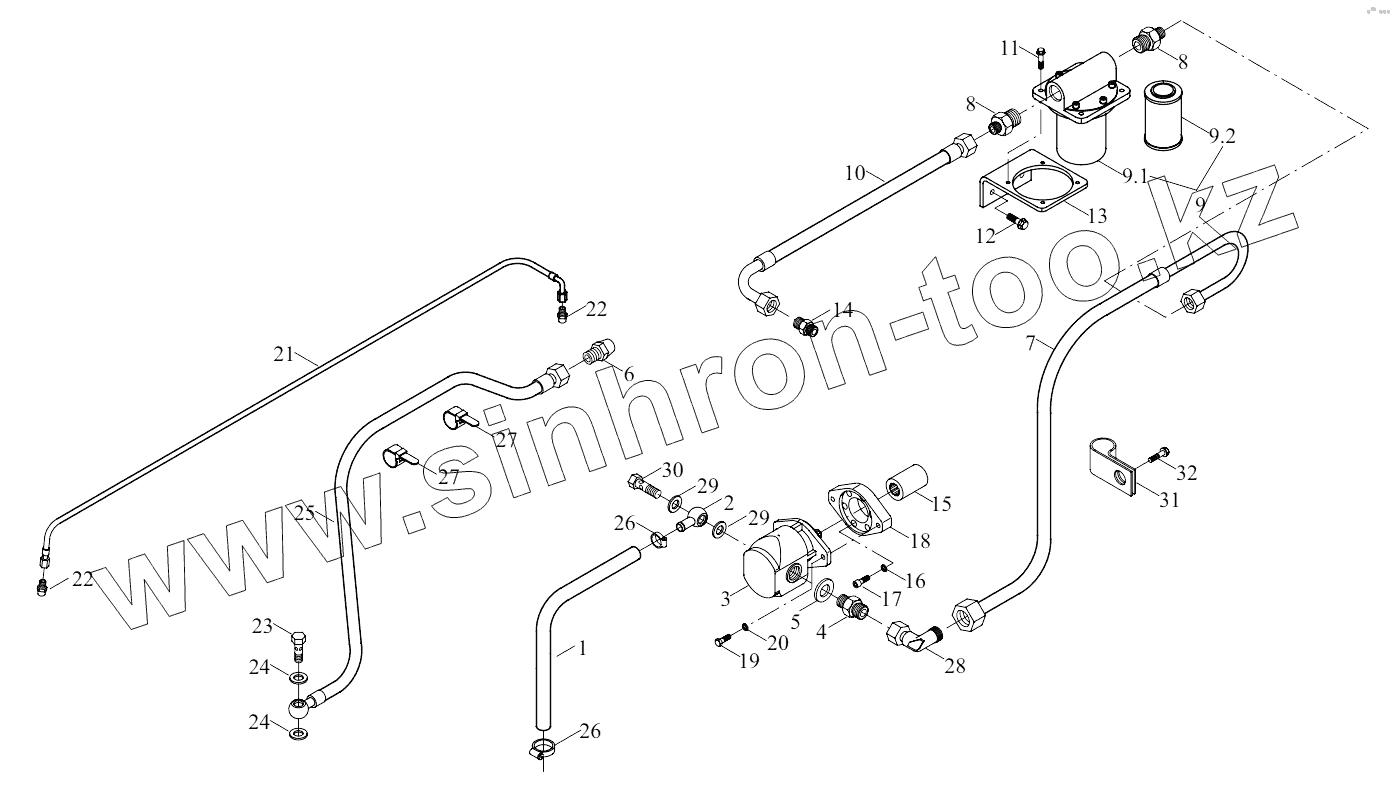

Каталог запасных частей к технике: Foton FL935E. 9D550-31B000000A0 Converter gearbox oil circuit
1
2
3
4
5
6
7
8
8
9
9.1
9.2
10
11
12
13
14
15
16
17
18
19
20
21
22
22
23
24
24
25
26
26
27
27
28
29
29
30
31
32
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 9D550-31A000001A1 | Transmission pump Oil suction hose | |
| 2 | 9D650-31A000002A0 | Transmission pump Oil suction joint | |
| 3 | 9D650-31A010000A0 | Transmission pump | |
| 4 | 9D650-31A000006A0 | Transmission pump oil outlet joint | |
| 5 | JBT982-27 | Compound seal gasket | |
| 6 | 9D650-31A000009A0 | Main pressure valve joint2 | |
| 7 | 9D650-31A020000B0 | Filter oil inlet hose | |
| 8 | 9D650-31A000007B0 | Filter joint | |
| 9 | 9D650-31A030000C0 | Low-pressure filter | |
| 9.1 | 9D650-31A030100C0 | Low-pressure filter housing | |
| 9.2 | 9D650-31A030200A0 | Filter cartridge | |
| 10 | QLWZG056.2-0120750 | 24°taper hose assembly | |
| 11 | GBT16674.1-M8X20-8.8-A2L | Bolt | |
| 12 | GBT16674.1-M12X30-8.8-A3L | Bolt | |
| 13 | 9D650-31A000012B0 | Filter installation trestle | |
| 14 | 9D650-31A000008A0 | Main pressure valve joint1 | |
| 15 | 9D650-31A000005A0 | Transmission pump connecting sleeve | |
| 16 | GBT93-8-A3L | Washer | |
| 17 | GBT70.1-M8X20-8.8-A2L | Hexagon socket cap head screw | |
| 18 | 9D650-31A000004A0 | Transmission pump flange | |
| 19 | GBT5783-M10X30-8.8-A3L | Hex bolt | |
| 20 | GBT93-10-A3L | Washer | |
| 21 | QLWZG056.2-0041200 | 24°taper hose assembly | |
| 22 | 9D650-31A000011A0 | Oil-spill joint | |
| 23 | 9D650-31A000010A0 | Adjustable fitting | |
| 24 | JBT982-22 | Compound seal gasket | |
| 25 | 9D550-31A010000A0 | Hose into transmission valve | |
| 26 | 9D650-31A070000A0 | Steelwire type hoop | |
| 27 | 9F850-62А000001А0 | Lock cable ties | |
| 28 | 9D650-31A080000A0 | Transit joint | |
| 29 | JBT982-33 | Compound seal gasket | |
| 30 | 9D650-31A000003A0 | Transmission pump joint bolt | |
| 31 | 9D652-31A020000A0 | Clip | |
| 32 | GBT16674.1-M10X20-8.8-A3L | Bolt |
