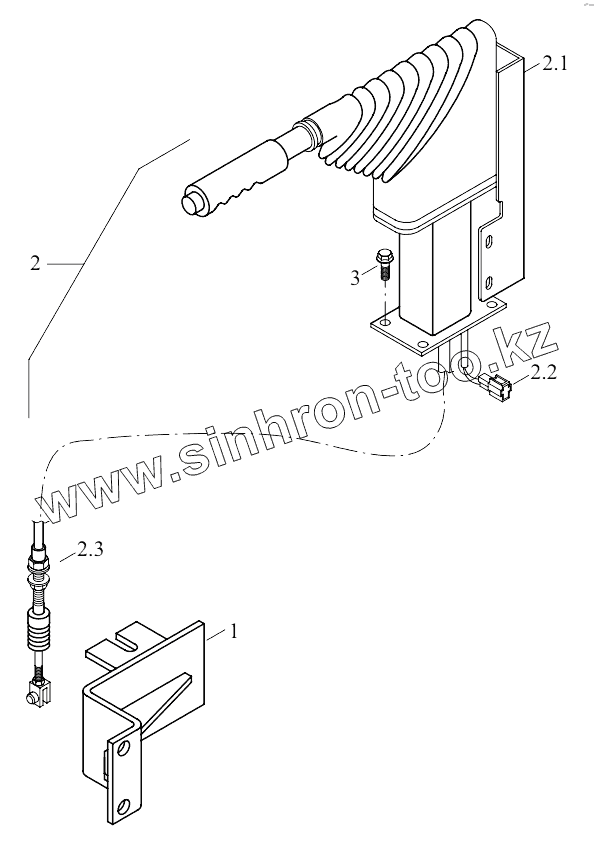

Каталог запасных частей к технике: Foton FL935E. 9D550-29B000000A0 Parking and auxiliary brake system

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано FL917F (2009) FL935E (2012) FL936F (FL936FH4C1B2X1A105) (2011) FL958G (2015) Foton-FL936F (2007) Foton-FL958G (2007) TB454-Q161Y20K TL254 (TL1A254-001K)

Схема > Не выбрано 9D650-01A000000A0 Engine assembling 9D550-02B000000A0 Radiator assembly 9D550-03A000000A0 Preheating system 9D650-05A000000A0 Throttle control system 9D652-06A000000A0 Flameout device 9D650-08A000000A0 Fuel tank assembling 9D550-11C000000A0 Front frame welding assembly 9D550-12A000000A0 Jiont assembly 9D550-13G000000A0 Rear frame weldment assembly 9D650-14A000000B0 Auxiliary frame assembly 9D550-15A000000A0 Ballast 9D550-16C000000A0 Front frame accessories 9D550-17C000000A0 Rear frame accessories 9D550-21A000000A0 Converter assembling 9D650-23A000000A0 Gearbox assembling 9D550-24B000000A0 Gearbox assembling B00508+9D550-24B000000A0 Hangchi Gearbox Assembly ZL20X2 B00508+ZL20-037000X2A Gearbox oil filling pipe assembly B00508+ZL20-030001-71 Gearbox Body Parts B00508+ZL20-030100A Ventilator assembly B00508+ZL20-036000X1 Reverse gear shaft assembly B00508+ZL20-032000X1 Input shaft assembly B00508+ZL20-033000X1 Intermediate shaft assembly B00508+ZL20-032100 Clutch assembly B00508+ZL20-030072-77 Output shaft assembly B00508+ZL20-030044-55 High-low gear shift fork mechanism B00508+ZL20-038000J Hand brake assembly B00745+9D550-24B000000A0 Qingzhou Jingyi Gearbox assembling ZL30-в…ў B00745+ZL30.07-00 Gearbox oil filling pipe assembly B00745+ZL30.01-00 Gearbox Body Parts B00745+ZL30.12-00 Breather assembly B00745+ZL30.10-00 Reverse gear shaft assembly B00745+ZL30.04-00 Intermediate shaft assembly B00745+ZL30.02-00 Output shaft assembly B00745+ZL30.03-00 Input shaft assembly B00745+ZL30.10-00.01 Big overrun clutch B00745+ZL30.08-00 High and low gear shifting fork mechanism B00745+ZL30.13-00 Hand brake assembly B00745+ZL428-00 Transmission valve assembly 9D550-25A000000A0 Transmission shaft assembling 9D650-26A000000B0 Front drive axle assembling B00718+9D650-26A010000B0 Shandong Yunyu front axle assembly ZL30 B00718+ZL30.2.2E Hub Reducer Assembly B00718+ZL30.2.3D Axle housing assembly B00718+408100D Brake assembly B00718+ZL30.2.1A Front Main Reducer Assembly B00718+ZL30.2.4 Differential Assembly 9D650-27A000000B0 Rear drive axle assembly B00718+9D650-27A010000B0 Shandong Yunyu rear axle assembly ZL30 B00718+ZL30.2.2E Hub Reducer Assembly B00718+ZL30.2.3D Axle housing assembly B00718+408100D Brake assembly B00718+ZL30.2.1B Front Main Reducer Assembly B00718+ZL30.2.4 Differential Assembly 9D550-29B000000A0 Parking and auxiliary brake system 9D550-31B000000A0 Converter gearbox oil circuit 9D550-32B000000A0 Transmission oil radiator connecting pipeline 9D550-33A000000A0 Transmission system oil return pipeline 9D650-34A000000B0 Wheel assembly 9D550-35B000000A0 Brake pressure system 9D550-36C000000A0 Brake control system 9D650-37A000000B0 Drive axle pipeline system 9D650-44B000000A0 Seat assembly 9D650-45A000000B0 Cab Installation Assembly 9D650-45A020000A0 Cab upholstery assembly 9D650-45A030000B0 Cab exterior mountings assembly 9D550-46E000000B0 Floor platform assembly system 9D650-47A000000B0 Bonnet assembly 9D550-48B000000A0 Mudguard and cover plate assembly 9D550-54C000000A0 Steering hydraulic system 9D550-55D000000A0 Working cylinder system 9D550-56A000000B0 Working oil pump system 9D550-58D000000A0 Hydraulic oil tank 9D550-59C000000A0 Hydraulic control system 9D550-62A000000A0 Front frame wiring 9D650-63C000000A0 Cab circuit 9D550-64C000000A0 Rear frame wiring 9D550-65A000000A0 Battery wiring and assembling 9D550-66C000000A0 Instrument assembly 9D550-67A000000A0 Air conditioner system 9F853-69A080000A0 Electric fan assembly 9D650-72G000000A0 Link mechanism 9D653-73A000000A0 Bucket assembly (1.8m3) 9D650-76E000000A0 Work implement attachments 9D550-83A000000A0 Transmission control system 9D550-84D000000A0 High-low shift control system

1

2

2.1

2.2

2.3

3

Позиция на иллюстрации	Заводской номер детали		Название детали
1	9D650-29A020000A0		Soft shaft bracket
2	9F550-29A010000A0		Parking brake control mechanism
2.1	9F550-29A010100A0		Parking brake control bracket
2.2	9F550-29A010300A0		Parking brake indicator switch
2.3	9F650-29A010200A0		Parking brake control soft shaft
3	GBT16674.1-M10X20-8.8-A2L		Bolt
