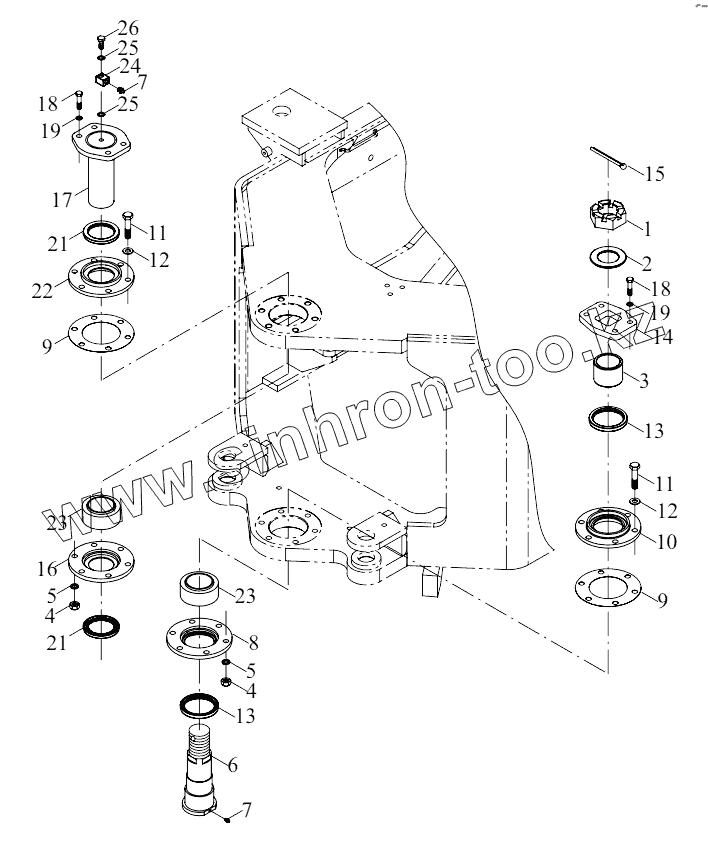

Каталог запасных частей к технике: Foton FL935E. 9D550-12A000000A0 Jiont assembly
1
2
3
4
4
5
5
6
7
7
8
9
9
10
11
11
12
12
13
13
14
15
16
17
18
18
19
19
21
21
22
23
23
24
25
25
26
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 9D650-12A000008A0 | Big nut | |
| 2 | 9D550-12A000008A0 | Big washer | |
| 3 | 9D550-12A000007A0 | Bushing | |
| 4 | GBT6170-M12-8-A3L | Nut | |
| 5 | GBT93-12-A3L | Washer | |
| 6 | 9D550-12A030000A0 | Lower joint shaft | |
| 7 | JBT7940.1-M10X1 | Straight pressure filling oil cup | |
| 8 | 9D550-12A000002A0 | Lower joint lower bearing seat | |
| 9 | 9D650-12A000003A0 | Adjusting gasket | |
| 10 | 9D550-12A000004A0 | Lower joint upper bearing seat | |
| 11 | GBT5782-M12X70-8.8-A3L | Hex bolt | |
| 12 | GBT848-12-A3L | Washer | |
| 13 | GBT9877.1-B70X90X10D | Lip-shape seal ring | |
| 14 | 9D550-12A000005A0 | Upper baffle | |
| 15 | GBT91-8X90-A3L | Cotter pin | |
| 16 | 9D550-12A000006A0 | Upper joint lower bearing seat | |
| 17 | 9D550-12A010000A0 | Upper joint shaft | |
| 18 | GBT5783-M10X40-8.8-A3L | Bolt | |
| 19 | GBT93-10-A3L | Washer | |
| 21 | GBT9877.1-B60X85X8D | Lip-shape seal ring | |
| 22 | 9D550-12A000001A0 | Upper joint upper bearing seat | |
| 23 | GBT9163-GE60ES | Radial spherical plain bearing | |
| 24 | 9D650-12A000010A0 | Lubrication oil block | |
| 25 | JBT982-10 | Combined seal gasket | |
| 26 | 9F550-16A000004A0 | Oilthrough bolt |
