Каталог запасных частей к технике: Foton FL917F. Wheel loader-FL917F

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
29
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47

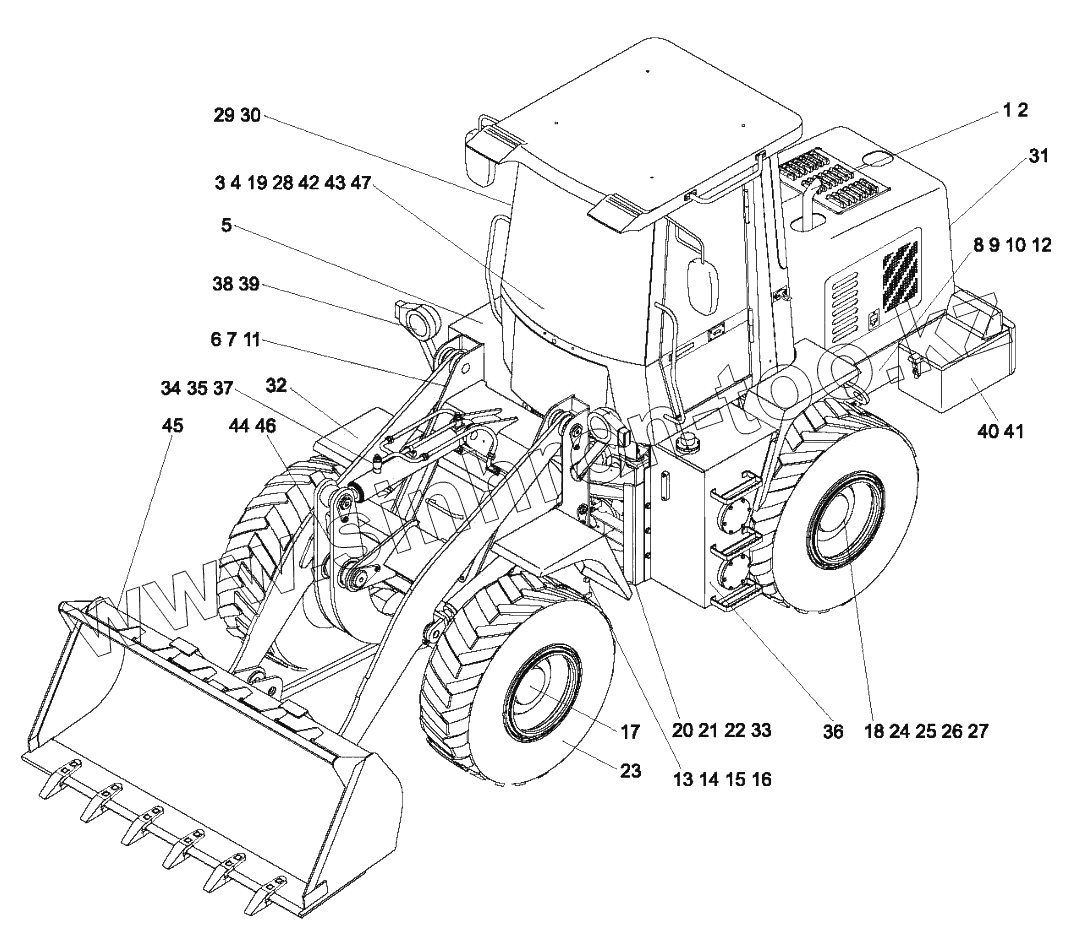

Позиция на иллюстрации Заводской номер детали Название детали
1 9B650-01A000000A0 Engine assembly
2 9B650-02B000000A0 Radiator assembly
3 9B650-05A000000A0 Throttle control system
4 9B650-06A000000A0 Strangler
5 9B650-08A000000A0 Fuel tank assembly
6 9B650-11A000000A0 Welded front chassis assembly
7 9B650-12A000000A0 Joint assembly
8 9B650-13A000000A0 Welded rear chassis assembly
9 9B650-14A000000A0 Subframe Assembly
10 9B650-15A000000A0 Balance Assembly
11 9B650-16A000000A0 Front chassis accessories
12 9B650-17A000000A0 Rear chassis accessories
13 9B650-21A000000A0 Torque converter assembly
14 9B650-23A000000A0 Fixing the gearbox assembly
15 9B650-24A000000A0 Gearbox assembly
16 9B650-25A000000A0 Drive shaft assembly
17 9B650-26A000000A0 Front axle assembly
18 9B650-27A000000A0 Rear axle assembly
19 9B650-29A000000A0 Auxiliary and parking brake system
20 9B650-31A000000A0 Converter and gearbox oil circuit
21 9B650-32A000000A0 Transmission connections oil circuit
22 9B650-33A000000A0 Transmission return circuit
23 9B650-34A000000A0 Wheel assembly
24 9B650-35A000000A0 Brake feeding system
25 9B650-36A000000A0 Brake control system
26 9B650-37A000000A0 Shafts pipe system
27 9B650-38A000000A0 Power cut system
28 9B650-44A000000A0 Seat assembly
29 9B650-45A010000A0 Welded cabin Assembly
29 9B650-45A020000A0 Internal cabin Assembly
29 9B650-45A030000A0 External cabin Assembly
30 9B650-46A000000A0 Floor assembly
31 9B650-47A000000A0 Engine cover Assembly
32 9B650-48A000000A0 Fender Assembly
33 9B650-54A000000A0 Power steering system
34 9B650-55A000000A0 Working cylinder system
35 9B650-56A000000A0 Working oil pump system
36 9B650-58A000000A0 Hydraulic oil reservoir Assembly
37 9B650-59A000000A0 Hydraulic control system
38 9B650-62A000000A0 Electrical circuit of the front chassis
39 9B650-63A000000A0 Electrical circuit of the cabin
40 9B650-64A000000A0 Rear chassis electrical circuit
41 9B650-65A000000A0 Battery electrical circuit
42 9B650-66A000000A0 Instrument cluster
43 9B650-67A000000A0 Air heating system
44 9B650-72A000000A0 Working mechanism
45 9B650-73A000000A0 Standard bucket Assembly
46 9B650-76A000000A0 Working mechanism accessories
47 9B650-83A000000A0 Change control system
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
