Каталог запасных частей к технике: Foton FL917F. 9B650-55A000000A0 Working cylinder system
1
2
2
3
3
3
4
5
6
6
7
7
8
8
8
8
8
8
8
8
8
8
9
9
10
10
11
12
13
13
13
14
15
16
16
17
17
17
18
19
20
21
22
23
23
24
25
26
27
28
29
30
30
30
30
30
31
31
31
31
31
31
31
31
32
32
33
34
35
35
36
36
36
36
37
38

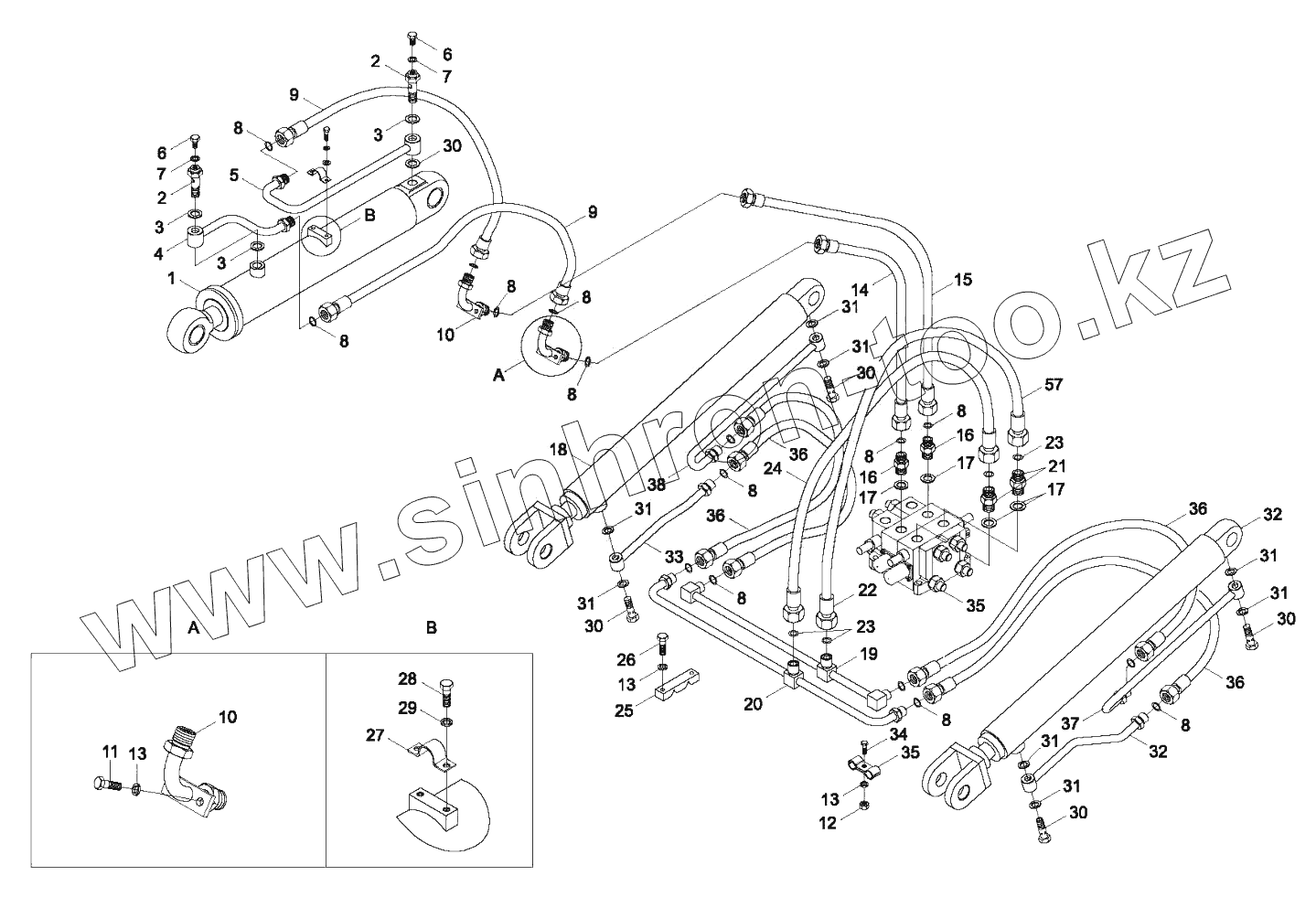

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 9B650-55A010000A0 | Bucket cylinder | |
| 2 | 9B650-55A000001A0 | Screw | |
| 3 | JBT982-22 | Compound seal gasket | |
| 4 | 9B650-55A020000A0 | Tube | |
| 5 | 9B650-55A030000A0 | Tube | |
| 6 | FB-JB1000-77-M14x1.5 | Hexagonal plug | |
| 7 | JBT982-14 | Combined seal gasket | |
| 8 | GBT3452.1-17.0x1.80G | "O"Ring | |
| 9 | 9B650-55A040000A0 | Hose | |
| 10 | 9B650-55A050000A0 | Steel pipe | |
| 11 | GBT5783-M10x20-A3L | Hex bolt | |
| 12 | GBT6170-M10-A3L | Nut | |
| 13 | GBT93-10-A0P | Washer | |
| 14 | 9B650-55A060000A0 | Steel pipe | |
| 15 | 9B650-55A070000A0 | Steel pipe | |
| 16 | 9B650-55A000003A0 | Union | |
| 17 | JBT982-27 | Compound seal gasket | |
| 18 | 9B650-55A080000A0 | Arm cylinder | |
| 19 | 9B650-55A090000A0 | Steel pipe | |
| 20 | 9B650-55A100000A0 | Steel pipe | |
| 21 | 9B650-55A000002A0 | Union | |
| 22 | 9B650-55A110000A0 | Hose | |
| 23 | GBT3452.1-19.0x1.80G | "O"Ring | |
| 24 | 9B650-55A120000A0 | Hose | |
| 25 | 9B650-55A000004A0 | Clamp | |
| 26 | GBT5782-M10x55-A2L | Hex bolt | |
| 27 | 9D650-55A000001A0 | Pipe clamp | |
| 28 | GBT5783-M8x16-A2L | Hex bolt | |
| 29 | GBT93-8-A0P | Washer | |
| 30 | 9B650-55A000005A0 | Screw | |
| 31 | JBT982-18 | Combined seal gasket | |
| 32 | 9B650-55A130000A0 | Steel pipe | |
| 33 | 9B650-55A140000A0 | Steel pipe | |
| 34 | GBT5783-M10x25-A3L | Hex bolt | |
| 35 | 9B650-55A000006A0 | Pipe clamp | |
| 36 | 9B650-55A150000A0 | Hose | |
| 37 | 9B650-55A160000A0 | Steel pipe | |
| 38 | 9B650-55A170000A0 | Steel pipe |
