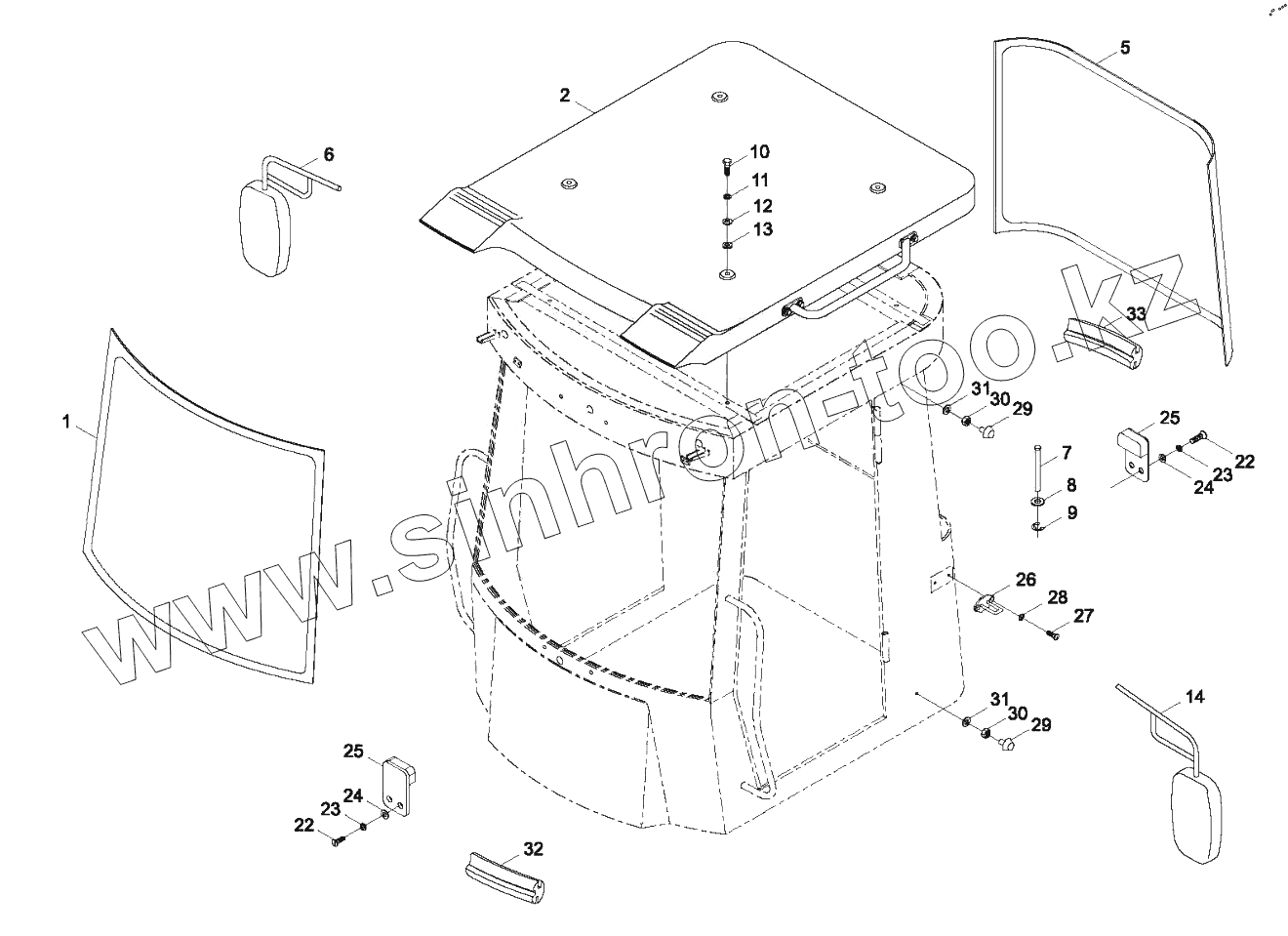

Каталог запасных частей к технике: Foton FL917F. 9B650-45A030000A0 External cabin Assembly

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
5
6
7
8
9
10
11
12
13
14
22
22
22
22
23
23
23
23
24
24
24
24
25
25
25
25
26
26
27
27
28
28
29
29
29
29
30
30
30
30
31
31
31
31
32
32
33
33
Позиция на иллюстрации Заводской номер детали Название детали
1 9B650-45A030001A0 Front windshield glass
2 9B650-45A030100A0 Ceiling cover Assembly
3 9B650-45A030400A0 Left door assembly
4 9B650-45A030500A0 Right door assembly
5 9B650-45A030002A0 Rear window
6 9B650-45A030300A0 Right outside rearview mirror assembly
7 9F850-45A030007A0 Pin
8 9F850-45A030008A0 Washer
9 GBT894.1-12 WASHER
10 GBT5783-M12x35-8.8-A3L Hex bolt
11 GBT93-1-A0P Pressure washer
12 GBT97.1-12-A0P Washer
13 9F850-45A030005A0 Top cover washer
14 9B650-45A030200A0 Left outer rearview mirror assembly
15 9F850-45A030600A0 Left door lock
16 9F850-45A030700A0 Right door lock
17 GBT6170-M12-A3L Type 1 hexagon nut
18 GBT819.1-M6x25-A2L Screw
19 GBT956.1-6 Recess
20 GBT97.1-6-A0P Plain washer
21 GBT889.1-M6 Type 1 hexagon nut with non-metallic insert
21 GBT889.1-M6 Type 1 hexagon nut with non-metallic insert
22 GBT818-M5x10-A2L Cross recessed pan head screw
22 GBT818-M5x10-A2L Cross recessed pan head screw
23 GBT93-5-A0P Normal type single coil spring lock washer
23 GBT93-5-A0P Normal type single coil spring lock washer
24 GBT97.1-5-A0P Plain washer
24 GBT97.1-5-A0P Plain washer
25 9F850-45A030800A0 Glass jacket components
25 9F850-45A030800A0 Glass jacket components
26 9F850-45A030900A0 Open fixing lock weldment
26 9F850-45A030900A0 Open fixing lock weldment
27 GBT819.1-M8x20-A2L Cunersunk flat head screw with cross recess
27 GBT819.1-M8x20-A2L Cunersunk flat head screw with cross recess
28 GBT956.1-8 Recess
28 GBT956.1-8 Recess
29 9F850-45A030006A0 Door-opening limitation block
29 9F850-45A030006A0 Door-opening limitation block
30 GBT6170-M8-A2L Type 1 hexagon nut
30 GBT6170-M8-A2L Type 1 hexagon nut
31 GBT97.1-8-A0P Washer
31 GBT97.1-8-A0P Washer
32 9B650-45A030003A0 Front glass seal
32 9B650-45A030003A0 Front glass seal
33 9B650-45A030004A0 Rear window sealing
33 9B650-45A030004A0 Rear window sealing
34 9B650-45A030800A0 Welded left door assembly
34 9B650-45A030800A0 Welded left door assembly
35 GBT818-M6x20-A2L Cross recessed countersunk screw
35 GBT818-M6x20-A2L Cross recessed countersunk screw
36 9F850-45A031700A0 Open-door spacing block
36 9F850-45A031700A0 Open-door spacing block
37 9B650-45A030401A0 Top left door glass
37 9B650-45A030401A0 Top left door glass
38 GBT819.1-M6x16-A2L Cross recessed countersunk screw
38 GBT819.1-M6x16-A2L Cross recessed countersunk screw
39 GBT97.1-6-A0P Plain washer
39 GBT97.1-6-A0P Plain washer
40 GBT889.1-M6 Type 1 hexagon nut with non-metallic insert
40 GBT889.1-M6 Type 1 hexagon nut with non-metallic insert
41 9B650-45A030402A0 Bottom left door glass
41 9B650-45A030402A0 Bottom left door glass
42 9F850-45A031800A0 Open-door fixing lock
42 9F850-45A031800A0 Open-door fixing lock
43 9B650-45A030900A0 Welded right door assembly
43 9B650-45A030900A0 Welded right door assembly
44 9B650-45A030501A0 Right door top glass
44 9B650-45A030501A0 Right door top glass
45 9B650-45A030502A0 Right door bottom glass
45 9B650-45A030502A0 Right door bottom glass
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
