Каталог запасных частей к технике: DYNAPAC SD2550CS. Track drive

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано CA1400 (2016) CA2500D (2016) CA2500D (2018) CA2500D-PD (2018) CA250D (2011) CA252D (2008) CA2800D (2017) CA3500D (2016) CA4000D (2017) CA4000D (2020) CA4600D (2019) CA5500D (2015) CA610PD (2014) CA6500 (2018) CC1000 (2019) CC1100CC (2015) CC1200C Plus (2015) CC1200C VI (2018) CC1200CC (2018) CC125 (2015) CC1250 (2015) CC1300 (2018) CC1300C (2015) CC1300C (2016) CC2200 (2018) CC2200 (2020) CC2300C (2018) CC3300 (2018) CC4000 VI (2018) CC4200C VI (2020) CC5200C (2018) CC6200 VI (2020) CC800 (2019) CC900 (2018) CC900S (2018) CG2300 (2018) CP142 (2015) CP275 (2014) Dynapac CA1500 (2017) Dynapac CA2500 (2012) Dynapac CA302D (2008) Dynapac CA302D (2010) Dynapac CA5000D (2017) Dynapac CC142 (2009) Dynapac CC2200C (2015) Dynapac CC224HF (2012) Dynapac CC322 (2008) Dynapac CC422 (2010) Dynapac CC5200 (2014) Dynapac CC5200 (2017) Dynapac CC5200 (2017) Dynapac CC5200 VI (2017) Dynapac CC800 (2013) Dynapac CC800 (2014) Dynapac F1200C/CS (2018) Dynapac F1200CS/CS (2018) Dynapac F1800C (2018) Dynapac F181C (2010) Dynapac PL2000LS (2010) Dynapac PL2000LS (2010) Dynapac PL2000S (2010) Dynapac PL2000S (2010) Dynapac SCC1300 (2014) Dynapac SD2500C (ч. 1) (2018) Dynapac SD2500C (ч. 2) (2018) Dynapac SD2550C (ч. 1) (2018) Dynapac SD2550C (ч. 2) (2018) F2500C (2018) SD2550CS (2015)

Схема > Не выбрано Wear part and Inspection kits TIER3 Wear part kit rubber plates Wear part kit conveyor chain Wear part kit conveyor drive Wear part kit reversing roller Wear part kit conveyor plates Wear part kit conveyor guide plates Wear part kit auger wing Ø500mm Spare parts gear Spare parts gear Hopper rubber kit, standard Service kit 500 hrs TIER 3 Service kit 500 hrs Plus TIER 3 Service kit 1000 hrs TIER 3 Service kit 1000 hrs TIER 3, stage 2 Sprocket repair kit Main frame, cpl. 4812028721 Side arm guiding 4812028725 Splash guard 4812036083 Steering guide Gr.04 Conveyor, double no. of bars (4812028401A) Conveyor motor 4812029121 Hydraulic conveyor Conveyor limit switch, PLC 4812044937 Conveyor limit switch, r.h. 4812031045 Potentiometer, r.h. 4812044936 Conceyor limit switch, l.h. 4812031044 Potentiometer, l.h. Conveyor 4812027438 Conveyor drive Conveyor drive D635060800A Chain guide Conveyor turn 4812026815 Tensioner Push roller, hydraulic, cpl. (To 10002121K0C002520/10002119E0C001787) Pillow block Hydraulic, push roller Control block Push roller, hydraulic, cpl. (From 10002121K0C002521 / 10002119E0C001788) 4812031995 Gr.05 Hopper 4812028563 Bulk material flap Hopper, l.h. 4812029458 Hopper lock Hopper, r.h. Covering Isoliert (To) Bulk head 4812030755 Hood fastener 4812030891 Intermediate section 4812034771 Air guide, r.h. 4812034772 Air guide, rear 4812034763 Support plate, l.h. 4812034767 Support plate, r.h. 4812034770 Air guide, l.h. 4812034779 Retainer 4812034776 Cover 4812044351 Door 4812041407 Support rod 4812034765 Door 4812033167 Stop bolt 4812044306 Hood center part, r.h. 4812034713 Locking 4812044371 Hood center part, l.h. 4812033243 Covering center part, l.h. 4812033244 Covering center part, r.h. 4812044596 Disc frame 4812034891 Cover, r.h. 4812034849 Cover, l.h. Isolation Covering Isoliert (From) 4812225708 Door, l.h. 4812226336 Door, l.h. 4812225725 Door, r. h. 4812226380 Retainer, l.h. 4812226135 Retainer, r.h. Auger Ø500mm, basic width 4812027479 Mounting parts Auger box 4812026736 Outer support 4812004559 Auger support Auger gear Spare parts gear Auger gear 4812032042 Auger Ø500mm, 8,26m 4812032422 Auger Ø500mm, 8,26m 4812032170 Auger extension, l.h. L:960 mm 4812032171 Auger extension, r.h. L:960 mm 4812032172 Auger extension, l.h. 640mm 4812032173 Auger extension, r.h. 640mm 4812028782 Strut material duct, l.h. L:960mm 4812028787 Strut material duct, r.h. L:960mm 4812028789 Strut material duct L:960mm 4812032406 Auger wing Ø500mm, l.h. 4812032407 Auger wing Ø500mm, r.h. 4812028792 Material tunnel, cpl. L:640mm 4812028794 Material tunnel, cpl. L:320mm 4812032175 Auger extension, r.h. 320 mm 4812032174 Auger extension, l.h. 320 mm 4812032802 Protection cover L:960 mm 4812032803 Protection cover L:640mm 4812032804 Protection cover L:320 mm Outer support D438081200 End support 4812029259 Brace 4812028882 Cross struts End support, plate D439082200 End support 4812032043 Auger Ø500mm, 8,90m 4812032434 Auger Ø500mm, 8,90m 4812032541 additional Extension parts 4812032044 Auger Ø500mm, 9,54m 4812032436 Auger Ø500mm, 9,54m 4812030927 Material tunnel, cpl. L:960mm 4812032045 Auger Ø500mm, 10,18m 4812032438 Auger Ø500mm, 10,18m 4812032472 Brace package wide 4812032544 additional Extension parts 4812032046 Auger Ø500mm, 10,82m 4812032440 Auger Ø500mm, 10,82m 4812032502 additional Extension parts 4812032047 Auger Ø500mm, 11,46m 4812032442 Auger Ø500mm, 11,46m 4812030906 Auger level indicator 4812027721 Mech. hight adjustment auger 4812027720 Ratchet 4812031793 Auger limit switch ultrasonic 4812228334 Retainer 4812032431 Electric 4812035023 Spot light for auger 4812028823 Spot light 4812027554 Gr.06 Side Screed arms, mech. locked 4812029222 Locking, mechanical Side screed arm, l.h. Side screed arm, r.h. Front guide wheels Drive TIER 3 4812026687 Engine Engine drain hose kit Fuel tank 4812030294 Attaching parts 4812030230 Muffler 4812030290 Fuel system 4812046937A Engine support 4812005952 Cable W12 Service parts Combined cooler / air filter 4812038352 Combined cooler Combined cooler / air filter Combined cooler Local radiator 4812037845 End pipe / rotary feedthrough 4812037585 Joint rod 4812039759 Gr.08 Split gear 4812009405 Gearbox 4812038966 Split gear 4812009002 Motor coupling 4812037689 Gear oil drain Gr.08 Split gear box 4812026127 Pump 4812026128 Pump 4812031533 Adjustable pump 4812026146 Pump 4812026131 Pump Gr.02 Track group Track group, long, l.h. Drive gear box Track group, long, r.h. 4812028439 Track cleaner, cpl. l.h. and r.h. 4812030910 Scraper, L.H. 4812030911 Scraper, R.H. Track group Track group support Crawler, r.h.cpl., with hopper support assy Crawler, long, r.h.cpl. Track roller, cpl. Track roller, cpl. Track drive 4812027194 Drive gear box Track chain Crawler, l. h. cpl., with hopper support assy Crawler, long, l.h. cpl. 4812043329 Track cleaner, cpl. 4812043340 Track cleaner 4812043349 Locking laver Drivers seat, cpl. 4812039573 Gr.12 Ascension fГјr R- Bohlen 4812039568 Ascent, middle 4812038797 Ascent, l.h. 4812039420 Ascent, r.h. Box 4812039571 Gr.12 Ascension f. Varioscreed / f. Variobohle 4812039193 Ascent, middle 4812041717 Gr.11 Op. platf., moveable, roof, short 4812041577 Operation platform V3, moveable, roof, short 4812029859 Cable harness W14 Platform, moveable Linear guide 4812040752 Support operator desk, foldable 4812040753 Platform 4812041298 Bottom plate, middle 4812041406 Railing, side 4812041254 Railing, front 4812041408 Track shoe 4812040799 Console. l.h. 4812040830 Seat retainer 4812041041 Console, r.h. 4812041042 Seat retainer Roof, short, cpl. 4812040471 Roof, short Front frame Roof frame 4812040327 Joint 4812040329 Joint 4812037524 Lamp holder Roof hydraulic 4812043525 Hydr. roof adjustment 4812033253 Wiring roof 4812033224 Cable W25 Hydraulic, operation platform 4812033247 Control block Hydraulic Hydraulic, drive system Manual pump brake release 4812027655 Hydraulic, auger 4812027656A Hydraulic, conveyor 4812010974 Connecting plate 4812010925 Connecting plate 4812007012 Control block 4812027657 Hydraulic, tamper/vibration Hydraulic, fan 4812044338 Filter Hydraulic tank, collector Hydraulic tank, cpl. Hydraulic tank, cpl. 4812028135 Return suction filter 4812009435 Return suction filter Work hydraulic 4812029598 Control block 4812044676 Add on kit 4812026616 Control block 4812036359 Control block 4812036358 Control block 4812033967 Control block 4812035052 Ganged valve support 4812035032A Hose package screed 616 / 617 4812036460 Screed in / out 4812035034A Tamper / Vibration 4812007545 Hose package screed R300 Konstant / constant 4812036353A Screed in / out 4812007542 Tamper / Vibration Konstant / constant 4812007541 Hose package screed R300 Konstant / constant 4812007509 Screed in / out R300 VT 4812037372 Hose package roof profile 616/617 4812037363A Hose package screed 616 / 617 4812036309 Hose package screed R300 Verstell / variable 4812036364 Tamper / Vibration 4812007508 Hose package screed R300 Verstell / variable Cylinder schema Electric Electric, PLC Junction box 4812026356 Steering unit 4812038534 Operator desk 4812038371 Vandalism protection 4812227674 Vandalism protection Cable W11 4812029597 Wiring 4812029580 Cable W1 4812009669 Cable W2 4812029589 Cable W3 4812038524 Cable W4 4812029590 Cable W5 4812038525 Cable W6 4812011129 Cable W7 4812038527 Cable W8 4812029595 Cable W9 4812029596 Cable W10 4812029858 Cable harness W13 4812029860 Cable harness W15 4812029861 Cable harness W16 4812029862 Cable harness W17 4812029971 Cable harness W23 D977436121 Ground strap 4812030003 Cable W24 4812038555 Cable harness W19 4812038554 Cable W19 4812033060 Mounting parts W19 4812038587 Remote control 4812009789 Remote control 4812029936 12V installation Leveling D900626011 Slope transmitter 4812038617 Digirotary Kit 4812012279 Box MOBA-Matic 4812040056 Fire extinguisher Emulsion spray system Spraying tank cpl. Spraying tank cpl. Hose package Electric emulsion spray system Tool box Tools Tools and accessories Decal installation and accessories Type lable Name plate Decals tracked paver Inscription 4812035395 Spot light 4812029934 Back-up alarm 4812028982 Refueling equipment 4812029968 Refueling equipment 4812027698 Hydr. hight adj. auger Hydraulic, auger (4812027603) 4812032415 Bio hydraulic oil / Panolin 4812027607 Hydr. partial flow filter D964013553 Partial flow filter 4812038790 Emulsion spray system 4812038837 Tank with pump 4812042118 Hose reel 4812002731 First-aid kit D930520150 First-aid kit 4812041720 Gr.11 Op. platf., moveable, roof, long 4812041580 Operation platform V3, moveable, roof 4812041414 Platform, moveable 4812040290 Linear guide Roof, long, cpl. 4812040503 Roof, long Hydraulic, operation platform(4812027610) 4812036192 Rotaflare light, PLC, with roof 4812036227 Retainer 4812029933 Electric rotaflare light 4812035837 Slip-on pipe 4812035432 Rotaflare light, PLC, without roof 4812033636 Retainer 4812037881 Central lubrication 4812037782 Kit central lubrication f. auger 4812030073 El. option central lubrication 4812037776 Pump 4812037777 Pump 4812033051 Option engine room lighting 4812032889 Engine room lighting 4812029937 Engine room lighting, electric 4812032841 Lamp interior 4812030495 500W Spot light Halogen spot light D977900136 Halogen spot light 4812036596 cable cpl. 4812038541 Sonic-Ski 4720000701 Wire tensioner cpl. 4812038616 Ultrasonic sensor 4812038602 Sensor 4812041999 Big Ski 13 m cpl. 4812041925 Big Ski 13 m 4812038560 Side arm support 4812004304 Side arm support 4812038564 Electric parts big ski 4812042045 Big Ski 9 m cpl. 4812042035 Big Ski 9 m D830031300 Trailing ski, 6m 4700688225 Trailing ski, 6m 4700691720 Mounting parts D830031400 Trailing ski, 9m 4700688226 Trailing ski, 9m

4812043886

4812274577

1

2

3

4

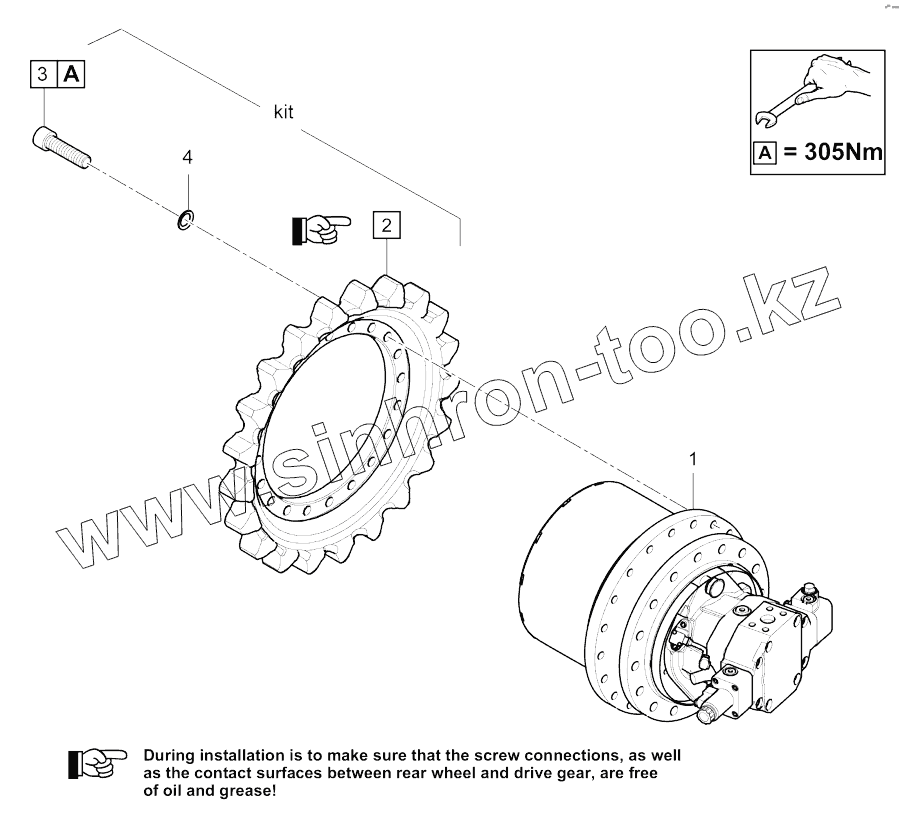

Позиция на иллюстрации	Заводской номер детали		Название детали
4812043886	4812043886		Track drive
4812274577	4812274577		Sprocket repaire kit
1	4812027194		Drive gear box
2	4812011085		Drive sprocket
3	0211171112		Screw
4	0333310049		Lock washer

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
