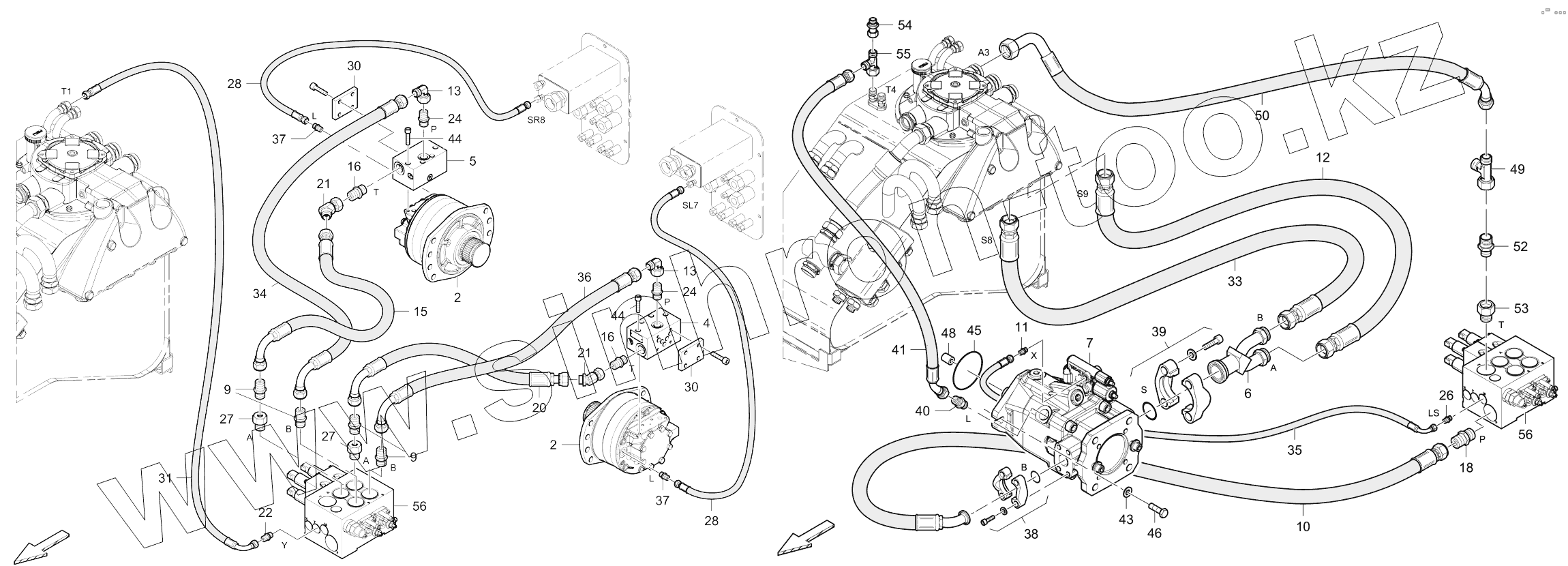

Каталог запасных частей к технике: DYNAPAC SD2550CS. 4812027656A Hydraulic, conveyor

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
2
2
4
5
6
7
9
9
10
11
12
13
13
15
16
16
18
20
21
21
22
24
24
26
27
27
28
28
30
30
31
33
34
35
36
37
37
38
39
40
41
43
44
44
45
46
48
49
50
52
53
54
55
56
56
Позиция на иллюстрации Заводской номер детали Название детали
2 4812026521 Radial piston motor
2.1 4812040231 Seal kit
4 4812010974 Connecting plate
5 4812010925 Connecting plate
6 4812031528 Suction tube
7 4812031533 Variable displacement pump
9 D961935111 Straight double-ended union
10 4812033403 Hose
11 D961935350 Male connector
12 4812033411 Hose
13 D961917011 Elbow socket
15 4812033405 Hose
16 D961935211 Male connector
18 D961935125 Male connector
20 4812033407 Hose
21 D961355023 Elbow union
22 D961935104 Straight double-ended union
24 D961935232 Male connector
26 D961935106 Male connector
27 D961355008 Reduction screwing
28 4812032555 Hose
30 4812029022 Plate
31 4812033402 Hose
33 4812033410 Hose
34 4812033406 Hose
35 4812033404 Hose
36 4812033408 Hose
37 D961935130 Male connector
38 D503070226 Flange
39 D503070229 Flange
39.1 D930211262 Flange
39.2 D932405051 O-ring
39.3 4700508079 Cylinder screw
40 4812033512 Male connector
41 4812035803 Hose
43 D939010401 Washer
44 0211133503 Hexagon socket head cap screw
45 D932218258 O-ring
46 0147140203 Hex. head screw
48 4812035984 Joint part
49 D961919013 Swivel nut branch tee
50 4812047303 Hose
52 4812047324 Reducing union
53 D961154111 Stud
54 D961920615 Reducing socket
55 D961919010 Swivel nut branch tee
56 4812007012 Control block
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
