Каталог запасных частей к технике: DYNAPAC F2500C. 4812017475 Platform V5.1, fix, roof

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано CA1400 (2016) CA2500D (2016) CA2500D (2018) CA2500D-PD (2018) CA250D (2011) CA252D (2008) CA2800D (2017) CA3500D (2016) CA4000D (2017) CA4000D (2020) CA4600D (2019) CA5500D (2015) CA610PD (2014) CA6500 (2018) CC1000 (2019) CC1100CC (2015) CC1200C Plus (2015) CC1200C VI (2018) CC1200CC (2018) CC125 (2015) CC1250 (2015) CC1300 (2018) CC1300C (2015) CC1300C (2016) CC2200 (2018) CC2200 (2020) CC2300C (2018) CC3300 (2018) CC4000 VI (2018) CC4200C VI (2020) CC5200C (2018) CC6200 VI (2020) CC800 (2019) CC900 (2018) CC900S (2018) CG2300 (2018) CP142 (2015) CP275 (2014) Dynapac CA1500 (2017) Dynapac CA2500 (2012) Dynapac CA302D (2008) Dynapac CA302D (2010) Dynapac CA5000D (2017) Dynapac CC142 (2009) Dynapac CC2200C (2015) Dynapac CC224HF (2012) Dynapac CC322 (2008) Dynapac CC422 (2010) Dynapac CC5200 (2014) Dynapac CC5200 (2017) Dynapac CC5200 (2017) Dynapac CC5200 VI (2017) Dynapac CC800 (2013) Dynapac CC800 (2014) Dynapac F1200C/CS (2018) Dynapac F1200CS/CS (2018) Dynapac F1800C (2018) Dynapac F181C (2010) Dynapac PL2000LS (2010) Dynapac PL2000LS (2010) Dynapac PL2000S (2010) Dynapac PL2000S (2010) Dynapac SCC1300 (2014) Dynapac SD2500C (ч. 1) (2018) Dynapac SD2500C (ч. 2) (2018) Dynapac SD2550C (ч. 1) (2018) Dynapac SD2550C (ч. 2) (2018) F2500C (2018) SD2550CS (2015)

Схема > Не выбрано Wear part and Inspection kits TIER 3 4812027478 Wear part kit auger wings O380mm 4812018439 Wear part kit hopper rubber, standard 4812035553 Wear part kit reversing roller 4812035552 Wear part kit conveyor drive 4812029178 Wear part kit conveyor chain, single 4812235936 Wear part kit conveyor guide plates 4812016660 Wear part kit conveyor plates 4812035550 Wear part kit rubber plates 4700691229 Service kit 500 h TIER 3 4812043983 Service kit 500 h Plus TIER 3 4812046969 Service kit 1000 h TIER 3, stage 2 4812023851 Service kit 1000 h Plus TIER 3, stage 2 4812023923 Filter kit 1000h Lubricants and operating substances T3 4812016237 Main frame 4812028721 Side arm guiding 4812231639 Splash guard 4812036083 Steering guide 4812232118 Extension 4812027554A Gr.06 Side Screed arms, mech. locked 4812029222 Locking, mechanical 4812029165 Side screed arm, l.h. 4812232214 Side arm guiding 4720000097 Side arm guiding 4812029197 Side screed arm, r.h. 4812234749 Side arms, locking mechanical 4812233561 Levelling arm, l. h. 4812233564 Levelling arm, r. h. 4812044911A Gr.03 Push roller, hydraulic crosshead 4812046568 Pillow block 4812004491C Covering, isolated 4812225668 Bulk head 4812225657 Air guide, rear 4812225681 Support plate 4812225682 Retainer 4812225689 Cover 4812233556 Covering center part, r.h. 4812009008 Isolation 4812226380 Retainer, l.h. 4812226135 Retainer, r.h. 4812226900 Hood support 4812225685 Hood support 4812226906 Intermediate section 4812225631 Intermediate section 4812226899 Air guide, r.h 4812034771 Air guide, r.h. 4812226902 Air guide, l.h. 4812225640 Air guide, l.h. 4812225708 Door, l.h. 4812226336 Door, l.h. Support rod 4812225725 Door, r. h. 4812226905 Iso- hood, r.h. 4812225715 hood, r.h. 4812226907 Iso- hood, l.h. 4812225717 hood, l.h. 4812226901 Covering center part, l.h. 4812225667 Covering center part, l.h. 4812226463 Disc frame 4812044596 Disc frame 4812226471C Covering 4812200656 Bulk head from s/n FG001594 4812225731 Covering center part, r.h. from s/n FG001594 4812229083 Hopper with dump plate 4812229108 Hopper, l.h. 4812231436 Locking 4812028563 Bulk material flap 4812229107 Hopper, r.h. 4812017475 Platform V5.1, fix, roof 4812017298 Platform 4812017444 Platform 4812011095 Harness W14 4812227769 Bottom plate, middle 4812005148 Base plate 4812225524 Crash protection, r.h. 4812225523 Crash protection, l.h. 4812006340 Sheet tub 4812005104 Holding device 4812006204 Adapte, front r.h. 4812006203 Adapte, front l.h. 4812006206 Adapter, back 4812226122 Roof 4812229224 Locking 4812225528 roof frame rear 4812225474 roof frame font 4812225624 GRP - roof frame 4812005850 Crash protection 4812226856 Crash protection front 4812227773 Roof hydraulic 4812043525 Hydr. roof adjustment 4812017300 Operator board 4812227100 Clamping lever 4812228437 Telescopic pipe set 4812005193 Console 4812007259 Stop bolt 4812009877 Cover 4812007101 Fold away step r.h. 4812007102 Fold away step l.h. 4812017476 Platform V5.1, fix, house 4812009800 Weather protection house cpl. 4812225610 Weather protecting shed 4812007166 Safety lock 4812225443 Pane frame 4812225592 Front pane 4812225606 Windows, l.h. 4812225607 Windows, r.h. 4812226117 Side window 4812227724 Safety lock 4812006426 Water tank 4812229165 Wiper system 4812225922 Ascent VB cpl. 4812225923 Ascent middle 4812225926 Ascent l. h. 4812225928 Ascent r. h. 4812032785A Drive TIER 3 (2016) Engine 4812010983 Combined cooler / air filter 4812019655 Expansion tank 4812010984 Combined cooler 4812008735 Combined cooler 4812028928A Fuel tank 4812237353 Fuel tank 4812225145 Fuel tank D977436121 Ground strap 4812030294 Attaching parts 4812030230 Muffler 4812030290 Fuel system 4812046937A Engine support 4812037845 End pipe / rotary feedthrough 4812037585 Joint rod Service parts 4812009667 Cable W12 4812023352 Oil drain 4812039759 Gr.08 Split gear 4812038966 Split gear 4812009405 Split gear 4812009002 Motor coupling 4812037689 Gear oil drain Gr.08 Split gear box 4812026136 Pump 4812026139 Pump 4812043032 Track group (2016) 4812043006A Track group, short, r.h. 4812043053 Track roller 4812043052 Track roller 4812042985 Track drive 4812027192 Drive gear box 4812035018 Drive gear box 4812043360 Track chain 4812043007A Track group, short, l.h. 4812043312 Track group support 4812016242 Conveyor 4812201317 Conveyor drive 4812027439 Conveyor motor 4812026816 Conveyor turn 4812016243 Conveyor limit switch conv. cpl. 4812014274 Conveyor limit switch conv. l.h. 4812236095 Conveyor limit switch conv., l.h. 4812014283 Conveyor limit switch conv. r.h. 4812236096 Conveyor limit switch conv., r.h. D635060800A Chain guide 4812233025 Auger O380mm, 2,50m 4812233020 Auger, basic width 380 4812232097 Mounting parts 4812045075 Auger gear 4812232996 Auger box 4812026736 Outer support 4812016497 Auger support 4812233029 Auger O380mm, 3,14m 4812047161 Extension part f. auger O380mm 4812031788 Auger O380mm, 3,14m 4720000140 Auger extension, l.h. L:320mm 4812028794 Material tunnel, cpl. L:320mm 4720000816 Auger extension, r.h. L:320mm 4812233033 Auger O380mm, 3.78m 4812047189 Extension part f. auger O380mm 4812032182 Auger O380mm, 3,78m 4812028792 Material tunnel, cpl. L:640mm 4720000137 Auger shaft extension assy. 640 mm r.h./rts. 4720000818 Auger shaft extension assy. 640 mm l.h./lks. 4812031805 End support, cpl. D439082200 Screw conveyor, end bearing 4812030868 Additional Extension parts 4720000816 Auger shaft extension assy. 320 mm r.h./rts 4720000140 Auger shaft extension assy. 320 mm l.h./lks. 4812233037 Auger O380mm, 4.42m 4812047192 Extension part f. auger O380mm 4812032184 Auger O380mm, 4,42m 4812233041 Auger O380mm, 5.06m 4812047195 Extension part f. auger O380mm 4812032187 Auger O380mm, 5,06m 4812030927 Material tunnel, cpl. L:960mm D439082200 End support 4720000138 Auger extension, l.h. L:960mm 4720000139 Auger extension, r.h. L:960mm 4812030869 Additional Extension parts 4720000137 Auger extension, r.h. L:640mm 4720000818 Auger extension, l.h. L:640mm 4812233045 Auger O380mm, 5.70m 4812047198 Extension part f. auger O380mm 4812032190 Auger O380mm, 5,70m 4812233049 Auger O380mm, 6.34m 4812047201 Extension part f. auger O380mm 4812032193 Auger O380mm, 6,34m 4720000138 Auger shaft extension assy. 960 mm l.h./lks. 4720000139 Auger shaft extension assy. 960 mm r.h./rts. 4812028782 Strut material duct, l.h. L:960mm 4812028787 Strut material duct, r.h. L:960mm 4812032195 Auger wing O380mm, l.h. 4738000980 Auger wing, l.h. 4812032196 Auger wing O380mm, r.h. 4738000981 Auger wing, r.h. 4812031804 Outer support D438081200 Auger bearing 4812029259 Brace 4812028882 Cross struts 4812201937 Cross struts 4812028789 Strut material duct L:960mm 4812030870 additional Extension parts 4812233054 Auger O380mm, 6.98m 4812047206 Extension part f. auger O380mm 4812032197 Auger O380mm, 6,98m 4812032496 Additional Extension parts 4812233059 Auger O380mm, 7.62m 4812047210 Extension part f. auger O380mm 4812031789 Auger O380mm, 7,62m 4812007665 Hydraulic (2016) 4812007666 Hydrl. drive 4812026522 Manual pump 4812007666A Hydrl. drive 4812015999 Brake valve 4812024410 Brake valve 4812012680 Hydraulic, auger 4812010000 Flow control valve 4812012685 Hydraulic, tamper/vibration 4812008585 Directional spool valve 4812012682 Hydraulic, conveyor 4812011298 Pressure relief valve 4812008584 Directional spool valve 4812010974 Connecting plate 4812010925 Connecting plate 4812007670 Work hydraulic 4812026615 Control block 4812044338 Filter 4812007670A Work hydraulic 4812044338 Filter 4812008131 Control block 4812010615 Control block 4812010603 Control block 4812010598 Control block 4812010592 Control block 4812010588 Control block 4812007681 Hydraulic, fan 4812007672 Hydraulic tank, collector 4812028135 Return suction filter 4812028192 Hydraulic tank, cpl. 4812028192A Hydraulic tank, cpl. 4812225757 Hydraulic tank, cpl. 4812225231 Hydraulic tank 4812009435 Return suction filter 4812035052 Ganged valve support 4812035032A Hose package screed 616 / 617 4812036460 Screed in / out 4812035034A Tamper / Vibration 4812016677A Electric 4812028947 Electric 4812016643A Operator desk 4812016642 Operator desk 4812028134 Mainboard 4812005859 Wiring 4812201355 Cable W1.1 4812201356 Cable W1.2 4812029590 Cable W5 4812029594 Cable W8 4812029595 Cable W9 4812029596 Cable W10 4812031250 Cable harness W15 4812031268 Cable harness W16 4812031251 Cable harness W17 4812009075 Cable harness W19 4812201348 Cable W2.1 4812201349 Cable W2.2 4812036435 Cable harness W13 4812011121 Cable W3 4812011127 Cable W4 4812011128 Cable W6 4812011129 Cable W7 4812014593 Steering unit 4812009096 Junction box 4812016227 Remote control 4812018043 Remote control 4812016231 El. Remote control 4812016220 Housing 4812019165 Vandalism protection 4812019971 Data storage device 4812038654 Without fume absorbing system 4812038583 Without fume absorbing system 4812028730 Maintenance lid 4812011195 Maintenance lid 4812028733 Cover 4812226413A Indicator thickness, top (from s/n FG001744, 1749, 1751 ff.) 4812009465 Drivers seat Standard 4812009466 Drivers seat, cpl. 4812017780 Adjustment, mech. 4812017778 Ratchet 4812041024 Material chute 4812043329 Track cleaner, cpl. 4812043340 Track cleaner 4812043349 Locking laver 4812035023 Spot light for auger 4812028823 Spot light 4812016484 Spot light 4812012460 Rotaflare light 4812012455 Electrik rotaflare light 4812012450 Slip-on pipe 4812011482 Holder for rotaflare light 4812040056 Fire extinguisher 4812227323 Emulsion spray system (Valid for 0G001204, 1411, 1413, ff) 4812227321 Tank with pump 4812227350 Hose package 4812010335 El. option 4812227324 Emulsion spray system (Valid for 0G001378, 1404, 1405, ff) 4812232523 Hose reel 4812227339 Hose reel 4812227347 Hose 4812034869 Gloria spraying device 4812007784 First-aid kit 4812002731 First-aid kit 4812030771 Auxiliary weight 4812228144 Cover 4812042806 Gravel field kit 4812042760 Conveyor chain 4812042829 Gusset plate 4812042848 Bulk material flap 4812007491 Oil drain hydr. tank 4812008725 Tropical kit 4812234614 Engine clutch 4812010209 Insulating board 4812226655 Door, l.h. 4812009263 Diesel cooler cpl. 4812009222 Diesel cooler 4812016354 Conversion kit 4812009244 Tools and accessories 4812017030 GPS installation 4812013038 GPS module 4812016440 Cable W63 4812200776 TruckAssist 4812024916 El. handheld 4812023568 Cable W85 4812004013 Moba gradline 2+1 4812004014 Moba gradline 1+1 4812038488 Leveling 4812019221 Add-on kit D900624870 Tool box D900624801 Altitude control D900624831 Altitude control D900624835 Handset D900624754 Inclination regulator 4720000701 Wire tensioner cpl. 4812004016A MOBA MATIC 1+1 4812004015 MOBA MATIC 2+1 4812041998 Big Ski 13 m cpl. D830158000 Electric parts big ski 4812041925 Big Ski 13 m 4812038560 Side arm support 4812004304 Side arm support 4812042040 Big Ski 9 m cpl. 4812042035 Big Ski 9 m D830031300 Trailing ski, 6m 4700688225 Trailing ski, 6m 4700691720 Mounting parts D830031400 Trailing ski, 9m 4700688226 Trailing ski, 9m Key 4812035048 Tools and accessories 4812009821 Tools and accessories 4812011157 Decals tracked paver F 4812011156 Decals tracked paver 4812237875 Symbol F2500C 4812215218 Symbol F2500C 4812202687 Sticker, roof-high Ultrasonic thickness guage Tension tester Frequency tension tester Infrared thermometer Test adapter Welding protection Color Dynapac Dismantling tool (big pins) Dismantling tool (smal pins) Service tool bodas Magnet tester Digital pressure gauge kit Frequency and amplitude meter

1

4

4

4

4

5

10

11

13

14

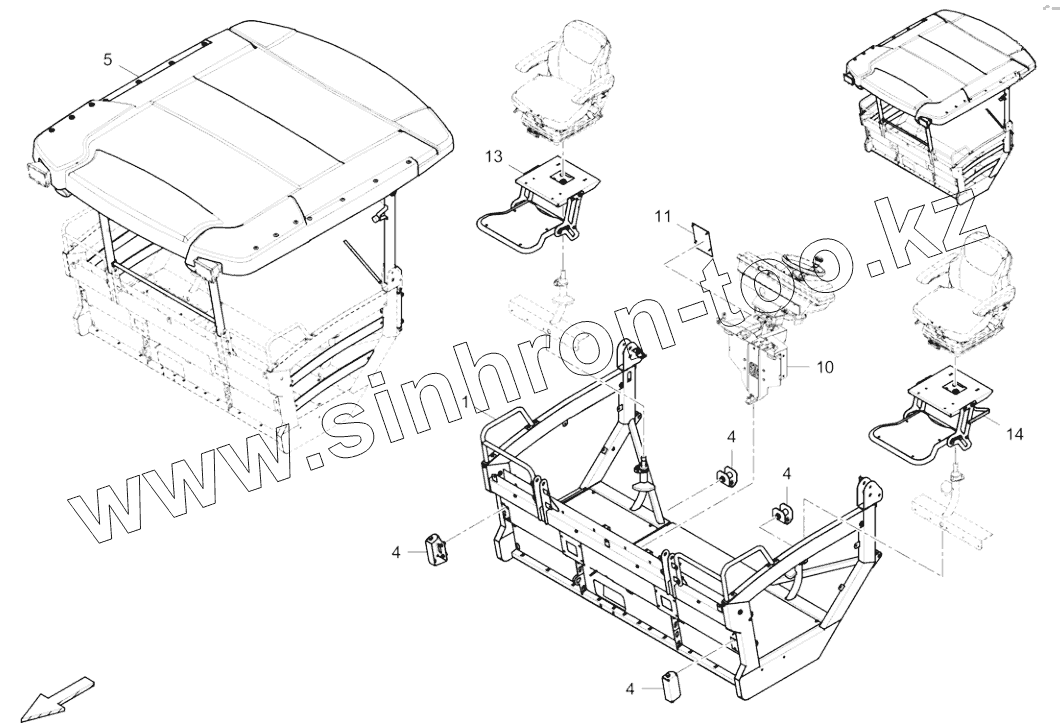

Позиция на иллюстрации	Заводской номер детали		Название детали
1	4812017298		Platform
4	4812005104		Holding device
5	4812226122		Roof
10	4812017300		Operator board
11	4812009877		Cover
13	4812007101		Fold away step r.h.
14	4812007102		Fold away step l.h.
