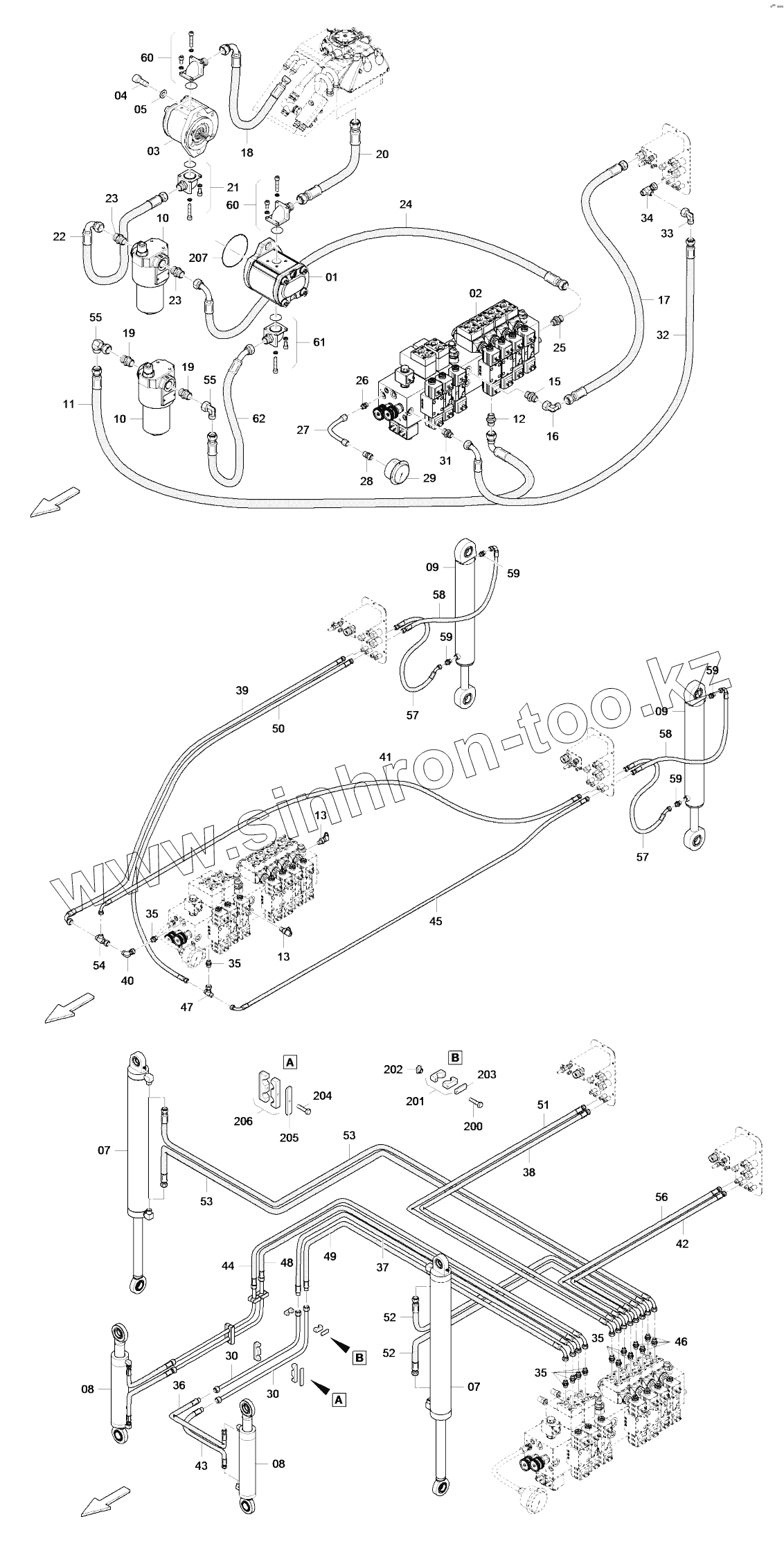

Каталог запасных частей к технике: DYNAPAC F2500C. 4812007670 Work hydraulic

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
7
7
8
8
9
9
10
10
11
12
13
13
15
16
17
18
19
19
20
21
22
23
23
24
25
26
27
28
29
30
30
31
32
33
34
35
35
35
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
52
53
53
54
55
55
56
57
57
58
58
59
59
59
59
60
60
61
62
200
201
202
203
204
205
206
207
Позиция на иллюстрации Заводской номер детали Название детали
1 4812038240 Pump
2 4812026615 Control block
3 4812036352 Pump
3.01 4812039748 Seal ring
4 0211136303 Hex. sock. screw
5 0301234400 Plain washer
7 4812007673 Levelling cylinder
8 4812029449 Hydraulic cylinder
9 4812026428 Hydraulic cylinder
10 4812044338 Filter
11 4812032597 Hose
12 D961935210 Male connector
13 D961772668 Test point
15 4812033602 Male connector
16 D961917012 Elbow socket
17 4812041518 Hose
18 4812032574 Hose
19 D961935110 Stud
20 4812032572 Hose
21 D961371072 Screwing
21.01 D932208067 O-ring
21.02 4749900080 Shake-proof washer
21.03 D937930224 Screw
21.04 D937930228 Screw
22 4812006980 Hose
23 D961935109 Male connector
24 4812032587 Hose
25 D961932096 Male connector
26 D961935206 Male connector
27 4812033237 Pipeline
27.01 4812046087 Pipe
27.02 D961102006 Nut
27.03 D961102056 Olive
28 D961131106 Pressure gauge union
29 D956201111 Pressure gauge
30 4812033094 Pipeline
31 D961935207 Male connector
32 4812032554 Hose
33 D961917007 Elbow socket
34 D961919007 Swivel nut branch tee
35 D961935229 Male connector
36 4812032583 Hose
37 4812032492 Hose
38 4812032490 Hose
39 4812032517 Hose
40 D961917008 Elbow socket
41 4812032519 Hose
42 4812032488 Hose
43 4812032582 Hose
44 4812032512 Hose
45 4812032522 Hose
46 D961935234 Male connector
47 D961918008 Swivel nut branch tee
48 4812032513 Hose
49 4812032493 Hose
50 4812032520 Hose
51 4812032491 Hose
52 4812014418 Hose
53 4812014419 Hose
54 D961919008 Swivel nut branch tee
55 D961917010 Elbow socket
56 4812041689 Hose
57 4812034486 Hose
58 4812032558 Hose
59 D961935228 Male connector
60 D961371010 Screwing
60.01 D932318093 O-ring
60.02 4700927839 Screw
60.03 D937930224 Screw
60.04 4749900080 Shake-proof washer
61 D961371070 Screwing
62 4812032598 Hose
200 5730015168 Hexagon head screw
201 D934361011 Clamp
202 D930480100 Nut
203 4749300125 Cover plate
204 0147125112 Hex. head screw
205 4749300382 Cover plate
206 D934362030 Clamp
207 D932218258 O-ring
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
