Каталог запасных частей к технике: DYNAPAC Dynapac SD2550C (ч. 1). 4812027194 Drive gear box

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано CA1400 (2016) CA2500D (2016) CA2500D (2018) CA2500D-PD (2018) CA250D (2011) CA252D (2008) CA2800D (2017) CA3500D (2016) CA4000D (2017) CA4000D (2020) CA4600D (2019) CA5500D (2015) CA610PD (2014) CA6500 (2018) CC1000 (2019) CC1100CC (2015) CC1200C Plus (2015) CC1200C VI (2018) CC1200CC (2018) CC125 (2015) CC1250 (2015) CC1300 (2018) CC1300C (2015) CC1300C (2016) CC2200 (2018) CC2200 (2020) CC2300C (2018) CC3300 (2018) CC4000 VI (2018) CC4200C VI (2020) CC5200C (2018) CC6200 VI (2020) CC800 (2019) CC900 (2018) CC900S (2018) CG2300 (2018) CP142 (2015) CP275 (2014) Dynapac CA1500 (2017) Dynapac CA2500 (2012) Dynapac CA302D (2008) Dynapac CA302D (2010) Dynapac CA5000D (2017) Dynapac CC142 (2009) Dynapac CC2200C (2015) Dynapac CC224HF (2012) Dynapac CC322 (2008) Dynapac CC422 (2010) Dynapac CC5200 (2014) Dynapac CC5200 (2017) Dynapac CC5200 (2017) Dynapac CC5200 VI (2017) Dynapac CC800 (2013) Dynapac CC800 (2014) Dynapac F1200C/CS (2018) Dynapac F1200CS/CS (2018) Dynapac F1800C (2018) Dynapac F181C (2010) Dynapac PL2000LS (2010) Dynapac PL2000LS (2010) Dynapac PL2000S (2010) Dynapac PL2000S (2010) Dynapac SCC1300 (2014) Dynapac SD2500C (ч. 1) (2018) Dynapac SD2500C (ч. 2) (2018) Dynapac SD2550C (ч. 1) (2018) Dynapac SD2550C (ч. 2) (2018) F2500C (2018) SD2550CS (2015)

Схема > Не выбрано Wear part and Inspection kits TIER 3 4812027733 Wear part kit auger wing O430mm 4812018439 Wear part kit hopper rubber, standard 4812018438 Wear part kit hopper rubber, front hopper flap 4812028516 Wear part kit conveyor chain 4812035553 Wear part kit reversing roller 4812035552 Wear part kit conveyor drive 4812016661 Wear part kit conveyor plates 4812235981 Wear part kit conveyor guide plates 4812035551 Wear part kit rubber plates 4700691229 Service kit 500 h TIER 3 4812043983 Service kit 500 h Plus TIER 3 4812046969 Service kit 1000 h TIER 3, stage 2 4812023851 Service kit 1000 h Plus TIER 3, stage 2 4812023923 Filter kit 1000h Lubricants and operating substances T3 Wear part and Inspection kits TIER 4i 4812012378 Service kit 500 h TIER 4i 4812012382 Service kit 500 h Plus TIER 4i 4812012384 Service kit 1000 h TIER 4i, stage 2 4812023886 Service kit 1000 h Plus TIER 4i, stage 2 4812023925 Filter kit 1000h Lubricants and operating substances T4i Wear part and Inspection kits TIER 4i 4812012939 Service kit 500 h TIER 4i 4812023854 Service kit 500 h Plus TIER 4i 4812012936 Service kit 1000 h TIER 4i, stage 2 4812023864 Service kit 1000 h Plus TIER 4i, stage 2 4812023926 Filter kit 1000h Lubricants and operating substances T4i 4812016238 Main frame 4812028721 Side arm guiding 4812231639 Splash guard 4812036083 Steering guide 4812232118 Exte 4812027553A Gr.06 Side screed arms, hydr. locked 4812029165 Side screed arm, l.h. 4812232214 Side arm guiding 4720000097 Side arm guiding 4812029197 Side screed arm, r.h. 4812029191 Locking, hydraulic 4812027609 Hydraulic 4812033247 Control block 4812030492A Gr.03 Push roller, hydraulic 4812046568 Pillow block 4812027642 Hydraulic, push roller 4812004491C Covering, isolated 4812225668 Bulk head 4812225657 Air guide, rear 4812225681 Support plate 4812225682 Retainer 4812225689 Cover 4812233556 Covering center part, r.h. 4812009008 Isolation 4812226380 Retainer, l.h. 4812226135 Retainer, r.h. 4812226900 Hood support 4812225685 Hood support 4812226906 Intermediate section 4812225631 Intermediate section 4812226899 Air guide, r.h. 4812034771 Air guide, r.h. 4812226902 Air guide, l.h. 4812225640 Air guide, l.h. 4812225708 Door, l.h. 4812226336 Door, l.h Support rod 4812225725 Door, r. h. 4812226905 Iso- hood, r.h. 4812225715 Hood, r.h. 4812226907 Iso- hood, l.h. 4812225717 Hood, l.h. 4812226901 Covering center part, l.h. 4812225667 Covering center part, l.h. 4812226463 Disc frame 4812044596 Disc frame 4812229124 Hopper 4812229110 Hopper, l.h. 4812231436 Locking 4812229127 Hopper, r.h. 4812028563 Bulk material flap 4812229081 Hopper 4812229119 Hopper, l.h. 4812229126 Hopper, r.h. 4812226029 Front hopper, middle 4812226004 Front hopper, l.h. 4812226018 Front hopper, r.h. 4812027636 Hydraulic, front flap 4812008403 Covering, isolated T4F (2016) 4812227088 Engine hood, l.h. T4F 4812227087 Hood T4F 4812227095 Engine hood r.h. T4F 4812227094 Engine hood r.h. 4812227092 Intermediate section T4F 4812227091 Intermediate section 4812200656 Bulk head 4812228154 Hood support 4812008405 Carrier 4812226904 Cover, r.h. 4812226903 Cover, l.h. 4812017477 Platform V5.1, movable, roof 4812017298 Platform 4812017444 Platform 4812011095 Harness W14 4812227769 Bottom plate, middle 4812005148 Base plate 4812225524 Crash protection, r.h. 4812225523 Crash protection, l.h. 4812006340 Sheet tub 4812009877 Cover 4812007101 Fold away step r.h. 4812009765A Cover 4812226815 Cover, l.h. 4812225707 Cover, r.h. 4812007102 Fold away step l.h. 4812008979 Guide platform 4812008980 Retainer 4812008045 Guide 4812008054 Guide pipe 4812008046 Guide profile l.h. 4812008047 Guide profile r.h. 4812006436 Guide 4812047665 Security rail 4812226122 Roof 4812225528 Roof frame rear 4812225474 Roof frame font 4812225624 GRP - roof frame 4812005850 Crash protection 4812226856 Crash protection front 4812227773 Roof hydraulic 4812043525 Hydr. roof adjustment 4812027610 Hydraulic, operation platform 4812017300 Operator board 4812227100 Clamping lever 4812228437 Telescopic pipe set 4812005193 Console 4812007259 Stop bolt 4812017478 Platform V5.1, movable, house 4812009800 Weather protection house cpl. 4812225610 Weather protecting shed 4812007166 Safety lock 4812225443 Pane frame 4812225592 Front pane 4812225606 Windows, l.h. 4812225607 Windows, r.h. 4812226117 Side window 4812227724 Safety lock 4812006426 Water tank 4812229165 Wiper system 4812019276 Platform, V5.1, moveable, house 4812018369 Weather protection house cpl. 4812018363 Umbrella roof 4812018364 GFK-roof frame 4812017852 Weather roof 4812229224 Locking 4812225922 Ascent VB cpl. 4812225923 Ascent middle 4812225926 Ascent l. h. 4812225928 Ascent r. h. 4812230390 Ascent 4812230307 Ascent r.h. 4812226942 Ascension f. R-Screed 4812226950 Ascent, middle 4812230383 Ascent 4812013345 Drive TIER 3 4812013343 Engine 4812010983 Combined cooler / air filter 4812019655 Expansion tank 4812010984 Combined cooler 4812008735 Combined cooler 4812028928A Fuel tank 4812237353 Fuel tank 4812225145 Fuel tank D977436121 Ground strap 4812030294 Attaching parts 4812030230 Muffler 4812030290 Fuel system 4812046937A Engine support 4812037845 End pipe / rotary feedthrough 4812037585 Joint rod 4812009667 Cable W12 Service parts 4812023352 Oil drain 4812039759 Gr.08 Split gear 4812038966 Split gear 4812009405 Split gear 4812009002 Motor coupling 4812037689 Gear oil drain Gr.08 Split gear box 4812026128 Pump 4812031533 Adjustable pump 4812026146 Pump 4812026131 Pump 4812018516 Pump 4812032787A Drive TIER 4i (2016) 4812026135 Engine 4812046061 Combined cooler / air filter 4812018770 Retainer, air filter 4812233891 Cover 4812038352 Combined cooler 4812008985 Attaching parts 4812030356 Muffler 4812041871 Particle filter 4812032010 Fuel system 4812046937 Engine support 4812033156 Electric parts Tier 4 4812005953 Cable W12 4812009668 Cable W12 4812046340 Electric / heating 4812009670 Cable W50 Service parts 4812011981 Gr.07 Drive TIER 4f 4812012388 Engine 4812007376 Combined cooler / air filter 4812012121 Expansion tank 4812012430 Air filter cpl. 4812227713 Exhaust system 4812012859 Aftertreatment kit 4812228134 DEF System 4812018047 Supply module 4812011244 DEF Tank 4812231234 Cooler hose 4812231235 Cooler hose 4812013884 Exhaust pipe, T4f 4812008627 Electric parts Tier 4F 4812009408 Cable W61 4812009398 Terminal box 4812009476 Terminal box 4812008626 Cable W62 4812012397 Service Parts 4812043031A Track group 4812043024A Track group, long, r.h. 4812043052 Track roller 4812043053 Track roller 4812043886 Track drive 4812027194 Drive gear box 4812035017 Drive gear box 4812043901 Track chain 4812043025A Track group, long, l.h. 4812044050 Track group support 4812043329 Track cleaner, cpl. 4812043340 Track cleaner 4812043349 Locking laver 4812229373 Conveyor 4812201317 Conveyor drive 4812031231 Conveyor motor 4812026817 Conveyor turn 4812026815 Tensioner 4812016245 Conveyor limit switch PLC cpl. 4812014298 Conveyor limit switch PLC, l.h. 4812024837 Conveyor limit switch PLC, l.h. 4812014299 Conveyor limit switch PLC, r.h. 4812024838 Conveyor limit switch PLC, r.h. D635060800A Chain guide 4812233027 Auger O430mm, 2.50m 4812233022 Auger, basic width 430 4812232996 Auger box 4812026736 Outer support 4812016497 Auger support 4812232097 Mounting parts 4812032831 Protection cover 4812045075 Auger gear 4812233031 Auger O430mm, 3.14m 4812047162 Extension part f. auger O430mm 4812031953 Auger O430mm, 3,14m 4812030995 Auger extension, l.h. L: 320mm 4812028794 Material tunnel, cpl. L:320mm 4812030997 Auger extension, r.h. L: 320mm 4812032804 Protection cover L:320 mm 4812233035 Auger O430mm, 3.78m 4812047190 Extension part f. auger O430mm 4812032281 Auger O430mm, 3,78m 4812028792 Material tunnel, cpl. L:640mm 4812030998 Auger extension, l.h. L: 640mm 4812031000 Auger extension, r.h. L: 640mm 4812032289 End support, plate D439082200 End support 4812032803 Protection cover L:640mm 4812032499 additional Extension parts 4812233039 Auger O430mm, 4.42m 4812047193 Extension part f. auger O430mm 4812032357 Auger O430mm, 4,42m 4812233043 Auger O430mm, 5.06m 4812047196 Extension part f. auger O430mm 4812032363 Auger O430mm, 5,06m 4812030927 Material tunnel, cpl. L:960mm 4812031011 Auger extension, r.h. L: 960mm 4812031010 Auger extension, l.h. L: 960mm 4812032802 Protection cover L:960 mm 4812032500 additional Extension parts 4812233047 Auger O430mm, 5.70m 4812047199 Extension part f. auger O430mm 4812032383 Auger O430mm, 5,70m 4812233052 Auger O430mm, 6.34m 4812047204 Extension part f. auger O430mm 4812032399 Auger O430mm, 6,34m 4812028782 Strut material duct, l.h. L:960mm 4812028787 Strut material duct, r.h. L:960mm 4812031804 Outer support D438081200 End support 4812028789 Strut material duct L:960mm 4812032393 Auger wing O430mm, l.h. 4812032395 Auger wing O430mm, r.h. 4812029259 Brace 4812028882 Cross struts 4812201937 Cross struts 4812032504 additional Extension parts 4812233057 Auger O430mm, 6.98m 4812047208 Extension part f. auger O430mm 4812032410 Auger O430mm, 6,98m 4812032502 additional Extension parts 4812233062 Auger O430mm, 7.62m 4812047212 Extension part f. auger O430mm 4812032413 Auger O430mm, 7,62m 4812233067 Auger O430mm, 8.26m 4812047215 Extension part f. auger O430mm 4812032419 Auger O430mm, 8,26m 4812233070 Auger O430mm, 8.90m 4812047218 Extension part f. auger O430mm 4812032430 Auger O430mm, 8,90m 4812233072 Auger O430mm, 9.54m 4812047220 Extension part f. auger O430mm 4812032435 Auger O430mm, 9,54m 4812233074 Auger O430mm, 10.18m 4812047222 Extension part f. auger O430mm 4812032437 Auger O430mm, 10,18m 4812032472 Brace package wide 4812233076 Auger O430mm, 10.82m 4812047224 Extension part f. auger O430mm 4812032439 Auger O430mm, 10,82m

1

2

2.1

2.2

2.3

2.4

3

3

4

4

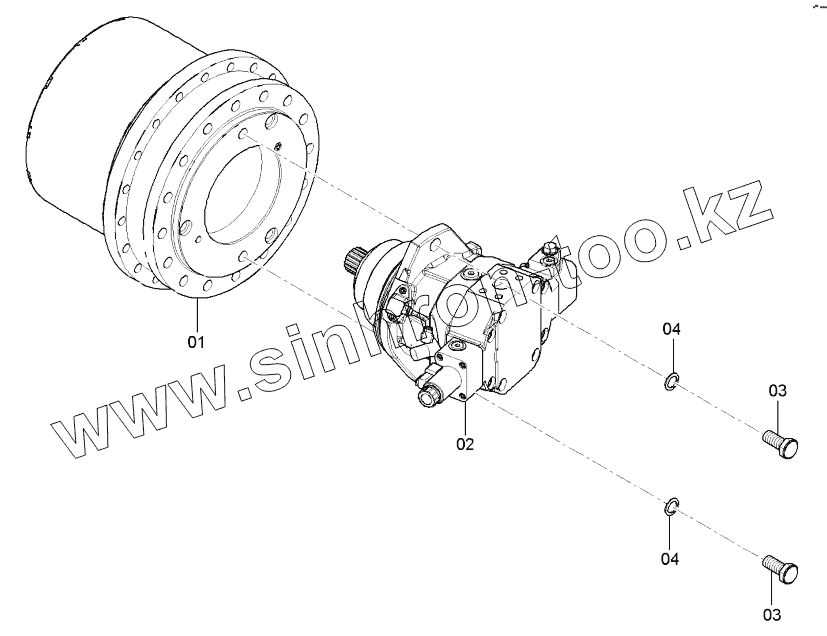

Позиция на иллюстрации	Заводской номер детали		Название детали
1	4812035017		Drive gear box
2	4812026519		Hydraulic motor
2.1	D967610542		Solenoid
2.2	4812019820		Revolution sensor
2.3	4812036336		Seal kit
2.4	4812031079		O-ring O ring
3	0147154903		Hexagon bolt
4	0333310044		Schnorr-lock washer

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
