5. 4812230338 Sensor holder

Каталог запасных частей к технике: DYNAPAC Dynapac SD2500C (ч. 2). 4812230338 Sensor holder

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано CA1400 (2016) CA2500D (2016) CA2500D (2018) CA2500D-PD (2018) CA250D (2011) CA252D (2008) CA2800D (2017) CA3500D (2016) CA4000D (2017) CA4000D (2020) CA4600D (2019) CA5500D (2015) CA610PD (2014) CA6500 (2018) CC1000 (2019) CC1100CC (2015) CC1200C Plus (2015) CC1200C VI (2018) CC1200CC (2018) CC125 (2015) CC1250 (2015) CC1300 (2018) CC1300C (2015) CC1300C (2016) CC2200 (2018) CC2200 (2020) CC2300C (2018) CC3300 (2018) CC4000 VI (2018) CC4200C VI (2020) CC5200C (2018) CC6200 VI (2020) CC800 (2019) CC900 (2018) CC900S (2018) CG2300 (2018) CP142 (2015) CP275 (2014) Dynapac CA1500 (2017) Dynapac CA2500 (2012) Dynapac CA302D (2008) Dynapac CA302D (2010) Dynapac CA5000D (2017) Dynapac CC142 (2009) Dynapac CC2200C (2015) Dynapac CC224HF (2012) Dynapac CC322 (2008) Dynapac CC422 (2010) Dynapac CC5200 (2014) Dynapac CC5200 (2017) Dynapac CC5200 (2017) Dynapac CC5200 VI (2017) Dynapac CC800 (2013) Dynapac CC800 (2014) Dynapac F1200C/CS (2018) Dynapac F1200CS/CS (2018) Dynapac F1800C (2018) Dynapac F181C (2010) Dynapac PL2000LS (2010) Dynapac PL2000LS (2010) Dynapac PL2000S (2010) Dynapac PL2000S (2010) Dynapac SCC1300 (2014) Dynapac SD2500C (ч. 1) (2018) Dynapac SD2500C (ч. 2) (2018) Dynapac SD2550C (ч. 1) (2018) Dynapac SD2550C (ч. 2) (2018) F2500C (2018) SD2550CS (2015)

Схема > Не выбрано 4812007675 Hydraulic (2016) 4812027595 Hydraulic, drive system 4812026522 Manual pump 4812027595A Hydraulic, drive system 4812015999 Brakevalve 4812024410 Brakevalve 4812007677 Hydraulic, auger 4812007677A Hydraulic, auger 4812012681 Hydraulic, conveyor 4812010000 Flow control valve 4812010974 Connecting plate 4812010925 Connecting plate 4812012687 Hydraulic, tamper/vibration 4812012390 Hydrl. work hydraulic 4812009368 Control block 4812041949 Control block 4812010621 Control block 4812010617 Control block 4812010615 Control block 4812010592 Control block 4812010588 Control block 4812044676 Add on kit 4812007681 Hydraulic, fan 4812044338 Filter 4812007746 Hydraulic tank, collector 4812028192 Hydraulic tank, cpl. 4812028192A Hydraulic tank, cpl. 4812028135 Return suction filter 4812009435 Return suction filter 4812225757 Hydraulic tank, cpl. 4812225231 Hydraulic tank 4812035052 Ganged valve support 4812035032A Hose package screed 616 / 617 4812036460 Screed in / out 4812035034A Tamper / Vibration 4812037363A Hose package screed 616 / 617 4812037372 Hose package roof profile 616/617 4812007695 Hose package hydr. end plate 616/617 4812016191A Electronic installation 4812016192 Junction box 4812030191 Junction box 4812031400 Cable W23 4812016531 Harness W20 4812016219 Electric 4812016477A Control unit 4812016161 Control unit 4812016437 Harness W11 4812016676 Cable W73 4812012510 Add on kit hardlock 4812009474 Mounting set 4812012518 Add on kit hardlock 4812016455 Wiring 4812201348 Cable W2.1 4812201349 Cable W2.2 4812023316 Cable W80 4812023317 Cable W81 4812023318 Cable W82 4812201355 Cable W1.1 4812201356 Cable W1.2 4812011121 Cable W3 4812023314 Cable W3 4812011127 Cable W4 4812023315 Cable W4 4812029590 Cable W5 4812011128 Cable W6 4812011129 Cable W7 4812029594 Cable W8 4812029595 Cable W9 4812029596 Cable W10 4812029858 Cable harness W13 4812005977 Cable harness W14 4812029862 Cable harness W17 4812009129 Cable harness W19 4812029971 Cable harness W23 4812005976 Cable W25 4812005974 Cable W26 4812005865 Cable W11 4812030003 Cable W24 4812007165 Cable W27 4812016467 Cable W67 4812016472 Cable W68 4812016440 Cable W63 4812016490 Harness W15 4812016491 Harness W16 4812016478 Cable W70 4812016480 Cable W71 4812016459 Cable W66 4812014593 Steering unit 4812015926 Remote control, PLC 4812024563 Remote control 4812017990 Housing 4812019165 Vandalism protection 4812019971 Data storage device 4812006037 Fume control 4812045091 Blower 4812006393 Hydr. fume control 4812006393A Hydr. fume control 4812044916 Pressure reduction valve 4812038654 Without fume absorbing system 4812038583 Without fume absorbing system 4812028730 Maintenance lid 4812011195 Maintenance lid 4812028733 Cover 4812226413A Indicator thickness, top from s/n FG001744, 1749, 1751 ff. 4812232096 Indicator 4812014742 Pointer 4812035452 Drivers seat Grammer, beheizbar 4812030001 Seat heater 4812009465 Drivers seat Standard 4812009466 Drivers seat, cpl. 4812232939 Hydraulic auger lift 4812232962 Hydraulic auger lift 4812017374 Hydraulic auger lift, SETASSIST 4812232956 Hydraulic auger lift 4812031793 Auger limit switch ultrasonic 4812228334 Retainer 4812032431 Sonic Sensor Auger 4812228342 Bottle holder 4812041024 Material chute 4812015637 Bio Hydr. oil 4812015721 Hydrl. partial flow filter D964013553 Partial flow filter 4812045427 Material tunnel installation kit 4812045416 Material tunnel 230 4812045421 Protection cover 4812006381 Spot light LED 4812006383 Spot light 4812006382 Mounting parts 4812006378 Lamp holder 4812035023 Spot light for auger 4812028823 Spot light 4812033051 Option engine room lighting 4812029937 Engine room lighting, electric 4812019225 Cable W24 4812032841 Lamp interior 4812032889 Engine room lighting 4812023396 Option engine room lighting 4812023397 Engine room lighting, electric 4812023391 Cable W24 4812016484 Spot light 4812006942 Halogen spot light 4812006904 Halogen spot light 4812006905 Halogen spot light 4812036596 Cable cpl. 4812006986 Lamp holder 4812201825 Shining balloon 4812012447 Rotaflare light 4812012457 Rotaflare light 4812012450 Slip-on pipe 4812011482 Holder for rotaflare light 4812037881 Central lubrication 4812037776 Pump 4812037777 Pump 4812037782 Kit central lubrication f. auger 4812030073 El. option central lubrication 4812040056 Fire extinguisher 4812015638 Diesel pump 4812029968 Refueling equipment 4812227323 Emulsion spray system Valid for 0G001204, 1411, 1413, ff 4812227321 Tank with pump 4812227350 Hose package 4812010335 El. option 4812227324 Emulsion spray system Valid for 0G001378, 1404, 1405, ff 4812232523 Hose reel 4812227339 Hose reel 4812227347 Hose 4812034869 Gloria spraying device 4812029934 Back-up alarm 4812230380 Bucket 4812230243 Bucket 4812230359 Door 4812230360 Connecting plate 4812230338 Sensor holder 4812230340 Support holder 4812230361 Exhaust system 4812016013 Stripper 4812202866 Decals, MH2500 4812231291 Decals 4812032974 Socket, 230V 4812008671 12V installation 4812007784 First-aid kit 4812002731 First-aid kit 4812030771 Auxiliary weight 4812027605 Crown adjustment 4812046393 Control block 4812017406 Camera system 4812017407 El. option 4812006748 Retainer 4812007883 Mounting parts 4812017018 TruckAssist Advansed 4812016485 Electric 4812018218 Housing 4812018226 Housing 4812228144 Cover 4812042806 Gravel field kit 4812042760 Conveyor chain 4812042829 Gusset plate 4812042848 Bulk material flap 4812007491 Oil drain hydr. tank 4812009244 Tools and accessories 4812007686 Hydraulic Hydr. end plate 4812010449 Control block 4812010752 Back up alarm flasher 4812010793 El. option 4812014275 Mirror 4812017027 Hardlock pro / Pavemanager 2 4812009717 Hardlock 4812018636 Steering control 10m 4812043252 Retainer 4812018638 Steering sensor 4812009163 Cable W53 4812018600 Mounting parts 4812017032 GPS installation advanced 4812013040 GPS module 4812018942 Tropical kit 4812018942 Tropical kit 4812234614 Engine clutch 4812226655 Door, l.h. 4812010209 Insulating board 4812009263 Diesel cooler cpl. 4812009222 Diesel cooler 4812018948 Option pave ir ready 4812018734 Harness W76 4812200833 Temperature sensor 4812237431 Generator set 25KVA 4812015882 Universal joint protection 4812202397 Electric, heating 4812202381 Control box 4812229618 Vandalism protection 4812004015 MOBA MATIC 2+1 4812004016A MOBA MATIC 1+1 4812038489 Leveling D900626011 Slope sensor 4812038541 Sonic-Ski 4812038617 Digirotary Kit 4812011781 Box MOBA-Matic 4720000701 Wire tensioner cpl. 4812038616 Ultrasonic sensor 4812038602 Sensor 4812041999 Big Ski 13 m cpl. 4812041925 Big Ski 13 m 4812038560 Side arm support 4812004304 Side arm support 4812038564 Electric parts big ski 4812042045 Big Ski 9 m cpl. 4812042035 Big Ski 9 m D830031300 Trailing ski, 6m 4700688225 Trailing ski, 6m 4700691720 Mounting parts D830031400 Trailing ski, 9m 4700688226 Trailing ski, 9m Key 4812035048 Tools and accessories 4812009821 Tools and accessories 4812202864 Symbol SD2500C 4812202845 Symbol SD2500C, THERMO 4812202892 Symbol SD2500C 4812202891 Symbol SD2500C, THERMO 4812013893 Decals tracked paver 4812013895 Decals tracked paver F 4812010458 Decals tracked paver 4812010459 Decals tracked paver F 4812202687 Sticker, roof-high Ultrasonic thickness guage Tension tester Frequency tension tester Infrared thermometer Test adapter Welding protection Color Dynapac Dismantling tool (big pins) Dismantling tool (smal pins) Service tool bodas Magnet tester Digital pressure gauge kit Frequency and amplitude meter

1

2

3

4

4

5

6

7

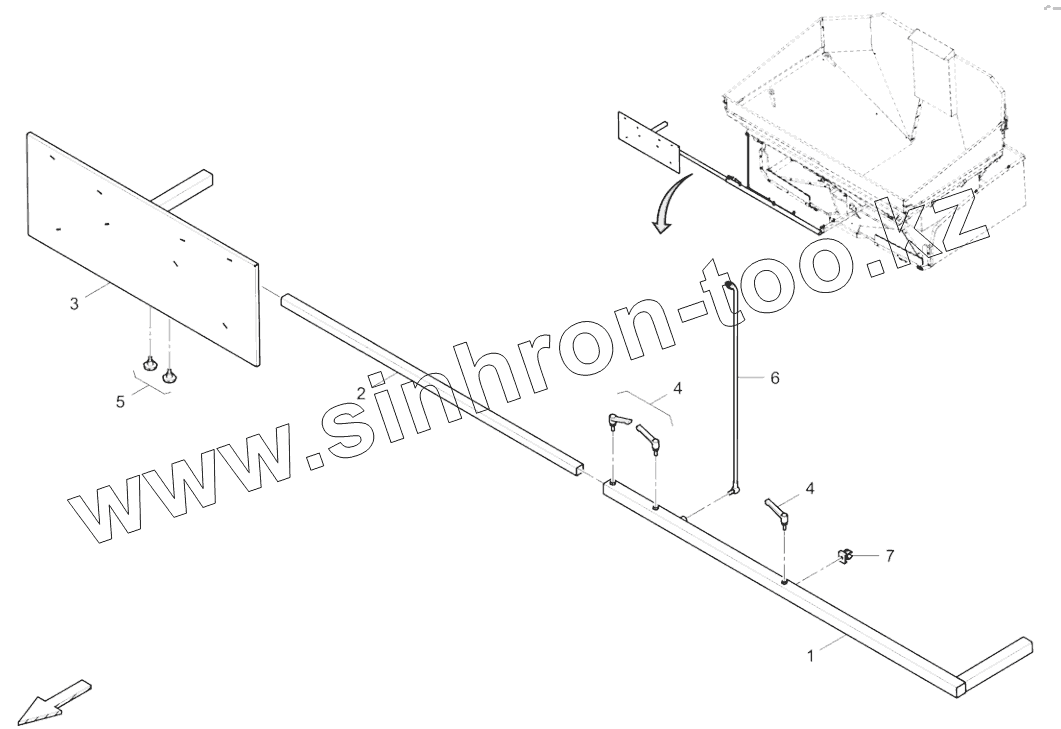

Позиция на иллюстрации	Заводской номер детали		Название детали
1	4812230330		Mounting tube
2	4812230332		Square tube
3	4812230337		Mounting plate
4	D930290321		Clamping lever
5	D930429158		Star grip screw
6	4812230340		Support holder
7	D953509712		Clip

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
