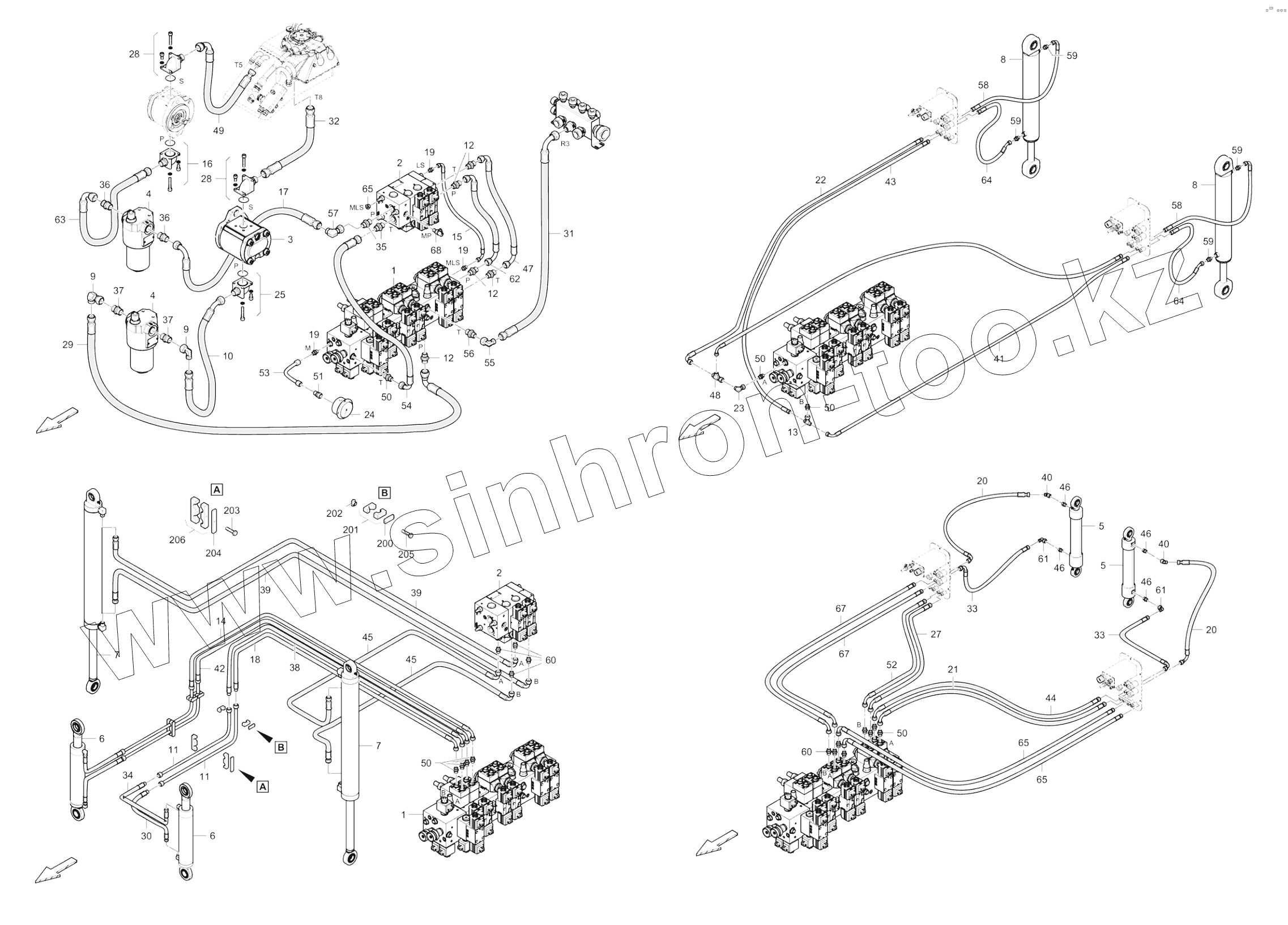

Каталог запасных частей к технике: DYNAPAC Dynapac SD2500C (ч. 2). 4812012390 Hydrl. work hydraulic

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
2
2
3
4
4
5
5
6
6
7
7
8
8
9
9
10
11
11
12
12
12
13
14
15
16
17
18
19
19
19
20
20
21
22
23
24
25
27
28
28
29
30
31
32
33
33
34
35
36
36
37
37
38
39
39
40
40
41
42
43
44
45
45
46
46
46
46
47
48
49
50
50
50
50
50
51
52
53
54
55
56
57
58
58
59
59
59
59
60
60
61
61
62
63
64
64
65
65
65
67
67
68
200
201
202
203
204
205
206
Позиция на иллюстрации Заводской номер детали Название детали
1 4812009368 Control block
2 4812041949 Control block
3 4812038239 Pump
4 4812044338 Filter
5 4812027542 Hydraulic cylinder
6 4812029449 Hydraulic cylinder
7 4812236246 Hydraulic cylinder
7.1 4812045931 Hydraulic cylinder with sensor
7.1.1 4812201100 Sensor
8 4812026428 Hydraulic cylinder
9 D961917010 Elbow socket
10 4812032598 Hose
11 4812033094 Pipeline
12 D961935210 Male connector
13 D961918008 Swivel nut branch tee
14 4812032492 Hose
15 4812032620 Hose
16 D961371072 Screwing
16.1 D937930224 Screw
16.2 0333310045 Schnorr-lock washer
16.3 D932208067 O-ring
16.4 0211125103 Hex sock. screw
17 4812032587 Hose
18 4812032513 Hose
19 D961935206 Male connector
20 4812006199 Hose
21 4812032490 Hose
22 4812032517 Hose
23 D961917008 Elbow socket
24 D956201111 Pressure gauge
25 D961371070 Screwing
25.1 D932208067 O-ring
25.2 D937930224 Screw
25.3 0211125203 Bolt
25.4 0333310045 Schnorr-lock washer
26 4812032519 Hose
27 4812032488 Hose
28 D961371010 Screwing
28.1 D932318093 O-ring
28.2 0211125403 Screw
28.3 D937930224 Screw
28.4 0333310045 Schnorr-lock washer
29 4812032597 Hose
30 4812032582 Hose
31 4812015563 Hose
32 4812032572 Hose
33 4812032714 Hose
34 4812032583 Hose
35 D961932096 Male connector
36 D961935109 Male connector
37 D961935110 Stud
38 4812032512 Hose
39 4812014419 Hose
40 D961355037 Swivel nut branch tee
41 4812032522 Hose
42 4812032493 Hose
43 4812032520 Hose
44 4812032491 Hose
45 4812014418 Hose
46 D961935106 Male connector
47 4812032576 Hose
48 D961919008 Swivel nut branch tee
49 4812032574 Hose
50 D961935229 Male connector
51 D961131106 Pressure gauge union
52 4812032489 Hose
53 4812033237 Pipeline
54 4812032635 Hose
55 D961917012 Elbow socket
56 4812033602 Male connector
57 D961355015 Elbow union
58 4812032558 Hose
59 D961935228 Male connector
60 D961935234 Male connector
61 D961917006 Elbow socket
62 4812006664 Hose
63 4812006980 Hose
64 4812007582 Hose
65 D961175206 Plug screw
66 4812032753 Hose
67 4812032716 Hose
68 D961772668 Test point
199 4812044676 Add on kit
200 4749300125 Cover plate
201 D934361011 Clamp
202 D930480100 Nut
203 0147125112 Hex. head screw
204 4749300382 Cover plate
205 5730015168 Hexagon head screw
206 D934362030 Clamp
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
