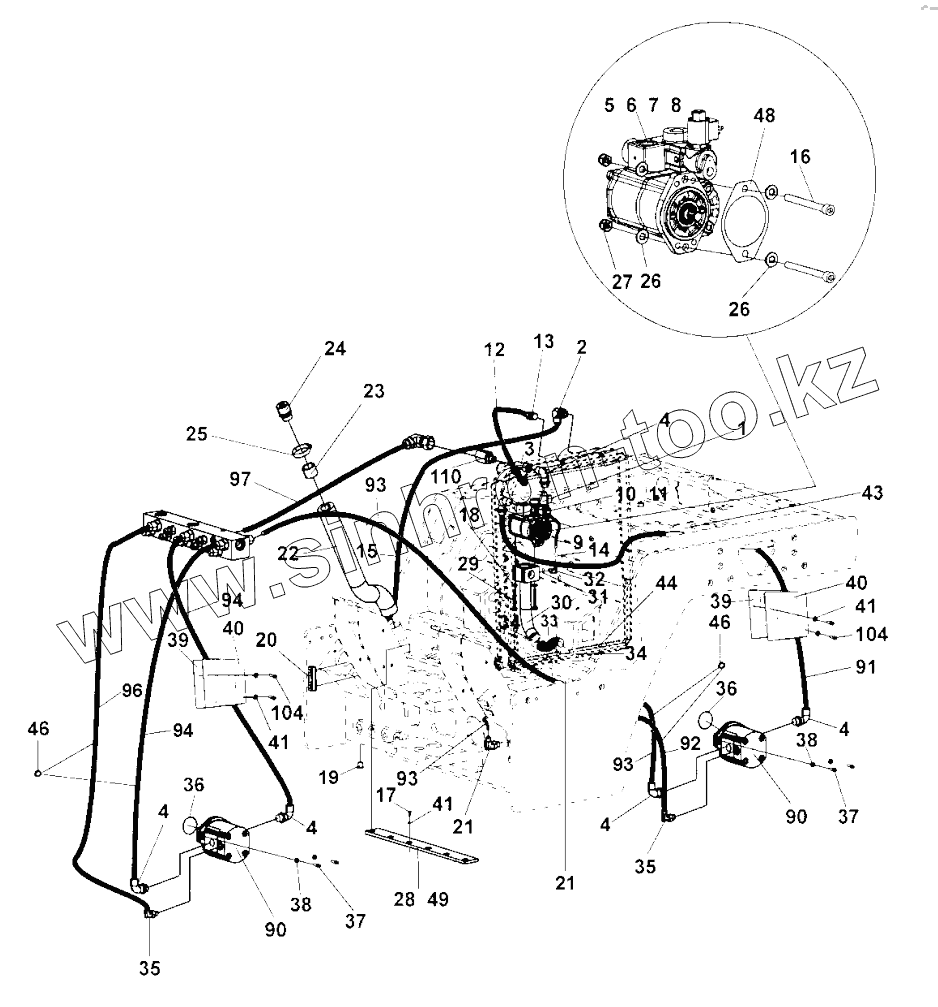

Каталог запасных частей к технике: DYNAPAC Dynapac SCC1300. Vibration system
1
1
1
1
2
3
4
4
4
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
21
22
23
24
25
26
26
27
28
29
30
31
32
33
34
35
35
36
36
37
37
38
38
39
39
40
40
41
41
41
43
44
46
46
48
49
90
90
90
91
92
93
93
93
94
94
96
97
104
104
110
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4812119251 | Hydraulic pump | |
| 1 | 4812112054 | Hydraulic pump | |
| 1 | 4812119251 | Hydraulic pump | |
| 1 | 4812112054 | Hydraulic pump | |
| 2 | 4700927459 | Adapter | |
| 3 | 4700334135 | Tee-connector | |
| 4 | 4700334238 | Elbow 90 o-ring | |
| 5 | 4700234390 | Connector | |
| 6 | 4700334524 | Connector | |
| 7 | D433830401 | Connector | |
| 8 | 4700910161 | Measuring nipple | |
| 9 | 4700386134 | Hydraulic hose | |
| 10 | 4700901692 | Screw | |
| 11 | 4700480124 | Washer | |
| 12 | 4700482306 | Hydraulic hose | |
| 13 | 4700334121 | Straight connector | |
| 14 | 4700923371 | Adapter | |
| 15 | 4811000383 | Hydraulic hose | |
| 16 | 4700500078 | Hex. screw | |
| 17 | 4700500019 | Hex. screw | |
| 18 | 4700904556 | Steel plain washer | |
| 19 | 4700232122 | Plug | |
| 20 | 4700989151 | Oil level glass | |
| 21 | 4700334235 | Elbow 90 | |
| 22 | 4700373478 | Rubber hose | |
| 23 | 4700357139 | Connector | |
| 24 | 4700357138 | Ventilating filter | |
| 25 | 4700313008 | Hose clamp | |
| 26 | 4700904230 | Washer | |
| 27 | 4700902287 | Nut | |
| 28 | 4700358486 | Rubber strip | |
| 29 | 4700500067 | Screw | |
| 30 | 4812113333 | Flange | |
| 31 | 4700160016 | O-ring | |
| 32 | 4700234341 | Elbow 45 | |
| 33 | 4811000372 | Hydraulic hose | |
| 34 | 4700902295 | Clamp | |
| 35 | 4700234481 | Connector | |
| 36 | 4700160031 | O-ring | |
| 37 | 4700508029 | Cylinder screw | |
| 38 | 4700904557 | Washer | |
| 39 | 4700371313 | Hose clamp | |
| 40 | 4700371314 | Hose clamp | |
| 41 | 4700904229 | Washer | |
| 43 | 4700902379 | Edge trim | |
| 44 | 4700902379 | Edge trim | |
| 46 | 4700313102 | Cable ties | |
| 48 | 4700379458 | Gasket | |
| 49 | 4700904901 | Tape | |
| 90 | 4700903431 | Seal kit | |
| 90 | 4700391271 | Hydraulic motor | |
| 91 | 4700482897 | Hydraulic hose | |
| 92 | 4700482838 | Hydraulic hose | |
| 93 | 4700483160 | Hydraulic hose | |
| 94 | 4700483161 | Hydraulic hose | |
| 96 | 4700482892 | Hydraulic hose | |
| 97 | 4700482525 | Hydraulic hose | |
| 99 | 4700334238 | Elbow 90 o-ring | |
| 100 | 4700234481 | Connector | |
| 101 | 4700371313 | Hose clamp | |
| 102 | 4700371314 | Hose clamp | |
| 104 | 4700500021 | Hex. screw | |
| 106 | 4700508029 | Cylinder screw | |
| 107 | 4700603018 | Washer | |
| 110 | 4700357543 | Valve | |
| 111 | 4700921119 | Pipe clamp | |
| 112 | 4700500053 | Hex. screw |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
