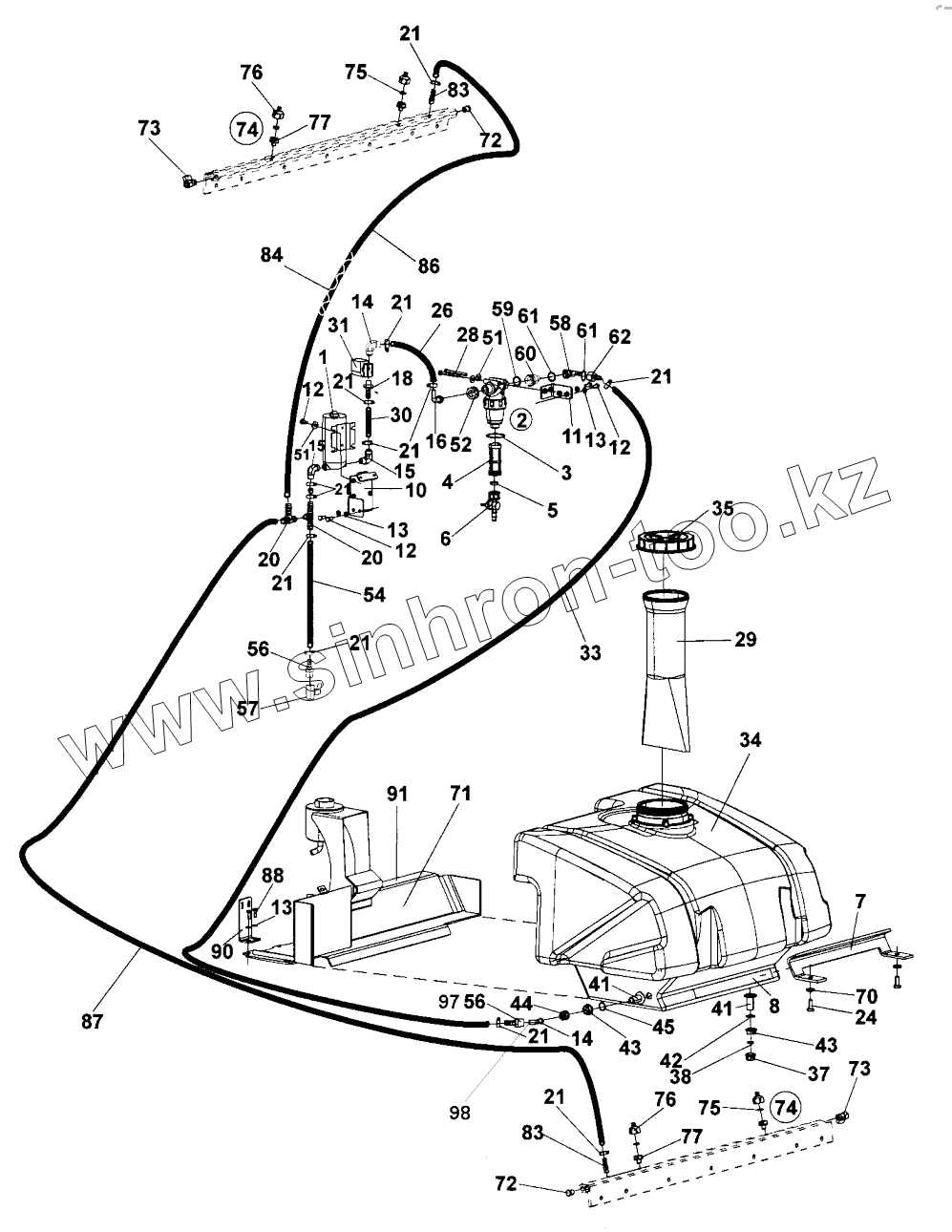

Каталог запасных частей к технике: DYNAPAC Dynapac SCC1300. Sprinkler system Up to 0A011344

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
10
11
12
12
12
13
13
13
14
14
15
15
16
18
20
20
21
21
21
21
21
21
21
21
21
21
24
26
28
29
30
31
33
34
35
37
38
41
41
42
43
43
44
45
51
51
52
54
56
56
57
58
59
60
61
61
62
70
71
72
72
73
73
74
74
75
75
76
76
77
77
83
83
84
86
87
88
90
91
97
98
Позиция на иллюстрации Заводской номер детали Название детали
WaterTank WaterTank Water tank
1 4812113822 Water pump
2 4812111325 Water filter
3 4700791959 O-ring
4 4700791949 Filter element
5 4700791568 Gasket
6 4700379009 Valve
7 4700357395 Holder plate
8 4700926911 Rubber strip
10 4812113066 Bracket
11 4812113067 Bracket
12 4700500053 Hex. screw
13 4700904229 Washer
14 4700901431 Hose connection
15 4700923734 Hose connection
16 4812111330 Hose connection
18 4700901432 Hose connection
20 4700923735 Hose connection
21 4700313002 Hose clamp
22 4700903478 Absorbent
24 4700500028 Screw
26 4812112074 Plastic hose
28 4700500190 Screw
29 4700358846 Strainer
30 4812112074 Plastic hose
31 4700287713 Solenoid valve
33 4812112074 Plastic hose
34 4812111967 Water tank, cpl
35 4700359003 Tank Cap
36 4700937053 Plug, cpl
37 4811000168 Cap
38 4700392229 Plane gasket
41 4700392230 Grommet
42 4700160219 O-ring
43 4700392232 Nut
44 4700392227 Swivel nut
45 4700792600 O-ring 70
51 4700904640 Washer
52 4700792779 Swivel nut
54 4812112074 Plastic hose
56 4700924544 Hose connection
57 4700925599 Ball valve
58 4812112831 Ball valve
59 4700160313 O-ring
60 4812111331 Reducer nipple
61 4700379753 Gasket
62 4812112451 Hose connection
70 4700904557 Washer
71 4812113575 Heat protection
72 4700791974 Plug threaded
73 4700233215 Ball valve
74 4700392011 Spraying nozzle, cpl
75 4700392509 Retainer, nozzle, strainer, yellow
76 4700392510 Gasket
77 4700392508 Housing
83 4700791977 Hose connection
84 4700901191 Protective hose
86 4812112074 Plastic hose
87 4812112074 Plastic hose
88 4700500020 Hex. screw
90 4812112994 Bracket
91 4812113781 Rubber strip
92 4700313041 Cable tie
93 4700791182 Nut
94 4700480852 O-ring 70
95 4700500022 Hex. screw
96 4700904640 Washer
97 4700393542 Hose connection
98 4700792600 O-ring 70
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
