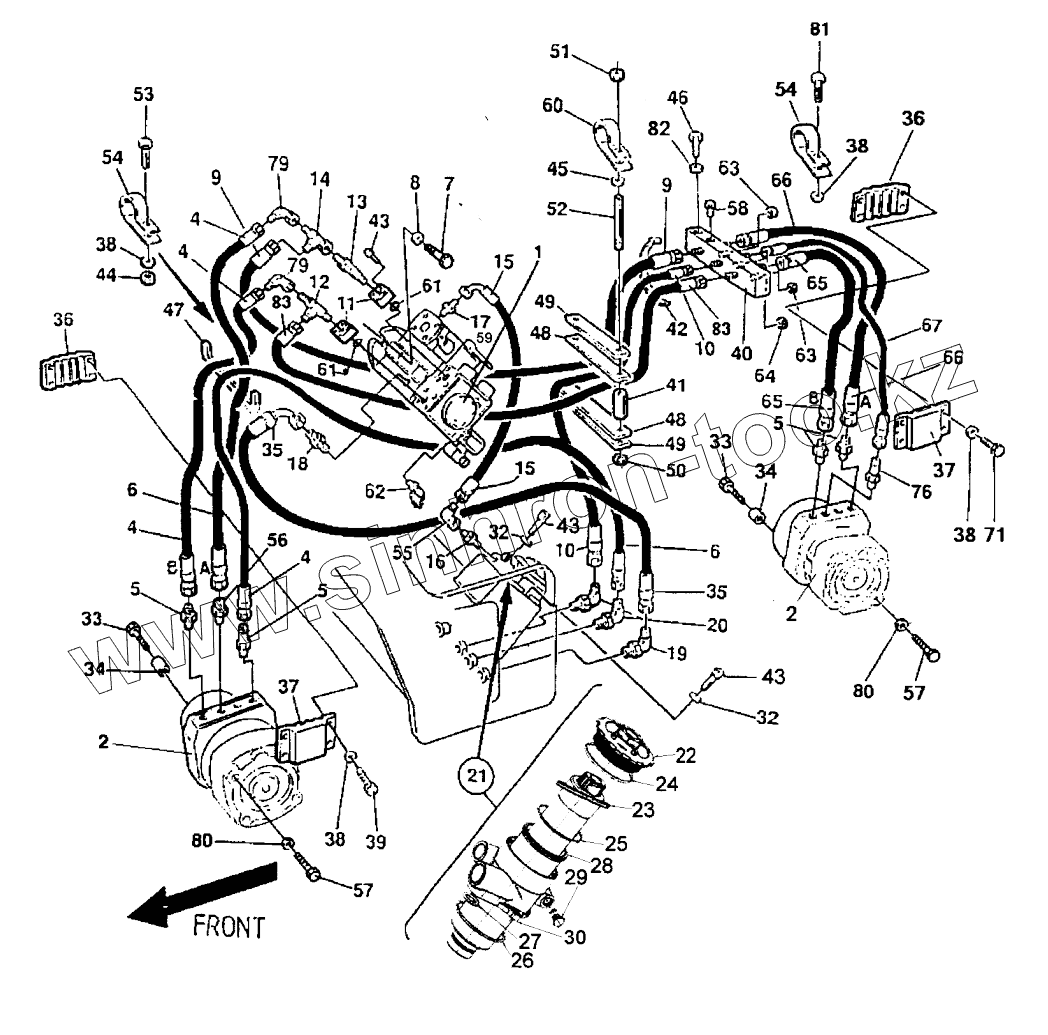

Каталог запасных частей к технике: DYNAPAC Dynapac SCC1300. Propulsion system

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
2
4
4
4
4
5
5
5
6
6
7
8
9
9
10
10
11
12
13
14
15
15
16
17
18
19
20
21
22
24
25
26
27
28
29
32
32
33
33
34
34
35
35
36
36
37
37
38
38
38
38
39
40
41
42
43
43
43
44
45
46
47
48
48
49
49
50
51
52
53
53
54
54
55
56
57
57
58
59
59
60
61
61
62
63
63
64
65
65
66
66
67
71
76
79
79
80
80
81
82
83
83
Позиция на иллюстрации Заводской номер детали Название детали
1 4700372352 Hydraulic pump, propulsion
2 4700357022 Hydraulic motor, propulsion, drum
4 4700483321 Hydraulic hose
5 4700901155 Connector
6 4700483039 Hydraulic hose
7 4700500046 Hex. head screw
8 4700904703 Plain washer
9 4811000084 Hydraulic hose
10 4700482452 Hydraulic hose
11 4700373402 Flange
12 4700234218 Tee-connector
13 4700813444 Elbow 90, O-ring
14 4700334135 Tee-connector
15 4700483118 Hydraulic hose
16 4700334156 Adapter
17 4700901156 Connector
18 4700903925 Connector
19 4700334238 Elbow 90 o-ring
20 4700334235 Elbow 90
21 4812113327 Hydraulic oil filter
22 4812156882 Cover
24 4812156881 O-ring
25 4812156880 O-ring
26 4812156877 O-ring
27 4812156878 O-ring
28 4812113328 Hydraulic oil filter element
29 4812156879 Plug
32 4700904637 Washer
33 4700928022 Screw
34 4700384114 Spacer
35 4700482553 Hydraulic hose
36 4700371313 Hose clamp
37 4700371314 Hose clamp
38 4700904229 Washer
39 4700500021 Hex. screw
40 4812110281 Junction block
41 4700355869 Spacer sleeve
42 4700313102 Cable ties
43 4700508096 Hexagon socket head cap screw
44 4700586003 Hexagon lock nut
45 4700904230 Washer
46 4700500068 Screw
47 4700902379 Edge trim
48 4700357111 Rubber cloth
49 4700357112 Cover plate
50 4700355869 Spacer sleeve
51 4700586018 Lock nut
52 4700902233 Threaded stud
53 4700927637 Hexagon socket countersunk screw
53 4700500047 Hexagon head screw
54 4700921022 Hose clamp
55 4700334155 Elbow 90
56 4700925723 Connector
57 4700947698 Hex. head screw
58 4700232070 Plug
59 4812118374 Control arm
59 4812113889 Control arm
60 4700921099 Clamp
61 4700813443 O-ring
62 4700901157 Measuring nipple
63 4700330383 Cap JIC, steel
64 4700230400 Cap
65 4700483165 Hydraulic hose
66 4700482216 Hydraulic hose
67 4700483168 Hydraulic hose
71 4700500021 Hex. screw
76 4700925723 Connector
79 4700334197 Connector elbow 90 JIC
80 4700904232 Steel plain washer
81 4700500053 Hex. screw
82 4700904640 Washer
83 4700483289 Hydraulic hose
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
