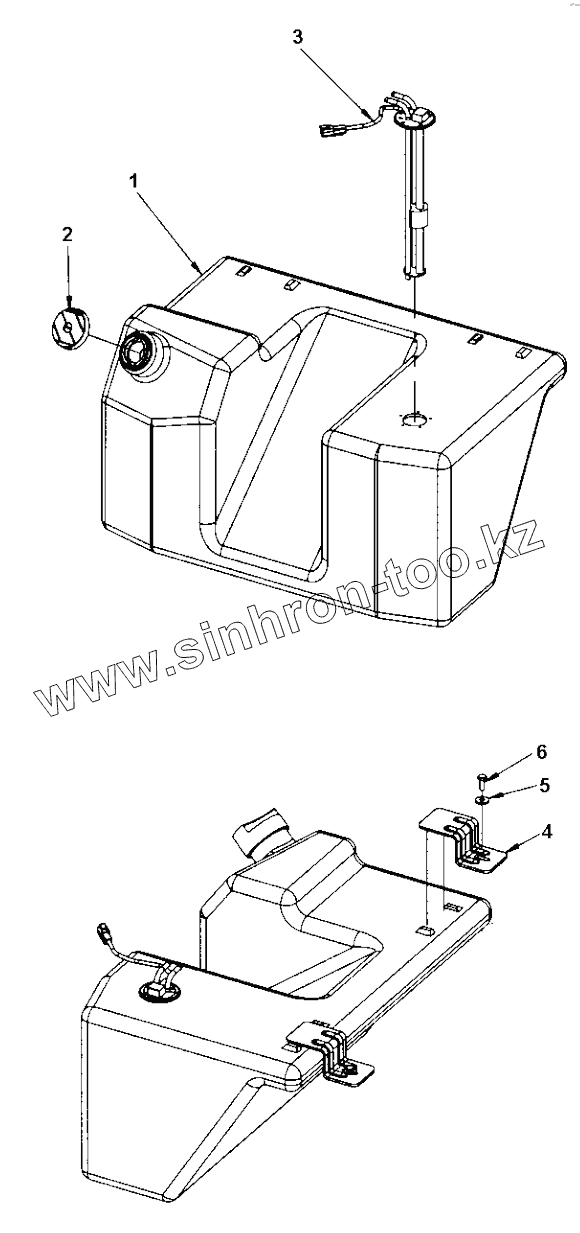

1
2
3
4
5
6
Позиция на иллюстрации
Заводской номер детали
Название детали
4700945753
4700945753
Key 2PCS 921
1
4812113207
Fuel tank
2
4700394253
Fuel cap
3
4700387552
Level gauge
4
4700357466
Holder plate
5
4700904640
Washer
6
4700500053
Hex. screw
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
