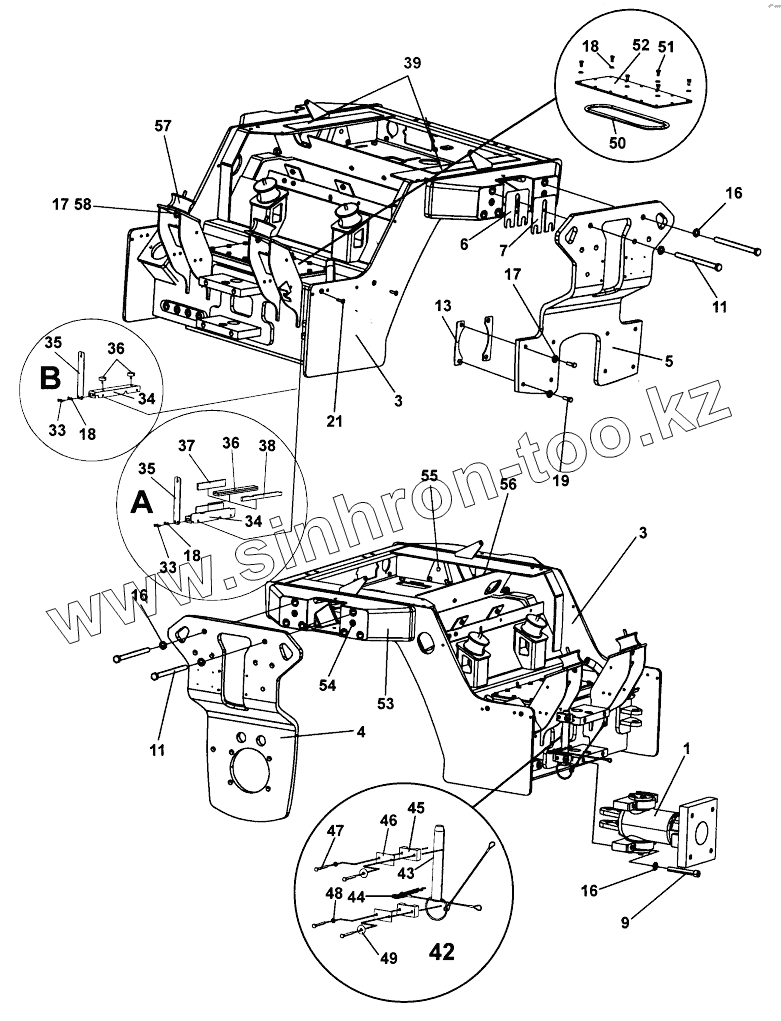

Каталог запасных частей к технике: DYNAPAC Dynapac SCC1300. Frame, front
1
3
3
4
5
6
7
9
11
11
13
16
16
16
17
17
18
18
18
19
21
33
33
34
34
34
34
34
35
35
36
36
36
36
36
37
38
39
42
43
44
45
46
47
48
49
50
51
52
53
53
54
55
56
57
58
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | SteeringHitch | Steering hitch | |
| 3 | 4812111155 | Frame, front | |
| 4 | 4812112442 | Fork | |
| 5 | 4812112444 | Fork | |
| 6 | 4700357222 | Shim | |
| 7 | 4700357221 | Shim | |
| 9 | 4700902100 | Screw | |
| 11 | 4700500272 | Screw | |
| 13 | 4700383436 | Holder | |
| 16 | 4700904232 | Steel plain washer | |
| 17 | 4700904230 | Washer | |
| 18 | 4700904229 | Washer | |
| 19 | 4812110229 | Screw | |
| 21 | 4700902520 | Screw | |
| 33 | 4700500100 | Screw | |
| 34 | 4812113079 | Bracket | |
| 34 | 4812116681 | Bracket | |
| 34 | 4812113079 | Bracket | |
| 34 | 4812116681 | Bracket | |
| 35 | 4812113080 | Bracket | |
| 36 | 4700792601 | Shock absorber | |
| 36 | 4812111890 | Rubber cloth | |
| 36 | 4812111890 | Rubber cloth | |
| 36 | 4700792601 | Shock absorber | |
| 37 | 4812111891 | Rubber cloth | |
| 38 | 4812113654 | Rubber cloth | |
| 39 | 4812113532 | Rubber cloth | |
| 42 | SteeringLock | Steering hitch lock | |
| 43 | 4700357487 | Shaft | |
| 44 | 4700357489 | Hair pin | |
| 45 | 4700902171 | Clamp | |
| 46 | 4700902172 | Cover plate | |
| 47 | 4700500016 | Screw | |
| 48 | 4700600004 | Washer | |
| 49 | 4700615076 | Washer | |
| 50 | 4700349880 | O-ring | |
| 51 | 4700500019 | Hex. screw | |
| 52 | 4700349879 | Cover | |
| 53 | 4700357217 | Spacer block | |
| 53 | 4812120471 | Spacer block | |
| 54 | 4700902376 | Screw | |
| 55 | 4700393540 | Threaded plate | |
| 56 | 4700396847 | Threaded plate | |
| 57 | 4812113018 | Shock absorber | |
| 58 | 4700586018 | Lock nut |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
