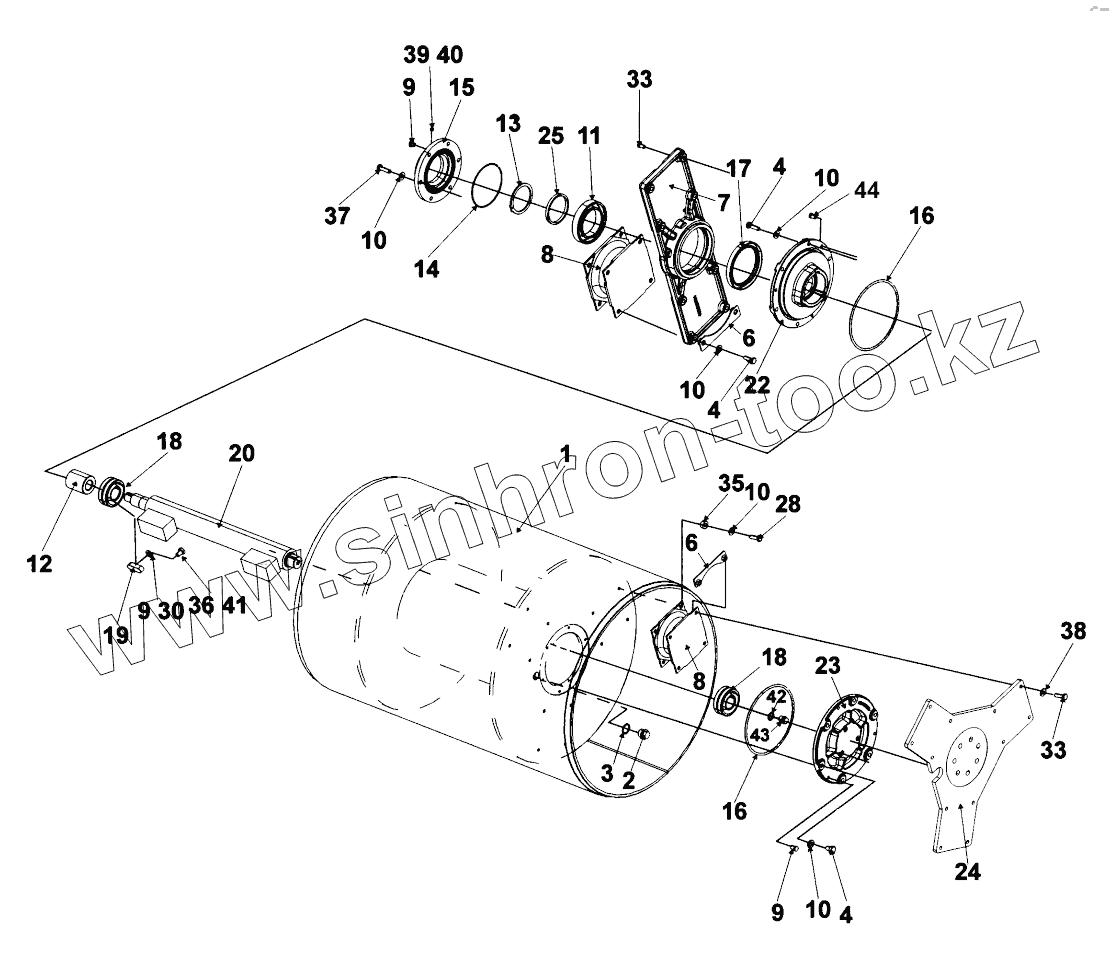

Каталог запасных частей к технике: DYNAPAC Dynapac SCC1300. Drum
1
2
3
4
4
4
6
6
7
8
8
9
9
9
10
10
10
10
10
11
12
13
14
15
16
16
17
18
18
19
20
22
23
24
25
28
30
33
33
35
36
37
38
39
40
41
42
43
44
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4700391929 | 4700391929 | Rubber cross | |
| 1 | 4700357154 | Drum | |
| 2 | 4700343744 | Magnetic plug | |
| 3 | 4700162017 | Seal ring | |
| 4 | 4700500030 | Hexagon head screw | |
| 6 | 4700383436 | Holder | |
| 7 | 4812118764 | Bearing housing | |
| 8 | 4700450122 | Shock absorber | |
| 9 | 4700903287 | Plug | |
| 10 | 4700904230 | Washer | |
| 11 | 4700397357 | Ball bearing | |
| 12 | 4700357159 | Coupling | |
| 13 | 4700903154 | Retaining ring | |
| 14 | 4700160214 | O-ring | |
| 15 | 4700358795 | Adapter | |
| 16 | 4700923951 | O-ring | |
| 17 | 4700163049 | Sealing | |
| 18 | 4700904258 | Spherical roller bearing | |
| 19 | 4700350029 | Key | |
| 20 | 4700373733 | Eccentric shaft | |
| 22 | 4812118694 | Bearing housing | |
| 23 | 4812118692 | Bearing housing | |
| 24 | 4700357160 | Drive disc | |
| 25 | 4700357114 | Spacer ring | |
| 28 | 4812110640 | Hexagon socket head cap screw | |
| 30 | 4700904228 | Steel plain washer | |
| 33 | 4812110444 | Hexagon head screw Tuflok | |
| 35 | 4812110346 | Spacer | |
| 36 | 4700343490 | Air breather | |
| 37 | 4812110620 | Hexagon head screw | |
| 38 | 4700904231 | Washer | |
| 39 | 4700162009 | Seal ring | |
| 40 | 4700902098 | Screw | |
| 41 | 4700500044 | Screw | |
| 42 | 4700162011 | Washer, sealing | |
| 43 | 4700232143 | Plug | |
| 44 | 4700527001 | Drive screw |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
