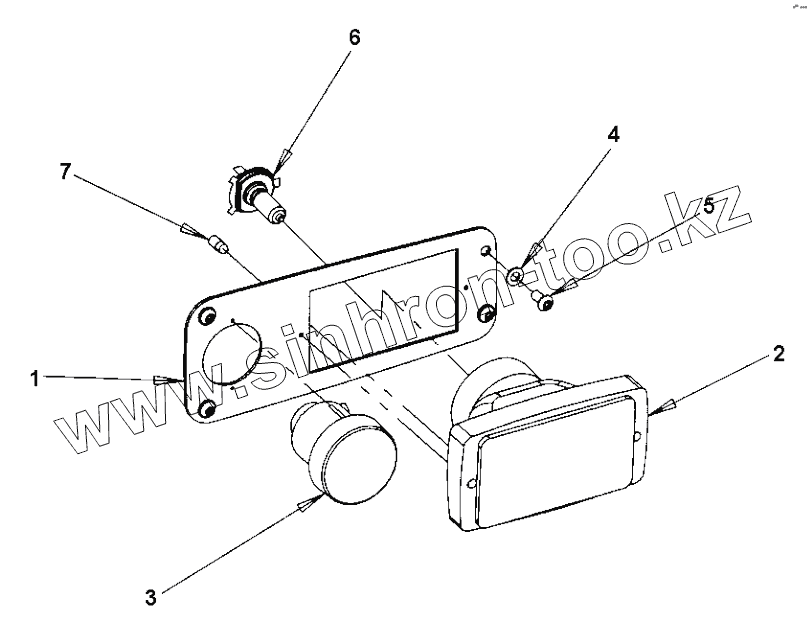

Каталог запасных частей к технике: DYNAPAC Dynapac SCC1300. Driving lights Front

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано CA1400 (2016) CA2500D (2016) CA2500D (2018) CA2500D-PD (2018) CA250D (2011) CA252D (2008) CA2800D (2017) CA3500D (2016) CA4000D (2017) CA4000D (2020) CA4600D (2019) CA5500D (2015) CA610PD (2014) CA6500 (2018) CC1000 (2019) CC1100CC (2015) CC1200C Plus (2015) CC1200C VI (2018) CC1200CC (2018) CC125 (2015) CC1250 (2015) CC1300 (2018) CC1300C (2015) CC1300C (2016) CC2200 (2018) CC2200 (2020) CC2300C (2018) CC3300 (2018) CC4000 VI (2018) CC4200C VI (2020) CC5200C (2018) CC6200 VI (2020) CC800 (2019) CC900 (2018) CC900S (2018) CG2300 (2018) CP142 (2015) CP275 (2014) Dynapac CA1500 (2017) Dynapac CA2500 (2012) Dynapac CA302D (2008) Dynapac CA302D (2010) Dynapac CA5000D (2017) Dynapac CC142 (2009) Dynapac CC2200C (2015) Dynapac CC224HF (2012) Dynapac CC322 (2008) Dynapac CC422 (2010) Dynapac CC5200 (2014) Dynapac CC5200 (2017) Dynapac CC5200 (2017) Dynapac CC5200 VI (2017) Dynapac CC800 (2013) Dynapac CC800 (2014) Dynapac F1200C/CS (2018) Dynapac F1200CS/CS (2018) Dynapac F1800C (2018) Dynapac F181C (2010) Dynapac PL2000LS (2010) Dynapac PL2000LS (2010) Dynapac PL2000S (2010) Dynapac PL2000S (2010) Dynapac SCC1300 (2014) Dynapac SD2500C (ч. 1) (2018) Dynapac SD2500C (ч. 2) (2018) Dynapac SD2550C (ч. 1) (2018) Dynapac SD2550C (ч. 2) (2018) F2500C (2018) SD2550CS (2015)

Схема > Не выбрано Dynapac CC1300 S/N 10000334x 0A000001-0A012585 Service kits 4812156265 Service kit 50h 4812159563 Service kit 50h Plus 4812156288 Service kit 250 / 750 h 4812159564 Service kit 250/750h Plus 4812156266 Service kit 500h 4812159565 Service kit 500h Plus 4812156268 Service kit 1000 h 4812159595 Service kit 1000h Plus 4812159688 Start-up kit Repair kits 4700938909 Eccentric shaft kit 4700938893 Drum rotation kit 4700938915 Scraper kit (12 mm) 4700938887 Shock absorber kit, drum Steering hitch kit Frame, rear Steering hitch Frame, front Scrapers, STD Scrapers, spring loaded (option) Sprinkler system Up to 0A011344 Sprinkler system From 0A011345 Towing device (option) Drum Drum Engine module 4812110882 Diesel engine Kubota V2203-34 kW Exhaust system Fan Air filter Expansion tank Up to 0A011344 Expansion tank From 0A011345 Water cooler From 0A009071, 0A009073 Up to 0A009077 Water cooler From 0A009072, 0A009078 Up to 0A012542 Water cooler From 0A012543 Engine hood Up to 0A007894 4812115507 Engine hood, cpl From 0A007895 Up to 0A011344 4812118164 Engine hood, cpl From 0A011345 Casing Up to 0A007894 4812115561 Casing From 0A007895 Fuel system Cooler hoses Up to 0A012542 Cooler hoses From 0A012543 Air hoses Up to 0A011344 Air hoses From 0A011345 Fuel hoses Propulsion system 4812110281 Junction block Vibration system 4812112054 Hydraulic pump 4700391271 Vibration motor Vibration shut-off Front drum (option) Steering system 4700374603 Steering cylinder Brake system Flow divider (option) Horn module Battery module Battery disconnector Up to 0A011521 Battery disconnector From 0A011522 Cable harness Working lights front Working light rear Working light (option) rear Casing rear Cover plate rear Rotating beacon for ROPS (option) Rotating beacon for ROPS ignition controlled (option) Rotating beacon, without rops (option) Driving lights Front RH (option) Driving lights Front Driving lights Rear (option) Driving lights Front LH (option) Driving lights Front Direction indicator (option) Back-up alarm Platform module Platform module Instrument panel module Up to 0A0010967 Instrument panel module From 0A0010968 Steering wheel Control module Standard ECU module Forward-Reverse control module 4812113676 Forward and reverse control handle Forward-reverse control left (option) Cover plate, Dual F&R-control left side Throttle control, cpl Arm rests, seat belt, laterally adjusting Step (option) Driver seat, Std Driver seat, Luxury (option) Driver's seat, without armrests (option) Seat belt module 3" Seat belt module 2" Rear view mirror (option) ROPS, foldable (option) Rops (option) Canopy (option) Decals Fire extinguisher Tool equipment SMV-sign and Licence plate Brake release, high torque drum drive Brake release, propulsion motor

1

2

3

4

5

6

7

Позиция на иллюстрации	Заводской номер детали		Название детали
1	4812111951		Light bracket
2	4700791951		Headlight right hand asym. with parking light
3	4700791953		Direction indicator
4	4700904229		Washer
5	4700904956		Screw
6	4700900790		Bulb
7	4700985012		Bulb

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
