Brake release, high torque drum drive
Brake release, propulsion motor

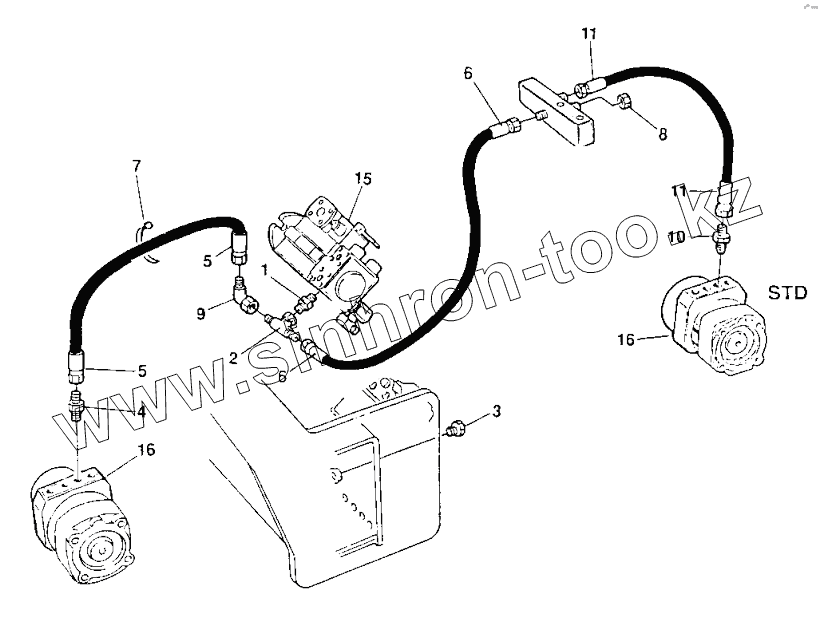

1
2
4
5
5
6
6
7
8
9
10
11
11
15
16
16
Позиция на иллюстрации
Заводской номер детали
Название детали
1
4700334463
Connector
2
4700234888
Tee-connector
4
4700902131
Adapter
5
4700482930
Hydraulic hose
6
4700482830
Hydraulic hose
7
4700313102
Cable ties
8
4700230400
Cap
9
4700334524
Connector
10
4700902131
Adapter
11
4700483171
Hydraulic hose
15
4700372352
Hydraulic pump, propulsion
16
4700357022
Hydraulic motor, propulsion, drum
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
